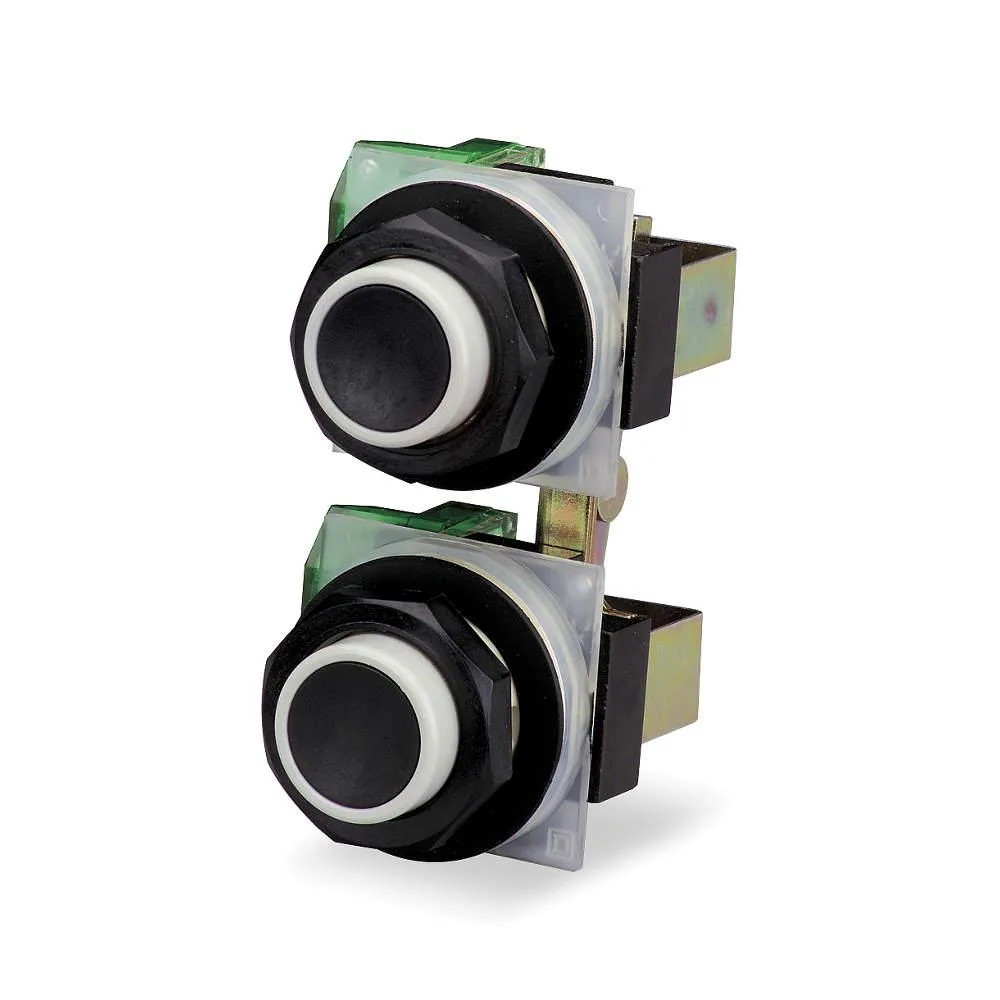

Black 30 mm pendant push button with two extended operators, IP66 rated

SQUARE D

SQUARE D 9001SKRU11 Pendant Push Button 30 mm 1NO/1NC Black IP66

SKU CH-PPG5-4K4CX

30 mm pendant push button with two operators, 1NO/1NC contacts rated 10 A at 600 V and IP66 protection

  • TypeIndustrial Electrical Controls & Automation
  • Size30 mm
  • 30 mm pendant button fits compact control stations
  • Two operators with maintained action for clear on/off control
  • 1NO/1NC contacts rated 10 A at 600 V for reliable switching
  • IP66 enclosure resists dust and powerful water jets
  • Meets CSA 22.2 No. 14, IEC 60947 series, UL 508, REACH and RoHS

30 mm Pendant Push Button

The Square D 9001SKRU11 is a 30 mm pendant push button designed for industrial electrical control panels. It provides two maintained operators with a 1NO/1NC contact configuration rated at 10A at 600V. The black plastic head carries an IP66 rating for dust and water ingress protection. This device suits maintenance engineers and panel builders wiring pendant stations or machinery controls.

Panel Integration

The unit mounts in a standard 30 mm cut-out and uses screw-clamp terminals for secure wiring without special tools. Its maintained action on both operators holds the circuit state until pressed again, freeing the operator from continuous pressure. Compliance with CSA C22.2 No. 14, UL 508 and IEC 60947 standards supports acceptance in North American and international panels. No legend plate is included, so labelling must be sourced separately.

Sustained Operation

The IP66 seal maintains protection during prolonged exposure to dust, wash-down jets or humid environments. Contact blocks rated 10A at 600V handle continuous industrial loads without derating. Plastic head material resists corrosion and impact in harsh settings. The device is not suited for applications requiring momentary action, illuminated operators or higher contact counts.

Highlights

  • 30 mm pendant button fits compact control stations
  • Two operators with maintained action for clear on/off control
  • 1NO/1NC contacts rated 10 A at 600 V for reliable switching
  • IP66 enclosure resists dust and powerful water jets
  • Meets CSA 22.2 No. 14, IEC 60947 series, UL 508, REACH and RoHS

Specifications

BrandSQUARE D
TypeIndustrial Electrical Controls & Automation
Size30 mm

Questions about this item

How many operations can the 1NO/1NC contacts handle at the 10A 600V rating before wear becomes the limiting factor?

The contact blocks are rated for 10 amps at 600 volts AC under the UL 508 and IEC 60947-5-1 standards; mechanical endurance for this 30 mm operator series typically exceeds one million cycles, while electrical life at full load is lower and depends on the application duty cycle.

What temperature rise should I expect inside the enclosure when two operators run continuously at 10A each?

With an IP66 seal and screw-clamp terminals, heat dissipation relies on the pendant housing; each contact block carries 10A at 600V, so sustained dual-operation will warm the interior — ensure the enclosure volume and ambient temperature keep the internal air below the 60 °C rating common for these components.

Which mounting hardware and legend plates are required to install this 30 mm pendant station?

The unit fits a standard 30 mm panel cut-out and uses screw-clamp terminals for wiring; you must supply the mounting screws, a suitable pendant enclosure rated at least IP66, and any legend plates or labels needed for your application.
