Square transparent relay socket with 14 flat pins and LED indicator

SQUARE D

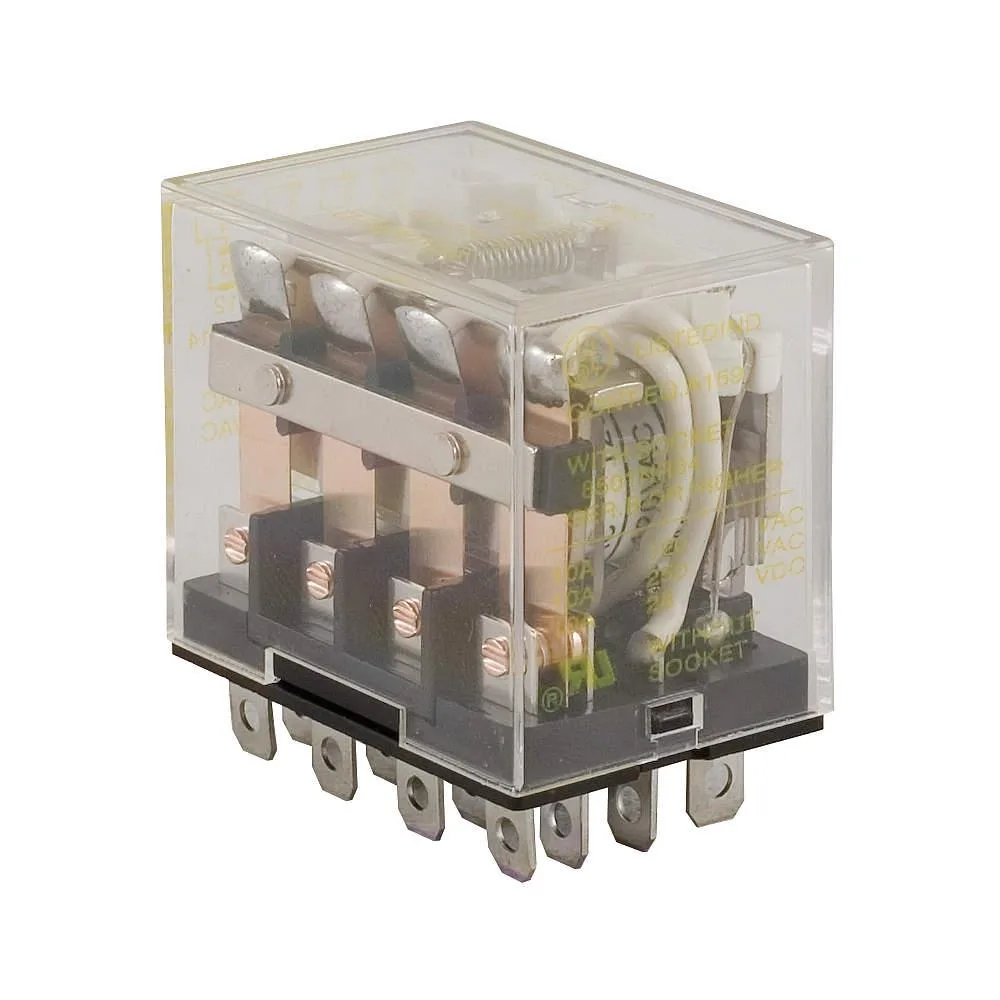

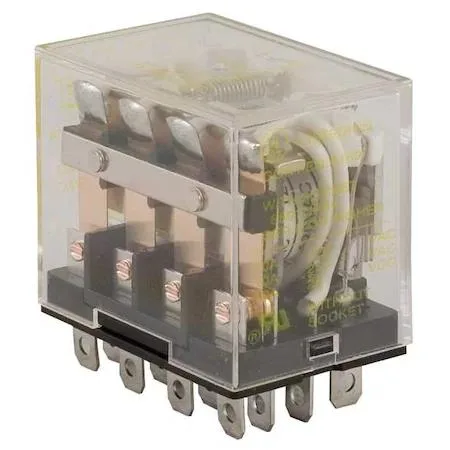

SQUARE D 8501RS44P14V20 Relay Socket 14 Pin 15 A 120V AC

SKU CH-XW0K-B8T18

14-pin relay socket rated 15 A at 120 V AC with LED indicator and mechanical flag

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • 14-pin socket fits standard relay modules
  • 15 A rating handles demanding control circuits
  • LED status indicator shows coil state at a glance
  • Quick-connect flat pins speed up panel wiring
  • Enclosed body protects contacts in harsh environments

Square 14-Pin Relay Socket for 120V AC

This SQUARE D socket accepts a general-purpose relay with a 14-pin flat configuration. It is rated for 15 A and a 120V AC coil voltage. The enclosed body includes an LED status indicator and a mechanical flag for visual confirmation. It suits control panels and automation systems requiring a secure quick-connect base.

For 15 A switching with LED status indication

This socket suits applications needing a 4PDT contact form rated at 10 A for both 277V AC and 28V DC. It also supports 1/2 hp at 120V AC and 1 hp at 240V AC. Builders who need a push-to-test button or a different pin count should look at other socket types.

14 flat pins on 0.18 in spacing

The socket provides 14 flat pins with a width of 0.18 in for quick-connection wiring. This pin layout and spacing determine relay compatibility. Verify that the mating relay matches this exact pin geometry before purchase.

Highlights

  • 14-pin socket fits standard relay modules
  • 15 A rating handles demanding control circuits
  • LED status indicator shows coil state at a glance
  • Quick-connect flat pins speed up panel wiring
  • Enclosed body protects contacts in harsh environments

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Does the 15 A relay socket run hot when it carries a full load all day?

The socket body measures 1.07 in deep by 1.54 in high and is enclosed; heat rise will depend on the 15 A rating and the ambient temperature inside the panel.

What mating relay pins are required for the 14 flat pins on this base?

The socket accepts a 4PDT relay with 14 flat pins at 0.18 in width and a 120V AC coil voltage.

Will the LED indicator still show status if I pair this socket with an older 10 A @ 28V DC relay?

The built-in LED indicator and mechanical flag operate from the socket side, so they function with any compatible 14-pin relay regardless of the contact rating.
