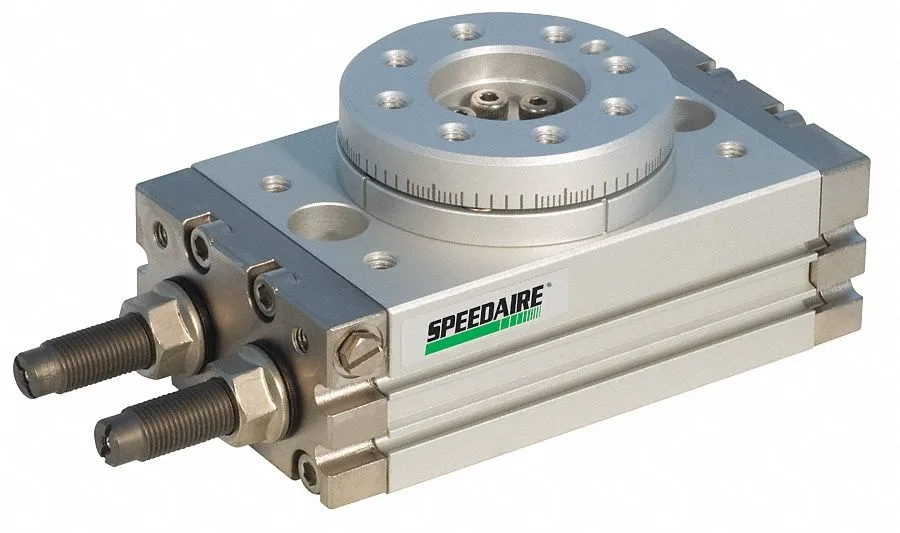

Anodized aluminium rotary table with rack and pinion drive, 10 mm bore, 190 degree rotation

SPEEDAIRE

SPEEDAIRE Rotary Table Rack and Pinion 10mm Bore 190 Deg

SKU CH-44CZ-C1N5C

Anodised aluminium rotary table with rack-and-pinion drive, 10 mm bore, 52 to 190 degree rotation and 1.78 N-m torque

  • TypeRack and Pinion
  • Precise 190-degree rotation for accurate positioning
  • 10 mm bore fits standard shafts directly
  • 78 N-m torque handles demanding loads
  • Rubber cushion absorbs shock at end stops
  • Anodized aluminum body resists corrosion and wear

Compact Rotary Table for Precision Indexing

The SPEEDAIRE rack-and-pinion rotary table provides a 10 mm bore and a maximum rotation of 190 degrees. It operates on compressed air with a maximum pressure of 1 MPa through an M5 x 0.8 metric inlet. The anodized aluminum alloy body stands 34 mm tall and measures 109.7 mm overall length.

Pneumatic Integration and Mounting Freedom

Supply clean, dry air at up to 1 MPa to the M5 port to drive the mechanism. The rubber cushion absorbs impact at the end of travel while the anodized finish resists corrosion. A minimum rotation angle of 52 degrees sets the lower limit of motion. The aluminum alloy bearing retainer keeps the assembly rigid without adding a separate support structure.

Suited for Light-Duty Automation Cells

This unit fits applications needing up to 1.78 N-m of output torque and 0.01 J of allowable kinetic energy. Builders requiring continuous rotation beyond 190 degrees or higher torque for heavy workpieces should look elsewhere. Operations demanding a larger bore diameter or a different inlet thread standard will need an alternative rotary actuator.

Highlights

  • Precise 190-degree rotation for accurate positioning
  • 10 mm bore fits standard shafts directly
  • 78 N-m torque handles demanding loads
  • Rubber cushion absorbs shock at end stops
  • Anodized aluminum body resists corrosion and wear

Specifications

BrandSpeedaire
TypeRack and Pinion

Questions about this item

How many degrees of rotation can the table achieve before hitting its maximum limit?

The rotary table has a maximum rotation angle of 190 degrees and a minimum of 52 degrees.

What is the highest torque the unit can deliver during continuous operation?

The maximum output torque is 1.78 N-m at a maximum operating pressure of 1 MPa.

What size air fitting and bore must my supply system provide for this table?

The inlet size is M5 x 0.8 metric standard and the bore diameter is 10 mm.
