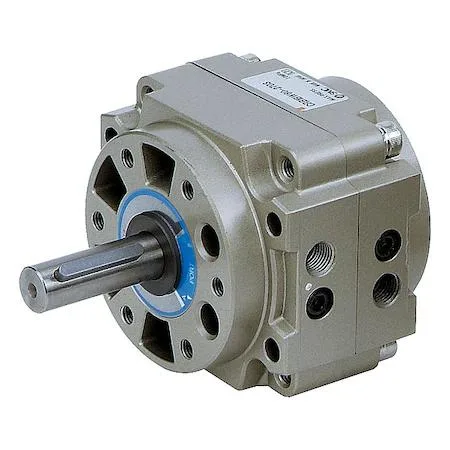

Silver metal rotary actuator with single vane, 50 mm bore, 12 mm shaft, BSPT inlet, rubber cushion, magnetic piston, 0.83 kg

SPEEDAIRE

SPEEDAIRE Rotary Actuator 90 Deg 50mm Bore

SKU CH-9CYV-1RWAE

A vane-style rotary actuator delivering 24.2 N-m torque through 90 degrees of rotation with a 50 mm bore and 12 mm shaft

  • TypeVane Style
  • 90° rotation enables precise quarter-turn automation
  • 2 N·m torque delivers strong rotary force
  • 50 mm bore with 12 mm shaft fits compact installations
  • Rubber cushioning protects the actuator at end-of-stroke
  • Magnetic piston allows external position sensing

SPEEDAIRE 90 Degree Vane Actuator

The SPEEDAIRE rotary actuator delivers 90 degrees of rotation using a single-vane design with a 50 mm bore. It produces a maximum output torque of 24.2 N-m at a maximum operating pressure of 145 psi. The unit weighs 0.83 kg and features a 12 mm diameter shaft extending 39.5 mm. It operates on compressed air within a temperature range of 41 to 140 degrees F.

Rubber Cushion and Magnetic Piston

A rubber cushion softens the motion at the end of each stroke to reduce mechanical shock. The magnetic piston allows external position sensors to detect the actuator's state without physical contact. Air enters through a 1/8 inch BSPT inlet and the assembly meets RoHS compliance standards for restricted substances.

Suited for 90 Degree Air Automation

This actuator suits automation tasks requiring a precise 90 degree rotary motion driven by compressed air. It is not intended for applications needing continuous rotation or rotation angles beyond 90 degrees. Builds requiring higher torque output or a different bore size should consider alternative specifications.

Highlights

  • 90° rotation enables precise quarter-turn automation
  • 2 N·m torque delivers strong rotary force
  • 50 mm bore with 12 mm shaft fits compact installations
  • Rubber cushioning protects the actuator at end-of-stroke
  • Magnetic piston allows external position sensing

Specifications

BrandSpeedaire
TypeVane Style

Questions about this item

Will the rubber cushion or vane need replacement after extended cycling?

The unit uses a rubber cushion and single-vane design rated for 90-degree rotation; both are wear items that typically require inspection after high-cycle service.

At 145 psi continuous pressure, will torque drop off before the 24.2 N-m rating?

Maximum output torque is 24.2 N-m at the 145 psi pressure limit; sustained operation at that pressure delivers the rated torque until temperature reaches 140 °F.

How much heat does the 0.83 kg body generate during all-day operation at 145 psi?

Operating temperature range is 41 °F to 140 °F; the aluminium body dissipates heat passively, so surface temperature stays within that window during continuous duty.
