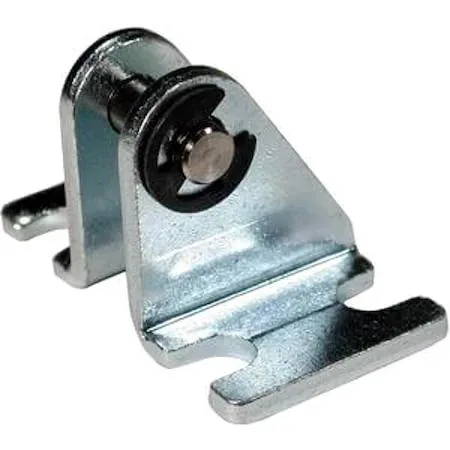

Steel rear pivot bracket with multiple mounting holes

SPEEDAIRE

SPEEDAIRE NCM-PC150 Rear Pivot Bracket

SKU CH-H0BN-QXQPZ

Steel rear pivot bracket fits NCM-series cylinders with bore sizes from 3/4 in to 1 1/2 in

  • Fits NCM series cylinders for secure rear mounting
  • Steel body withstands repeated pneumatic cycles
  • Five bore sizes covered by one bracket
  • Weighs only 0.02 lb for minimal load
  • Compatible with ten Grainger part numbers

SPEEDAIRE NCM-PC150 Rear Pivot Bracket

This SPEEDAIRE NCM-PC150 rear pivot bracket mounts compatible pneumatic cylinders at the rear cap. It fits bore diameters of 3/4 in, 7/8 in, 1 1/16 in, 1 1/4 in, and 1 1/2 in across the NCM series. The steel body measures 1 in overall width and 1 1/2 in overall height. It suits maintenance teams standardising on SMC NCM components.

Installation notes

The bracket bolts directly to the cylinder rear cap using existing mounting threads. No special tools are required beyond standard hex keys. Misalignment occurs when the wrong bore variant is selected; verify the cylinder bore before fitting. The 0.02 lb weight adds negligible mass to the assembly.

Compatibility check

Confirm your cylinder belongs to the SMC NCM series and matches one of the listed bore sizes. Cross-reference Grainger part numbers 5TGU0 through 5TGU9, 5TGV0, 5TGV1, 5TGW4, 5TGW5, or 5TGW6. This bracket does not fit front-cap or centre-trunnion mounting patterns.

Highlights

  • Fits NCM series cylinders for secure rear mounting
  • Steel body withstands repeated pneumatic cycles
  • Five bore sizes covered by one bracket
  • Weighs only 0.02 lb for minimal load
  • Compatible with ten Grainger part numbers

Specifications

BrandSPEEDAIRE

Questions about this item

How do I confirm the SPEEDAIRE NCM-PC150 rear pivot bracket is correctly installed?

Verify the bracket aligns with the cylinder rear mount and secures firmly to the 1 in overall width and 1 1/2 in overall height dimensions.

What components are included with the SPEEDAIRE NCM-PC150 and what must be purchased separately?

The package includes the steel rear pivot bracket weighing 0.02 lb; mounting hardware and compatible SMC NCM series cylinders are sold separately.

Which bore diameter version of the SPEEDAIRE NCM-PC150 rear pivot bracket should I select?

Choose the bracket matching your cylinder bore: 3/4 in, 7/8 in, 1 1/16 in, 1 1/4 in, or 1 1/2 in, all compatible with the NCM series.
