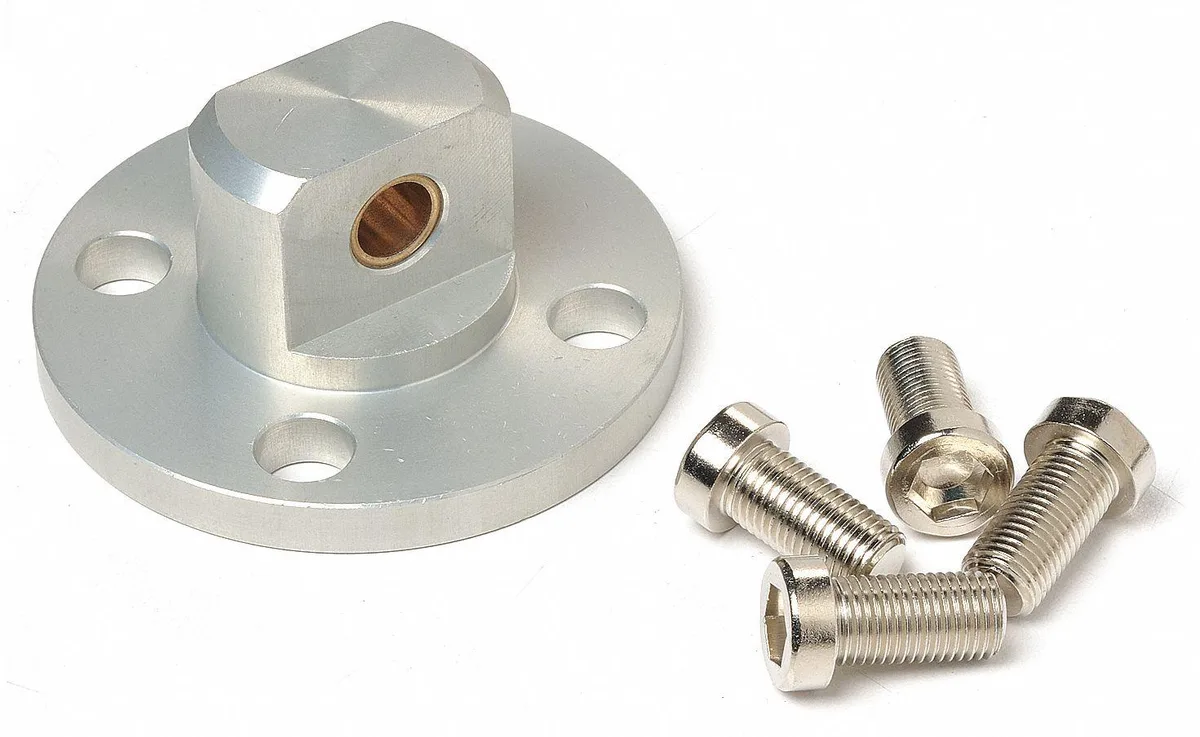

Aluminium single rear clevis flange with screws for 63 mm bore

SPEEDAIRE

SPEEDAIRE NCG-C063 Single Rear Clevis Flange 63 mm Screws

SKU CH-1S5T-3WKJD

A single rear clevis flange bracket for 63 mm bore pneumatic cylinders, includes mounting screws

  • Flange mount fits 63 mm bore cylinders
  • Aluminium body keeps weight at .37 lb
  • Single rear clevis enables pivot motion
  • Includes screws for immediate assembly
  • Compatible with SMC NCG series actuators

Mounting Bracket for 63 mm Cylinder

The SPEEDAIRE NCG-C063 is a single rear clevis flange designed to mount pneumatic cylinders with a 63 mm bore. It suits maintenance technicians and OEM assemblers who need a direct replacement bracket for SMC NCG series actuators. The aluminium body keeps the assembly light while providing a secure pivot point for linear motion applications.

Capacity and Fit

The bracket matches a 63 mm bore diameter and includes the necessary screws for immediate installation. It is confirmed compatible with Grainger part numbers 5TJN5 through 5TJR3, covering a wide range of existing NCG cylinders. The flange design handles standard pneumatic loads for this bore size, but is not intended for side-load or heavy radial force applications beyond the cylinder's own rating.

Critical Specification

The decisive detail is the 63 mm bore compatibility combined with the SMC NCG series match. If your cylinder uses a different bore or a different series, this bracket will not align or fasten correctly. Always verify the cylinder series and bore diameter before ordering to avoid fitment issues.

Highlights

  • Flange mount fits 63 mm bore cylinders
  • Aluminium body keeps weight at .37 lb
  • Single rear clevis enables pivot motion
  • Includes screws for immediate assembly
  • Compatible with SMC NCG series actuators

Specifications

BrandSPEEDAIRE

Questions about this item

Will the 63 mm flange fit the SMC NCG cylinders I already have?

The bracket is listed as compatible with SMC NCG series cylinders and matches Grainger part numbers 5TJN5 through 5TJR3 for 63 mm bore units.

How can I verify the bracket is mounted correctly after installation?

The flange should sit flush against the cylinder rear cap with all supplied screws tightened evenly and no visible gap at the mounting surface.

Does the package include the mounting screws or do I need to buy them separately?

The product description states that screws are included with the single rear clevis bracket.
