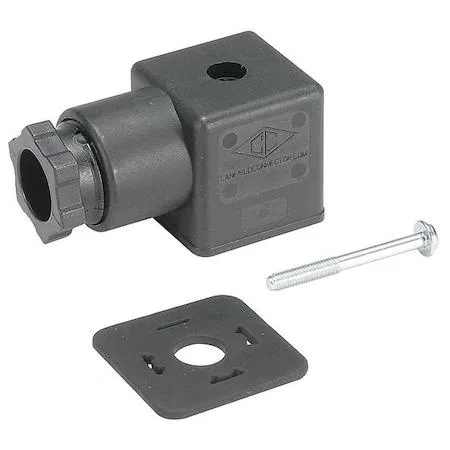

Grey rectangular DIN Type B plug-in connector, 1.18 by 1.06 inches, IP40 rated

SPEEDAIRE

SPEEDAIRE DIN Type B Plug-In Connector 120V AC 24V DC IP40

SKU CH-6WD8-FW2V6

DIN Type B plug-in connector rated for 120 V AC and 24 V DC with IP40 protection, suited for 30 mm solenoid coils

  • TypeDIN Type B
  • DIN Type B standard fits 30 mm solenoid coils
  • Plug-in lead enables quick installation without wiring
  • Dual 120 V AC and 24 V DC voltage rating suits multiple circuits
  • IP40 enclosure protects against solid objects over 1 mm
  • Compact 27 mm height suits tight panel spaces

SPEEDAIRE DIN Type B Connector

This SPEEDAIRE DIN Type B plug-in connector fits 30 mm solenoid coils and follows the DIN 43650A termination pattern. It operates on 120 V AC or 24 V DC and carries an IP40 rating for basic protection. The housing measures 27 mm high, 30 mm wide and 1 21/32 in long for compact installations.

Suits standard 30 mm coils

Installers wiring 30 mm solenoid valves with DIN 43650A sockets will find the correct voltage and pin spacing here. Builders who need an indicating light, integrated strain relief or a higher ingress rating should look at other connectors.

120 V AC and 24 V DC dual voltage

The single specification that decides fit is the dual 120 V AC and 24 V DC rating matched to a DIN 43650A coil termination. Only coils designed for both voltages and that pin layout will work safely with this part.

Highlights

  • DIN Type B standard fits 30 mm solenoid coils
  • Plug-in lead enables quick installation without wiring
  • Dual 120 V AC and 24 V DC voltage rating suits multiple circuits
  • IP40 enclosure protects against solid objects over 1 mm
  • Compact 27 mm height suits tight panel spaces

Specifications

BrandSpeedaire
TypeDIN Type B

Questions about this item

Does the 120V AC / 24V DC DIN Type B connector run hot or draw much power when left energised all day?

The connector is a passive wiring interface rated for 120V AC and 24V DC; it adds no active load, so heat and power draw are negligible during continuous use.

What solenoid coil must I already have for this DIN 43650A plug to fit?

It fits a 30 mm solenoid coil with DIN 43650A termination; the plug matches that coil face and the 30 mm width.

Will this IP40 DIN connector mate with an older DIN 43650A coil I already own?

Yes — the plug follows the DIN 43650A standard, so it will connect to any compatible 30 mm coil using that same termination.
