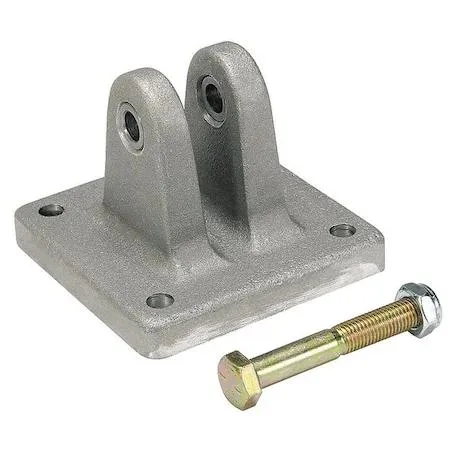

Aluminum clevis bracket with lock nut and pin

SPEEDAIRE

SPEEDAIRE 5VNY4 Clevis Bracket

SKU CH-REEN-VZCCA

Aluminium clevis bracket mounts 2-1/2 in and 3 in bore cylinders, includes lock nut and pin

  • Aluminium construction keeps the bracket light yet rigid
  • Clevis mount accepts 2-1/2 in and 3 in bore cylinders
  • Lock nut and pin supplied for immediate assembly
  • Four-inch overall length suits standard mounting patterns
  • New condition ensures full factory specification and finish

Clevis Bracket for 2-1/2 and 3 Inch Bore Cylinders

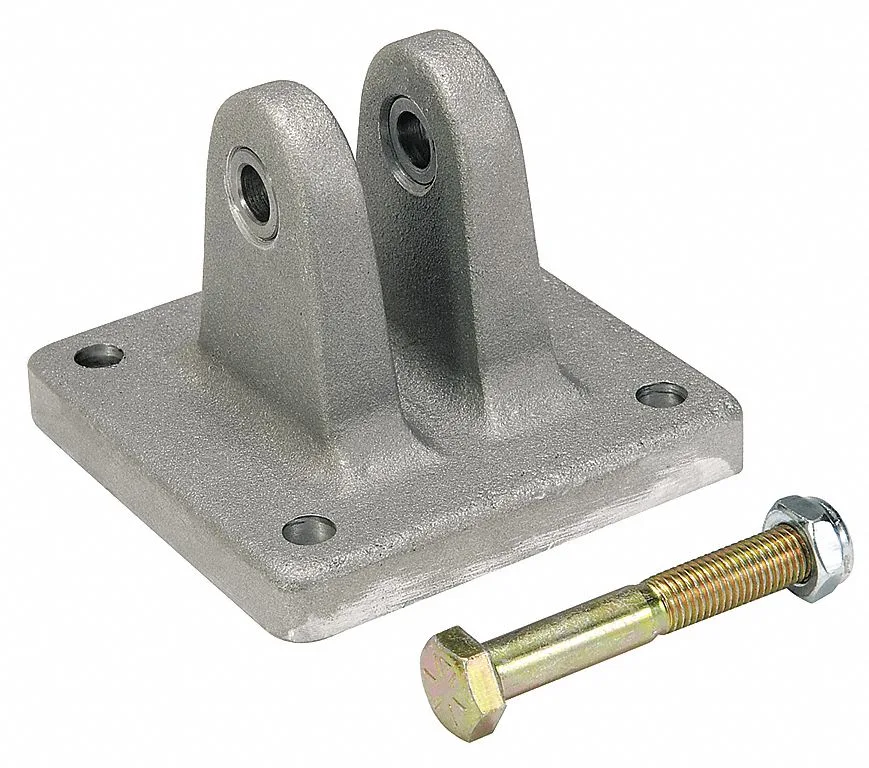

This SPEEDAIRE clevis bracket mounts pneumatic cylinders with bore diameters of 2-1/2 inches or 3 inches. The aluminum body measures four inches in overall length and width with a height of 2-3/8 inches. A lock nut and pin are included for secure installation.

Upgrade from Fixed or Worn Mounting Hardware

Replace fixed eye brackets or damaged clevis mounts when pivoting motion is required for the cylinder rod end. The jump is worth it if the existing hardware cannot accommodate the 3 inch center-to-center hole spacing or if the original steel bracket has corroded.

Check Cylinder Specifications Before Ordering

Verify that the cylinder bore matches the 2-1/2 or 3 inch range and that the rod end accepts a clevis mount with the listed pin dimensions. Confirm the mounting pattern aligns with the 3 inch hole centers and that the aluminum material suits the operating environment.

Highlights

  • Aluminium construction keeps the bracket light yet rigid
  • Clevis mount accepts 2-1/2 in and 3 in bore cylinders
  • Lock nut and pin supplied for immediate assembly
  • Four-inch overall length suits standard mounting patterns
  • New condition ensures full factory specification and finish

Specifications

BrandSPEEDAIRE

Questions about this item

What bore diameters does the 5VNY4 clevis bracket fit?

The bracket is made for cylinders with a 2-1/2 in or 3 in bore diameter.

Which hardware is included so the bracket can be mounted?

A lock nut and a pin are supplied with the bracket for installation.

What part of the bracket will need replacement if the pin wears out?

The supplied pin can be replaced separately when it shows wear.
