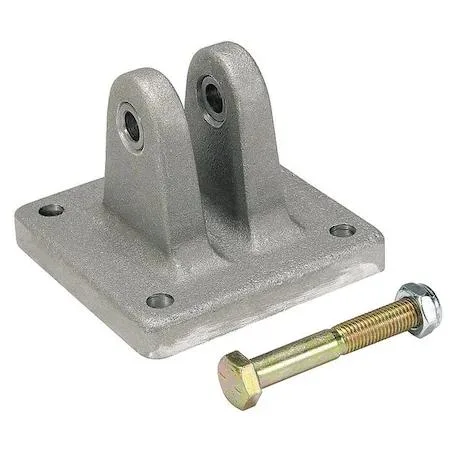

Aluminium clevis bracket 1 1/8 in bore with lock nut and pin

SPEEDAIRE

SPEEDAIRE 5VNY2 Clevis Bracket 1 1/8 in

SKU CH-H3DJ-MSK90

Clevis bracket mounts 1 1/8 in bore cylinders with 1.75 in hole centers and includes lock nut and pin

  • Mounts cylinders securely with clevis design
  • Aluminium body resists corrosion for long service life
  • Lock nut and pin included for complete installation
  • 75 in hole spacing fits Speedaire cylinders
  • New condition ensures reliable performance out of box

Clevis Bracket for 1 1/8 in Bore

This aluminum clevis bracket mounts cylinders with a 1 1/8 inch bore diameter in pneumatic systems. It includes a lock nut and pin for secure attachment to compatible Speedaire equipment. Maintenance technicians and machine builders use it to create a pivoting connection point on linear actuators.

Aluminum Body with Included Hardware

The bracket body is made of aluminum and measures 2 1/4 inches in overall length, width, and height with a mount hole center-to-center width of 1.75 inches. Supplied lock nut and pin simplify installation by providing the necessary fastening components in one package. California Proposition 65 warnings apply for chemicals known to cause cancer and reproductive harm.

1 1/8 Inch Bore Compatibility Decides Fit

The single specification that determines whether this part fits is the 1 1/8 inch cylinder bore diameter. It is designed only for cylinders matching that bore size and the Speedaire brand. Buyers needing a different bore diameter or a different mounting style such as a trunnion or flange cannot use this bracket.

Highlights

  • Mounts cylinders securely with clevis design
  • Aluminium body resists corrosion for long service life
  • Lock nut and pin included for complete installation
  • 75 in hole spacing fits Speedaire cylinders
  • New condition ensures reliable performance out of box

Specifications

BrandSPEEDAIRE

Questions about this item

What bore diameter does the 1 1/8 in clevis bracket fit?

The clevis bracket is designed for a cylinder bore diameter of 1 1/8 in.

What are the overall dimensions and mounting hole spacing of this bracket?

Overall length is 2 1/4 in, overall width is 2 1/4 in, overall height is 1 1/4 in, and the mount hole centre-to-centre width is 1.75 in.

What hardware is included and what is a common installation mistake?

The kit includes a lock nut and pin; a common error is not tightening the lock nut fully so the pin can work loose under vibration.
