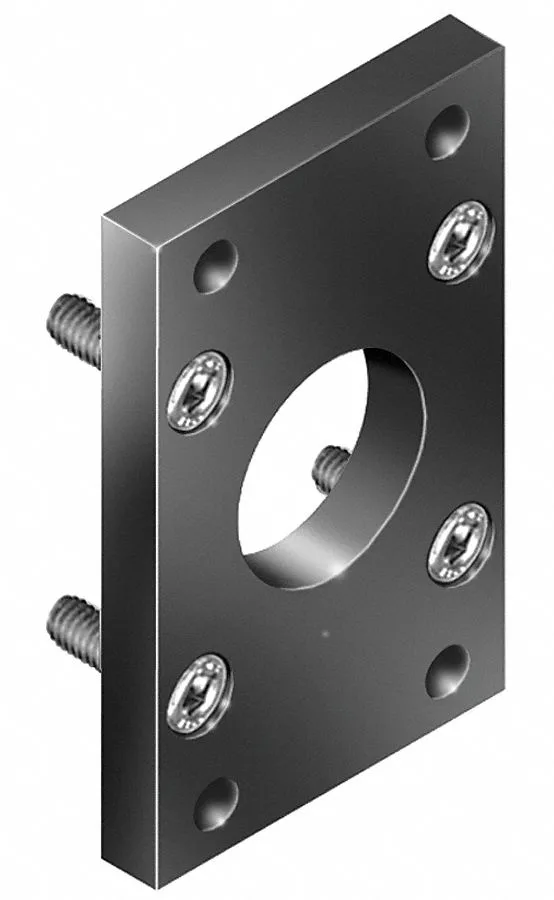

Rectangular aluminum flange bracket with four bolts

SPEEDAIRE

SPEEDAIRE 5VLX8 Cylinder Mounting Hardware Rectangle Flange Bracket

SKU CH-0V3D-K86Q5

Rectangle flange bracket mounts 1 1/2 in bore cylinders with four bolts included

  • Designed for 1 1/2 inch bore cylinders
  • Rectangular flange mount ensures secure attachment
  • Aluminium body resists corrosion in compressed-air systems
  • Includes four bolts for immediate installation
  • Compatible with Speedaire compressors for direct replacement

SPEEDAIRE Flange Bracket for 1 1/2 in Bore

This cylinder mounting bracket is built for SPEEDAIRE air compressors and vacuum pumps. It fits units with a 1 1/2 inch bore diameter and uses a rectangular flange mount type. The aluminium body measures 3 3/8 inches in overall length and 1 1/2 inches in overall height. Four mounting bolts are included for direct installation.

Inch-Series Dimensions and Mount Pattern

The bracket follows inch-system measurements with a 2.75 inch centre-to-centre hole spacing. Overall width is listed as 1/16 inch, defining the flange thickness. Builders working with metric hole patterns or different bore sizes cannot use this part without modification. The aluminium construction suits standard compressed-air environments.

Bore Diameter Determines Fit

The single specification that decides compatibility is the 1 1/2 inch bore diameter. If the cylinder bore differs, the flange will not align with the mounting surface. Verify the existing cylinder bore before ordering to ensure correct fitment.

Highlights

  • Designed for 1 1/2 inch bore cylinders
  • Rectangular flange mount ensures secure attachment
  • Aluminium body resists corrosion in compressed-air systems
  • Includes four bolts for immediate installation
  • Compatible with Speedaire compressors for direct replacement

Specifications

BrandSPEEDAIRE

Questions about this item

Which flange bracket matches a 1 1/2 in bore cylinder?

The SPEEDAIRE 5VLX8 is sized for a 1 1/2 in bore and includes four bolts for direct mounting.

What does the 2.75 in hole spacing mean when I bolt it on?

The mount holes sit 2.75 in apart centre-to-centre, so the bracket aligns with standard flange patterns at that pitch.

How does the aluminium body hold up under compressor vibration?

The aluminium rectangle flange resists corrosion and keeps weight low while the four included bolts clamp the cylinder head securely.
