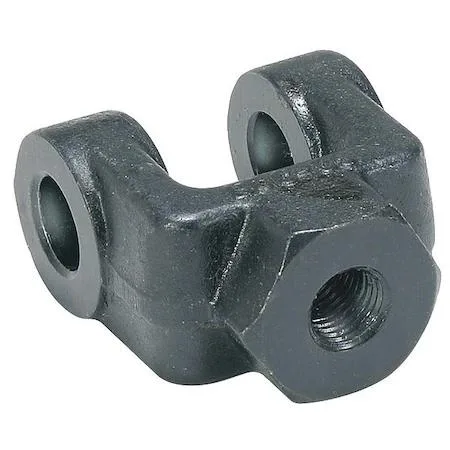

Steel clevis bracket for cylinder mounting, silver-grey finish

SPEEDAIRE

SPEEDAIRE 5VLX7 Cylinder Mounting Hardware Clevis

SKU CH-P4CC-DDZTF

Clevis mounting hardware fits 3-1/4, 4 and 5 inch bore cylinders with a 1.25 inch hole centre

  • Secure cylinder mounting with clevis design
  • Fits 3 1/4, 4 and 5 inch bore diameters
  • Steel body delivers durable industrial performance
  • 25 inch hole centres ensure precise alignment
  • Includes female rod clevis with 3/4 inch thread

Cylinder Mounting Hardware Clevis

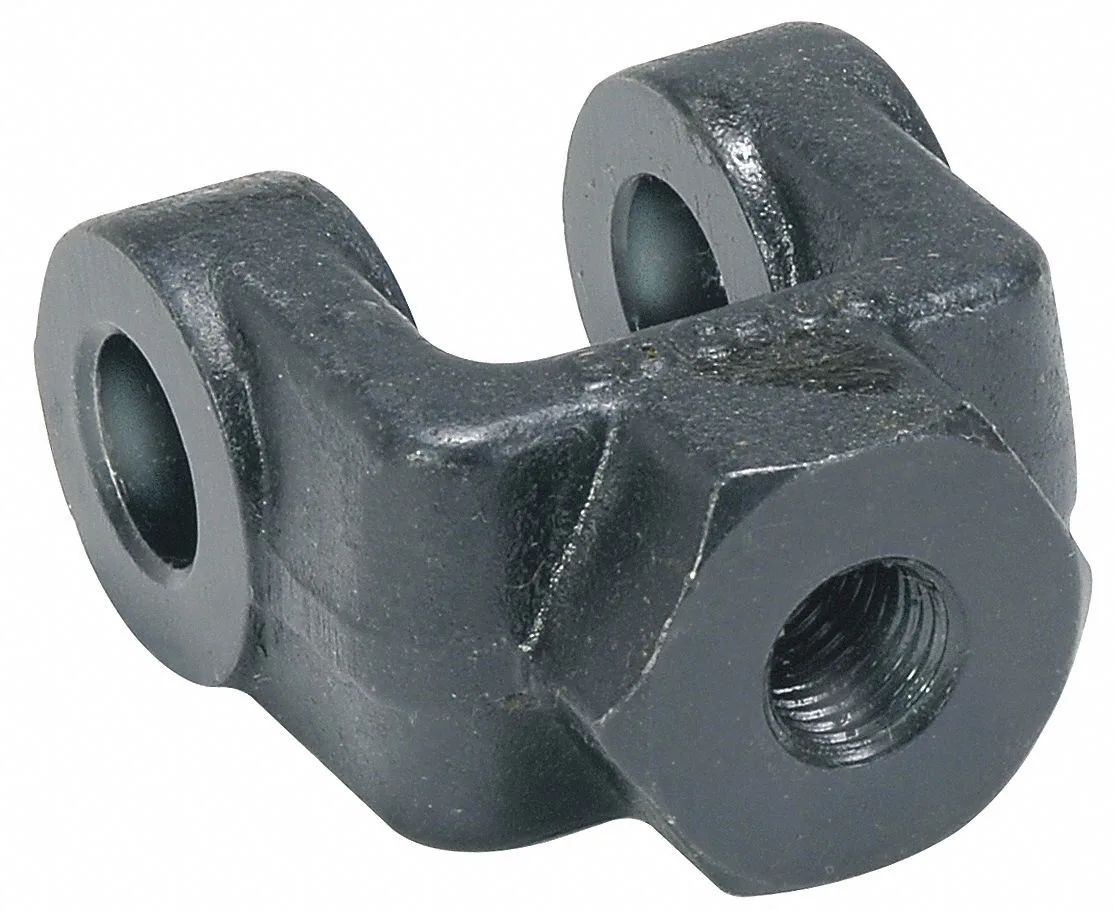

The SPEEDAIRE 5VLX7 is a female rod clevis designed for pneumatic cylinders with bore diameters of three point two five inches, four inches and five inches. It provides a pivoting mount for linear motion systems in industrial and maintenance applications.

Build Integration Requirements

The clevis has an overall length of two and seven eighths inches and a mount hole centre-to-centre width of one point two five inches. Its steel body threads onto a three quarter inch rod, freeing the cylinder to pivot without side loading the piston rod.

Included Components and Compliance

The package supplies the female rod clevis itself and carries California Proposition 65 warnings for chemicals known to cause cancer and reproductive harm. No additional brackets, pins or lubricants are included with this hardware.

Highlights

  • Secure cylinder mounting with clevis design
  • Fits 3 1/4, 4 and 5 inch bore diameters
  • Steel body delivers durable industrial performance
  • 25 inch hole centres ensure precise alignment
  • Includes female rod clevis with 3/4 inch thread

Specifications

BrandSPEEDAIRE

Questions about this item

What is the maximum bore diameter this clevis can mount to?

The clevis fits cylinder bore diameters of 3 1/4 in, 4 in and 5 in.

Does the steel body heat up during continuous pneumatic cycling?

The steel body conducts heat from the cylinder but does not generate its own heat during operation.

What thread size must the piston rod have for this clevis to connect?

The female rod clevis requires a 3/4 in thread on the piston rod.
