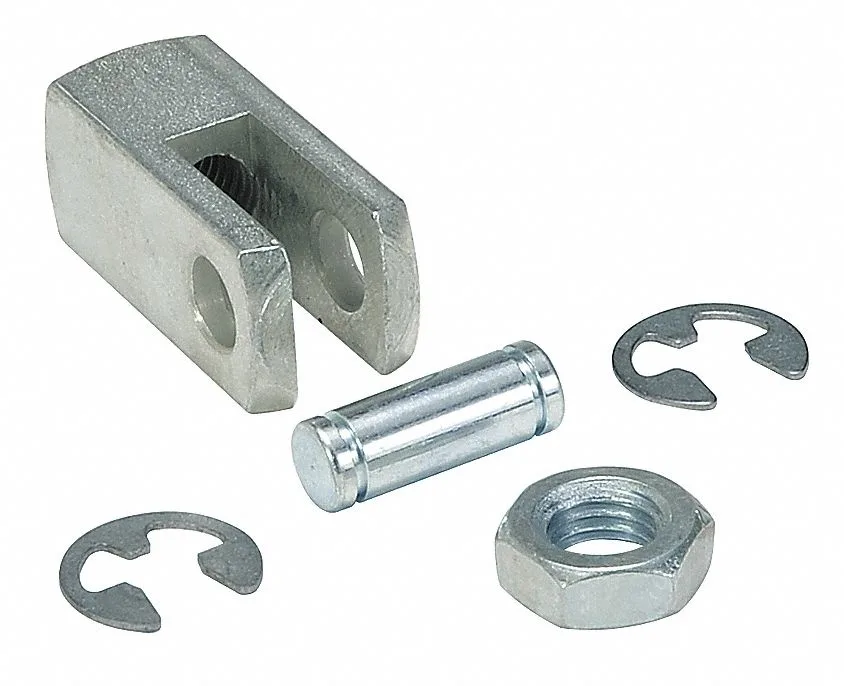

Aluminium rod clevis with pin, 1-1/16 inch bore, silver finish

SPEEDAIRE

SPEEDAIRE 5VKW2 rod clevis with pin, 1-1/16 in

SKU CH-11HG-1Y4GB

Steel rod clevis kit with pin fits 1-1/16 in bore cylinders and includes retaining rings and jam nut

  • Precision fit for 1-1/16 in bore cylinders
  • Durable steel body resists wear under pressure
  • Includes pivot pin and retaining rings for quick install
  • 25 in mount hole centres simplify alignment
  • California Proposition 65 warning applies to this item

Rod clevis kit for 1-1/16 in bore

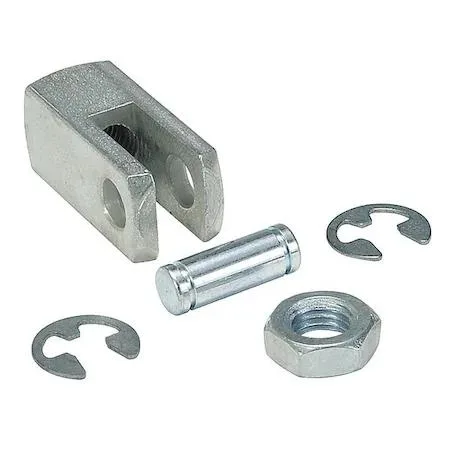

This SPEEDAIRE rod clevis kit fits a 1-1/16 inch bore diameter. It connects a piston rod to a machine member in pneumatic or hydraulic systems. The package includes a clevis body, pivot pin, jam nut and two retaining rings for a complete assembly.

Steel body with 5/16 in thread

The clevis body is made of steel for strength and wear resistance. A 5/16 inch thread size secures the clevis to the piston rod. The included pivot pin and retaining rings create a pinned joint that allows angular movement during cylinder operation.

Mount hole centre spacing 0.25 in

The mount hole centre-to-centre width is 0.25 inches. Verify this spacing matches the mating bracket or lug on your equipment before ordering. Buyers who need a different hole pattern or a larger bore size cannot use this kit.

Highlights

  • Precision fit for 1-1/16 in bore cylinders
  • Durable steel body resists wear under pressure
  • Includes pivot pin and retaining rings for quick install
  • 25 in mount hole centres simplify alignment
  • California Proposition 65 warning applies to this item

Specifications

BrandSPEEDAIRE

Questions about this item

What thread size does the 5/16 in clevis accept and what bore diameter does it cover?

The clevis uses a 5/16 in thread size and is designed for a 1-1/16 in bore diameter.

What are the key mounting dimensions for the clevis?

The mount hole center-to-center width is 0.25 in, overall length is 1-3/16 in, overall width is 11/16 in, and overall height is 1/2 in.

What hardware is included for installation and what step is often missed?

The kit includes a pivot pin, jam nut, and two retaining rings; the retaining rings must be fully seated in the pin grooves to secure the assembly.
