White desktop firewall appliance with front panel ports and indicator lights

SonicWall

SonicWall TZ680 High Availability firewall appliance 03-SSC-7014

SKU CH-8D83-5NAG1 MPN 03-SSC-7014

High-availability desktop firewall with 8×1GbE and 2×10G SFP ports, delivering 5 Gbps inspection and 2.5 Gbps threat prevention throughput

  • TypeWired
  • Form FactorDesktop
  • StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHC
  • ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
  • SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Sp
  • System MemoryOptional: Up to 512 Gb

Hardware TZ680

Option High Availability

  • 5 Gbps firewall inspection throughput for high-speed traffic analysis
  • 5 Gbps threat prevention throughput blocks attacks at line rate
  • 8 Gigabit Ethernet plus 2 multi-rate SFP ports for flexible connectivity
  • High Availability design provides automatic failover with a secondary unit
  • Centralised management via Network Security Manager simplifies distributed deployments

HA-ready TZ680 for mid-sized networks

The SonicWall TZ680 High Availability appliance (03-SSC-7014) serves as the secondary unit in an active-backup firewall pair. It targets mid-sized organisations and distributed enterprises running SD-Branch architectures. The desktop form factor runs SonicOS 8 and supports centralised management through Network Security Manager. Buyers needing a primary firewall or a standalone device should look elsewhere.

Desktop build with multi-gig SFP and USB-C console

Eight 1 GbE copper ports handle routine LAN traffic while two SFP ports accept 10G, 5G, 2.5G or 1G modules for uplinks or DMZ segments. A Micro-USB console port and a USB-C port give local access and storage expansion up to 512 Gb. The unit draws a maximum of 16.99 W from a 100-240 VAC supply and meets FCC Class B, CE and UL safety marks. Rack-mount installers will need a separate shelf or tray.

Replaces single-box firewalls when uptime is

Deploying this HA unit alongside an identical primary creates stateful failover so sessions survive a hardware fault without re-negotiation. The jump is worth it when business processes cannot tolerate the reboot window of a single appliance. Throughput figures stay identical at 5.00 Gbps firewall inspection, 3 Gbps IPS and 2.5 Gbps threat prevention. Organisations without a secondary-site budget or without 24/7 monitoring gain no advantage from the pairing.

Highlights

  • 5 Gbps firewall inspection throughput for high-speed traffic analysis
  • 5 Gbps threat prevention throughput blocks attacks at line rate
  • 8 Gigabit Ethernet plus 2 multi-rate SFP ports for flexible connectivity
  • High Availability design provides automatic failover with a secondary unit
  • Centralised management via Network Security Manager simplifies distributed deployments

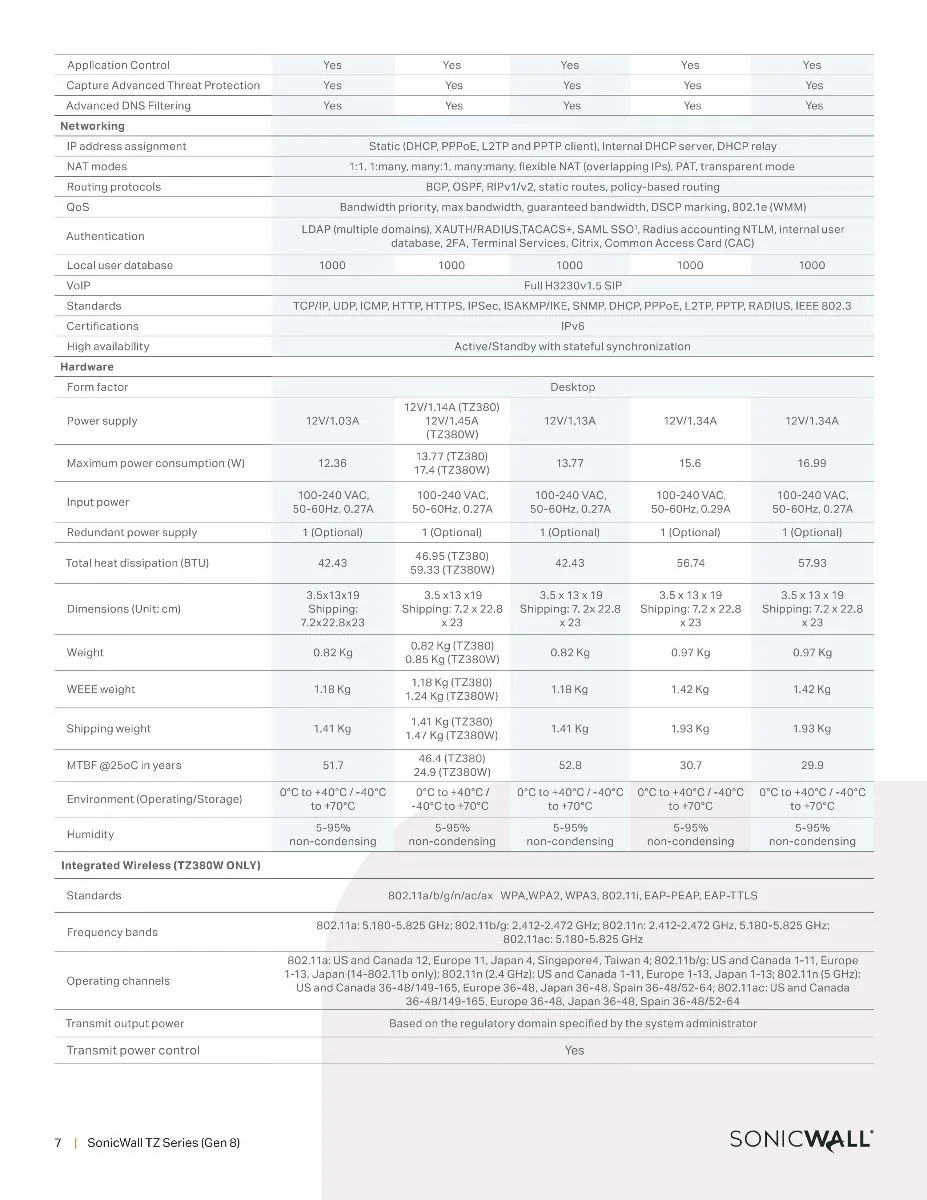

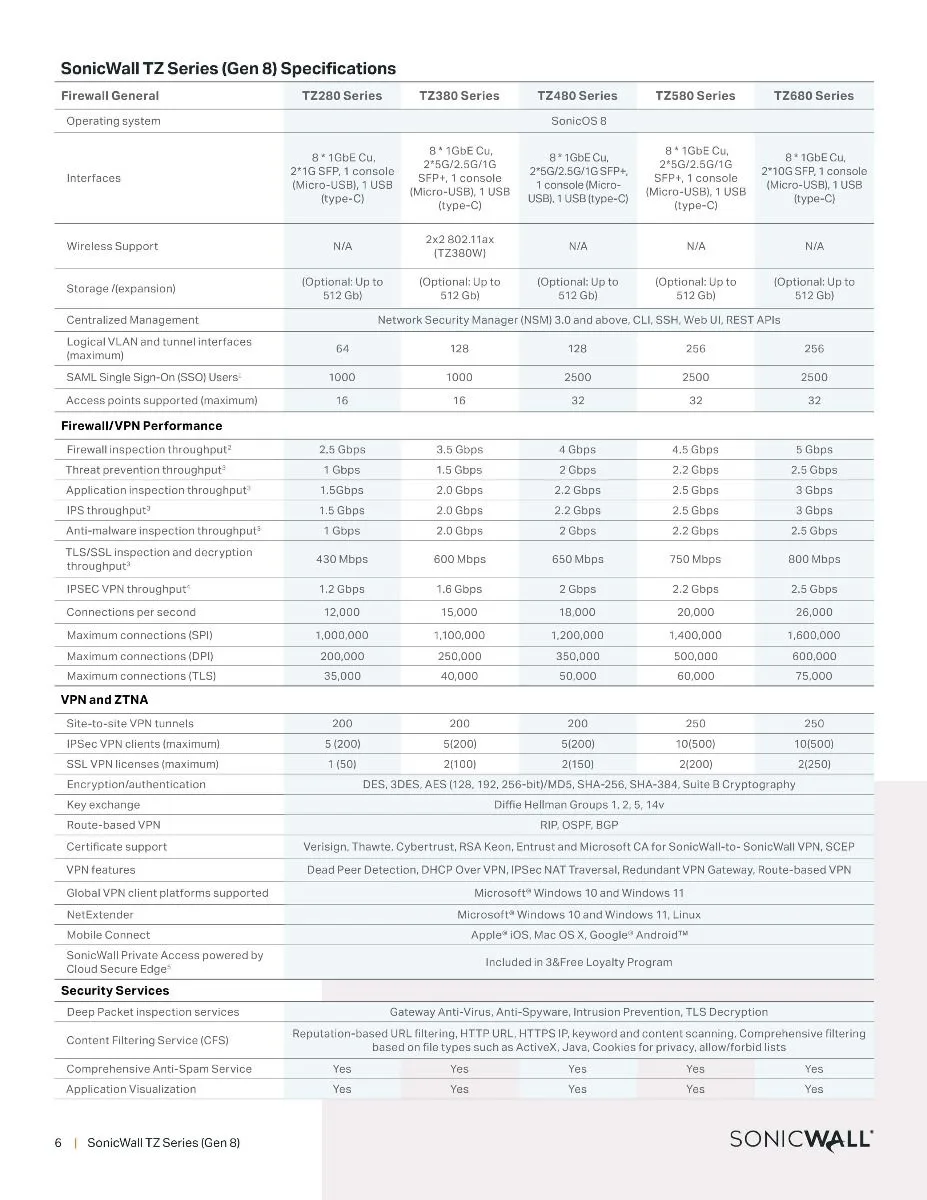

Specifications

BrandSONICWALL
SeriesTZ680
ModelTZ680 - High Availability
Part Number03-SSC-7014
TypeWired
Form FactorDesktop
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS): Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service
Application Visualization
Application Control
Capture Advanced Threat Protection
Advanced DNS Filtering
System MemoryOptional: Up to 512 Gb
Ports8 x 1GbE RJ45, 2 x 10G/5G/2.5G/1G SFP
VPNFirewall/VPN Performance
Firewall inspection throughput: 5 Gbps
Threat prevention throughput: 2.5 Gbps
Application inspection throughput: 3 Gbps
IPS throughput: 3 Gbps
Anti-malware inspection throughput: 2.5 Gbps
TLS/SSL inspection and decryption throughput: 800 Gbps
IPSEC VPN throughput: 2.5 Gbps
Connections per second: 26,000
Maximum connections (SPI): 1,600,000
Maximum connections (DPI): 600,000
Maximum connections (TLS): 75,000
VPN and ZTNA
Site-to-site VPN tunnels: 250
IPSec VPN clients: 10(500)
SSL VPN licenses (maximum): 2(250)
Encryption/authentication: AES (128, 192, 256-bit
CertificationsIPv6

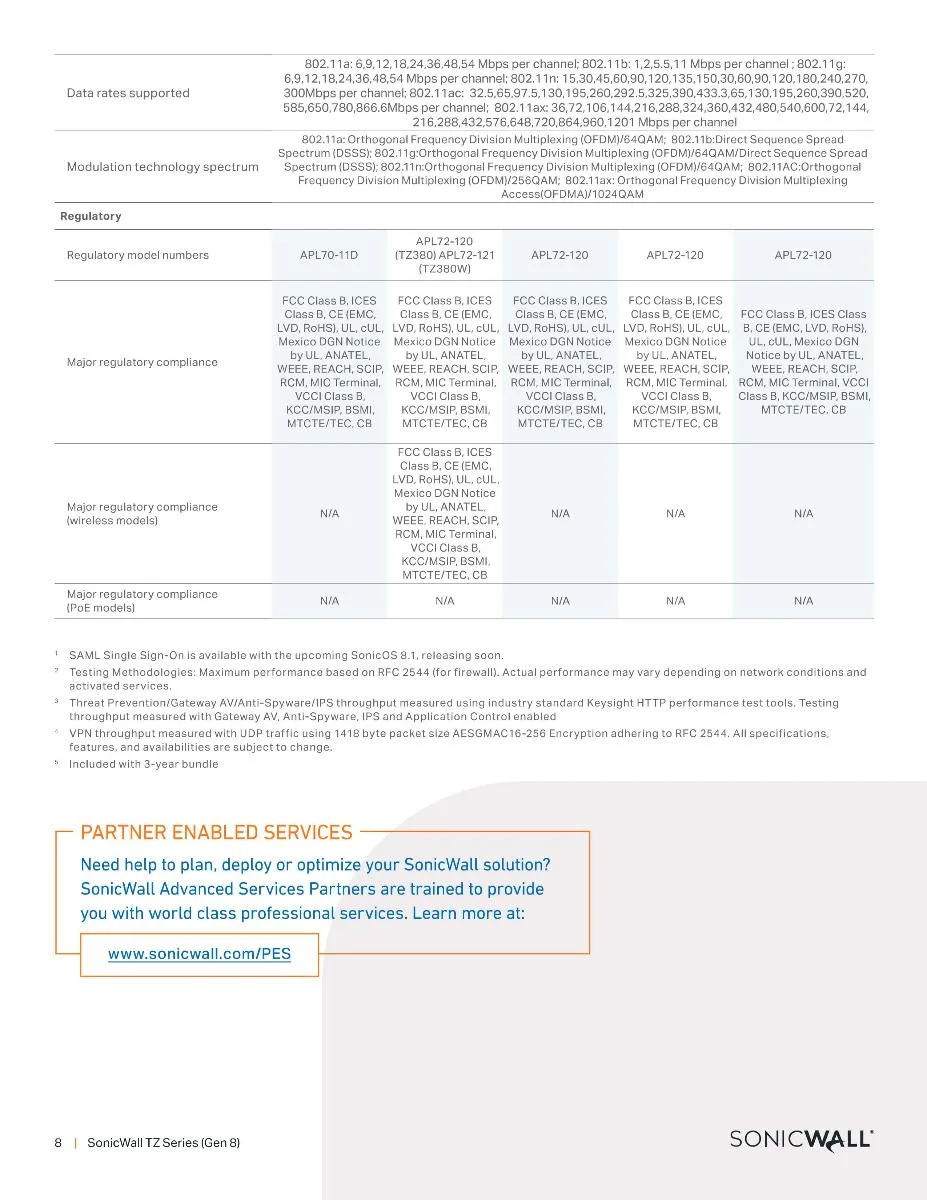

ComplianceFCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB
Power Input100-240 VAC, 50-60Hz
Max Power Consumption16.99 W
FeaturesGeneral
Operating system: SonicOS 8
Interfaces: 8 * 1GbE Cu, 2*10G/5G/2.5G/1G SFP, 1 console (Micro-USB), 1 USB (type-C)
Storage /(expansion): (Optional: Up to 512 Gb)
Centralized Management: Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
Logical VLAN and tunnel interfaces (maximum): 256
SAML Single Sign-On (SSO) Users: 2500
Access points supported (maximum): 32
Networking
IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transpa
Shipping weight1.81 kg
Package size356 × 203 × 51 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What throughput does the 10G SFP interface cap at for threat prevention on the TZ680 HA unit?

The 10G SFP ports support up to 2.5 Gbps threat prevention throughput on this appliance.

What rack hardware is required to mount the desktop form factor TZ680 HA appliance?

The unit is a desktop form factor; optional rack-mount brackets are needed for 1U installation.

How is the High Availability pairing configured on the 03-SSC-7014, and which step is commonly missed?

Configure HA on the primary unit first, then connect the secondary; the step often missed is licensing the secondary unit for HA before pairing.
