Compact desktop firewall appliance in matte black with front LED array and rear port cluster

SonicWall

SonicWall TZ380 firewall appliance 03-SSC-6952 2Y APSS

SKU CH-5EKC-W9G2V MPN 03-SSC-6952

Desktop firewall with 8×1 GbE and 2×5 GbE SFP ports, 3.5 Gbps inspection throughput and 2-year Advanced Protection Security Suite

  • TypeWired
  • Form FactorDesktop
  • StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHC
  • ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
  • SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Sp
  • System MemoryOptional: Up to 512 Gb

Hardware TZ380

Option Secure Upgrade Plus (Appliance + 2Y APSS)

  • Firewall inspection throughput reaches 3.5 Gbps for fast traffic processing
  • Threat prevention throughput of 1.5 Gbps blocks malware in real time
  • Eight 1GbE copper ports plus two 5G/2.5G/1G SFP uplinks provide flexible connectivity
  • SonicOS 8 enables SD-Branch ready Secure SD-WAN with Zero-Touch Deployment
  • Centralised cloud management via Network Security Manager simplifies multi-site operations

SonicWall TZ380 desktop firewall

The SonicWall TZ380 is a desktop network security appliance built for small organisations and lean branches. It ships with a two-year Advanced Protection Security Suite licence that bundles gateway anti-virus, intrusion prevention, TLS decryption and cloud-based content filtering. SonicOS 8 powers the platform and enables Secure SD-WAN, zero-touch deployment and centralised management through Network Security Manager.

Connectivity and build

Eight 1 GbE copper ports and two multi-rate SFP slots supporting 5G, 2.5G and 1G links provide flexible WAN and LAN connectivity. A micro-USB console port and a USB-C port sit alongside for local administration and storage expansion up to 512 GB. The unit measures 3.5 x 13 x 19 cm, weighs 0.82 kg and draws a maximum of 13.77 W from a 100-240 VAC supply. FCC Class B, CE and UL certifications confirm compliance for office environments.

Upgrade context

The appliance delivers 3.5 Gbps firewall inspection throughput, 2.0 Gbps application and IPS throughput and 1.5 Gbps threat prevention throughput with up to 1,100,000 concurrent connections. Organisations moving from entry-level appliances that cap below these throughput figures or lack SD-WAN and cloud management will see the jump. Buyers who need higher multi-gigabit port density or hardware redundancy beyond the single desktop chassis should evaluate larger platforms.

Highlights

  • Firewall inspection throughput reaches 3.5 Gbps for fast traffic processing
  • Threat prevention throughput of 1.5 Gbps blocks malware in real time
  • Eight 1GbE copper ports plus two 5G/2.5G/1G SFP uplinks provide flexible connectivity
  • SonicOS 8 enables SD-Branch ready Secure SD-WAN with Zero-Touch Deployment
  • Centralised cloud management via Network Security Manager simplifies multi-site operations

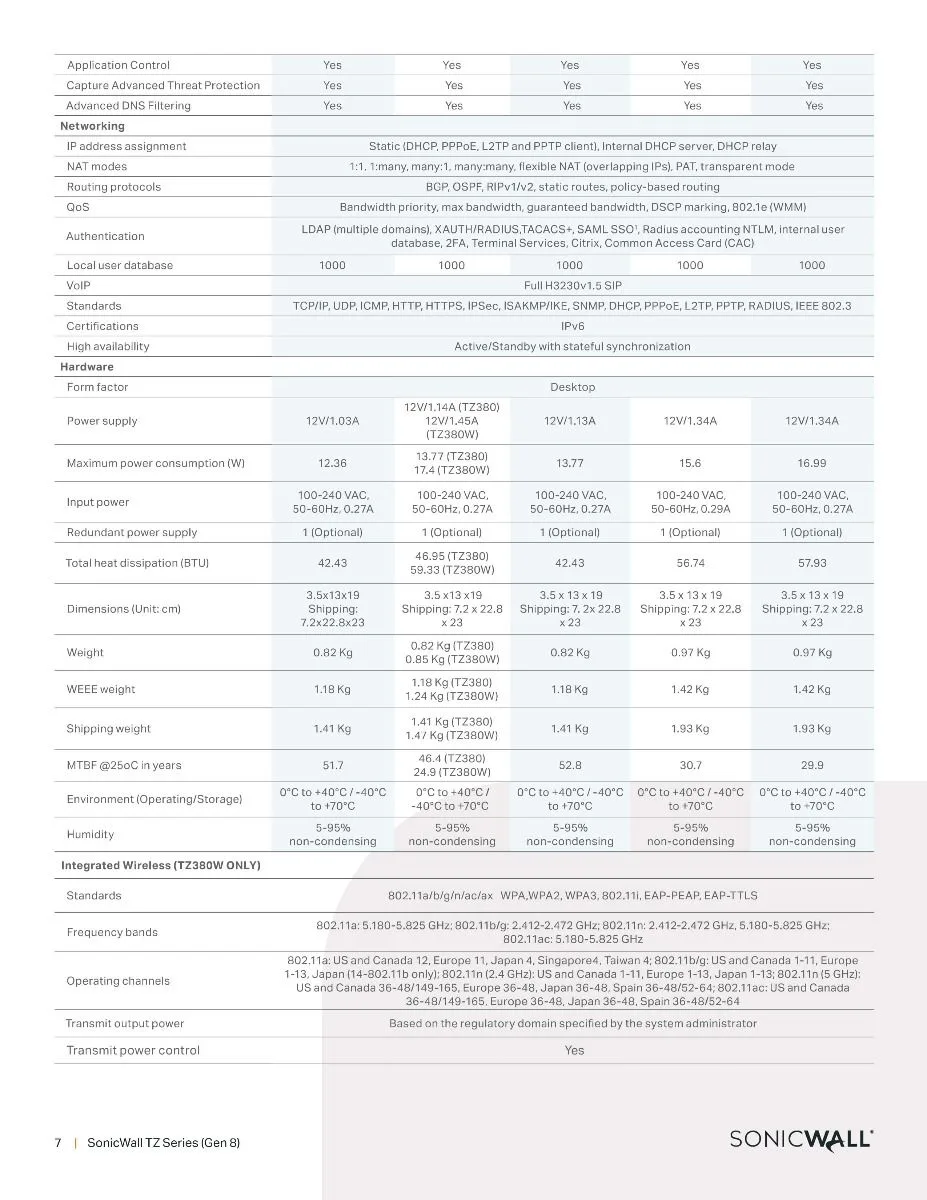

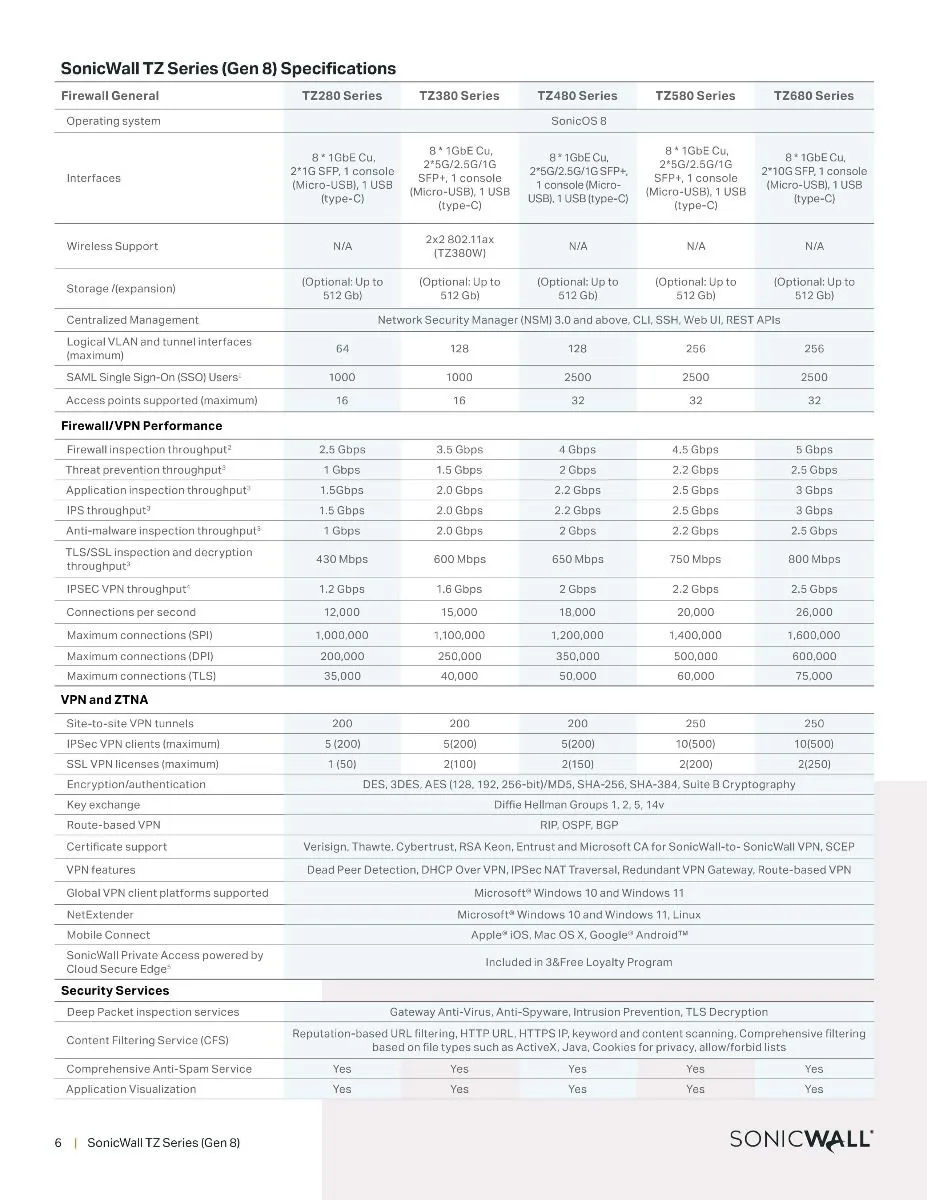

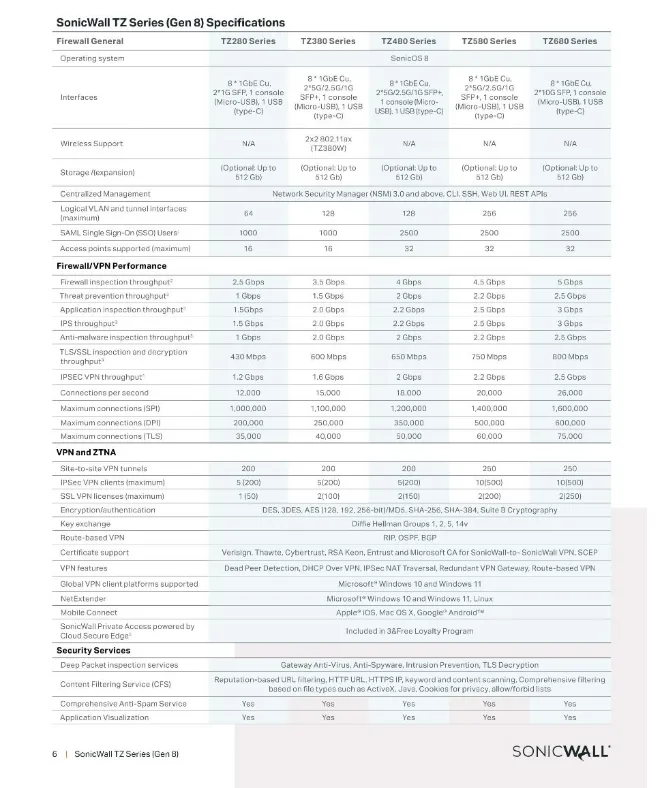

Specifications

BrandSONICWALL
SeriesTZ 380
ModelTZ 380 - Secure Upgrade Plus (2Y APSS)
Part Number03-SSC-6952
TypeWired
Form FactorDesktop
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS): Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service
Application Visualization
Application Control
Capture Advanced Threat Protection
Advanced DNS Filtering
System MemoryOptional: Up to 512 Gb
Ports8 x 1GbE RJ45, 2 x 5G/2.5G/1G SFP
VPNFirewall/VPN Performance
Firewall inspection throughput: 3.5 Gbps
Threat prevention throughput: 1.5 Gbps
Application inspection throughput: 2.0 Gbps
IPS throughput: 2.0 Gbps
Anti-malware inspection throughput: 2.0 Gbps
TLS/SSL inspection and decryption throughput: 600 Mbps
IPSEC VPN throughput: 1.6 Gbps
Connections per second: 15,000
Maximum connections (SPI): 1,100,000
Maximum connections (DPI): 250,000
Maximum connections (TLS): 40,000
VPN and ZTNA
Site-to-site VPN tunnels: 200
IPSec VPN clients: 5(200)
SSL VPN licenses (maximum): 2(100)
Encryption/authentication: AES (128, 192, 25
CertificationsIPv6
ComplianceFCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB
Power Input100-240 VAC, 50-60Hz, 0.27A
Max Power Consumption13.77W
FeaturesGeneral
Operating system: SonicOS 8
Interfaces: 8 x 1GbE Cu, 2*5G/2.5G/1G SFP, 1 console (Micro-USB), 1 USB (type-C)
Storage /(expansion): (Optional: Up to 512 Gb)
Centralized Management: Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
Logical VLAN and tunnel interfaces (maximum): 128
SAML Single Sign-On (SSO) Users: 1000
Access points supported (maximum): 16
Networking
IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent
Dimensionsin cm: 3.5 x13 x19
Weightin Kg: 0.82
Shipping weight1.77 kg
Package size366 × 218 × 69 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What throughput does the 5 GbE SFP interface cap at for IPS inspection?

The 5G/2.5G/1G SFP ports support up to 2.0 Gbps IPS throughput, matching the appliance's rated IPS inspection ceiling.

What rack or desktop clearance does the 3.5 x 13 x 19 cm chassis need?

The desktop form factor measures 3.5 cm high, 13 cm wide and 19 cm deep; allow extra space for the 8 RJ45 cables, two SFP modules and the Micro-USB console cable.

Which port starts the Zero-Touch Deployment onboarding?

Plug the ISP link into any of the 8 x 1GbE RJ45 ports, power on, then use the SonicExpress App or NSM to claim the device; the Micro-USB console port is for CLI access only.
