White rectangular desktop firewall appliance with front port array

SonicWall

SonicWall TZ380 High Availability firewall appliance 03-SSC-6964

SKU CH-JV8W-TFEFG MPN 03-SSC-6964

High-availability desktop firewall with 8 Gigabit Ethernet and two 5G SFP ports for small-branch security

  • TypeWired
  • Form FactorDesktop
  • StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHC
  • ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
  • SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Sp
  • System MemoryOptional: Up to 512 Gb

Hardware TZ380

Option High Availability

  • High Availability pairing for continuous network uptime
  • 5 Gbps firewall inspection throughput for fast traffic processing
  • 5 Gbps threat prevention throughput blocks attacks inline
  • 8 x 1GbE plus 2 x 5G/2.5G/1G SFP ports for flexible connectivity
  • Centralised management via Network Security Manager simplifies operations

High Availability firewall for branch offices

The SonicWall TZ380 High Availability appliance (03-SSC-6964) serves as the secondary unit in an active-backup pair for small organisations and lean branches. It runs SonicOS 8 and provides eight 1 GbE copper ports plus two multi-rate SFP ports at 5G, 2.5G or 1G. Deep packet inspection covers gateway anti-virus, anti-spyware, intrusion prevention and TLS decryption. Content Filtering Service 5.0 adds reputation-based URL filtering and keyword scanning.

Low power draw and quiet desktop operation

Maximum power consumption is 13.77 W from a 100-240 VAC supply drawing 0.27 A at 50-60 Hz. The desktop form factor measures 3.5 x 13 x 19 cm and weighs 0.82 kg with no moving parts listed, so it runs silently in office environments. Compliance includes FCC Class B, CE, UL and RoHS among others.

Replaces single firewalls lacking failover

This unit adds stateful high availability to an existing TZ380 deployment, eliminating a single point of failure for sites that cannot tolerate downtime. The jump is worth it when business continuity requires automatic failover with session synchronisation. It is not for buyers who need a standalone primary firewall or who require throughput beyond the 3.5 Gbps inspection and 1.5 Gbps threat prevention ratings.

Highlights

  • High Availability pairing for continuous network uptime
  • 5 Gbps firewall inspection throughput for fast traffic processing
  • 5 Gbps threat prevention throughput blocks attacks inline
  • 8 x 1GbE plus 2 x 5G/2.5G/1G SFP ports for flexible connectivity
  • Centralised management via Network Security Manager simplifies operations

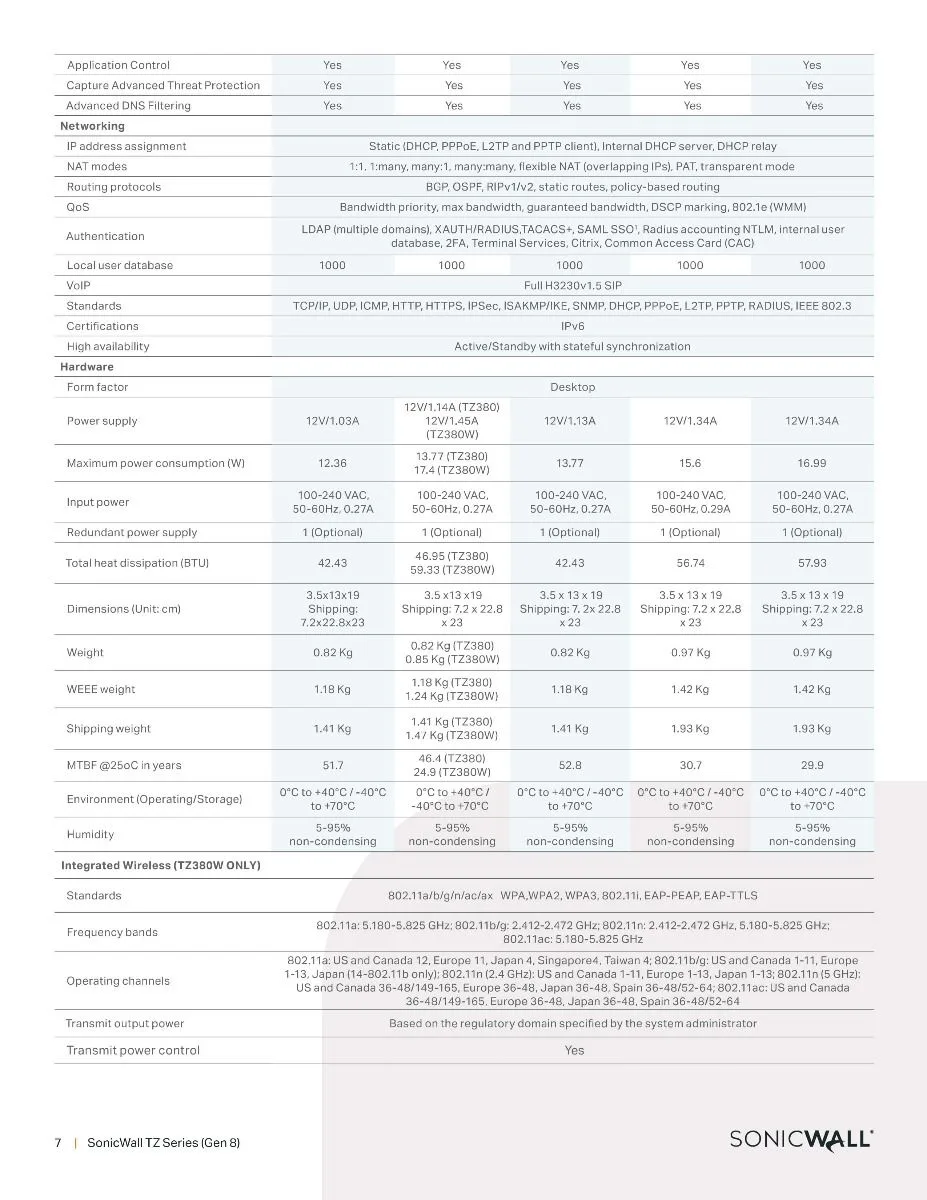

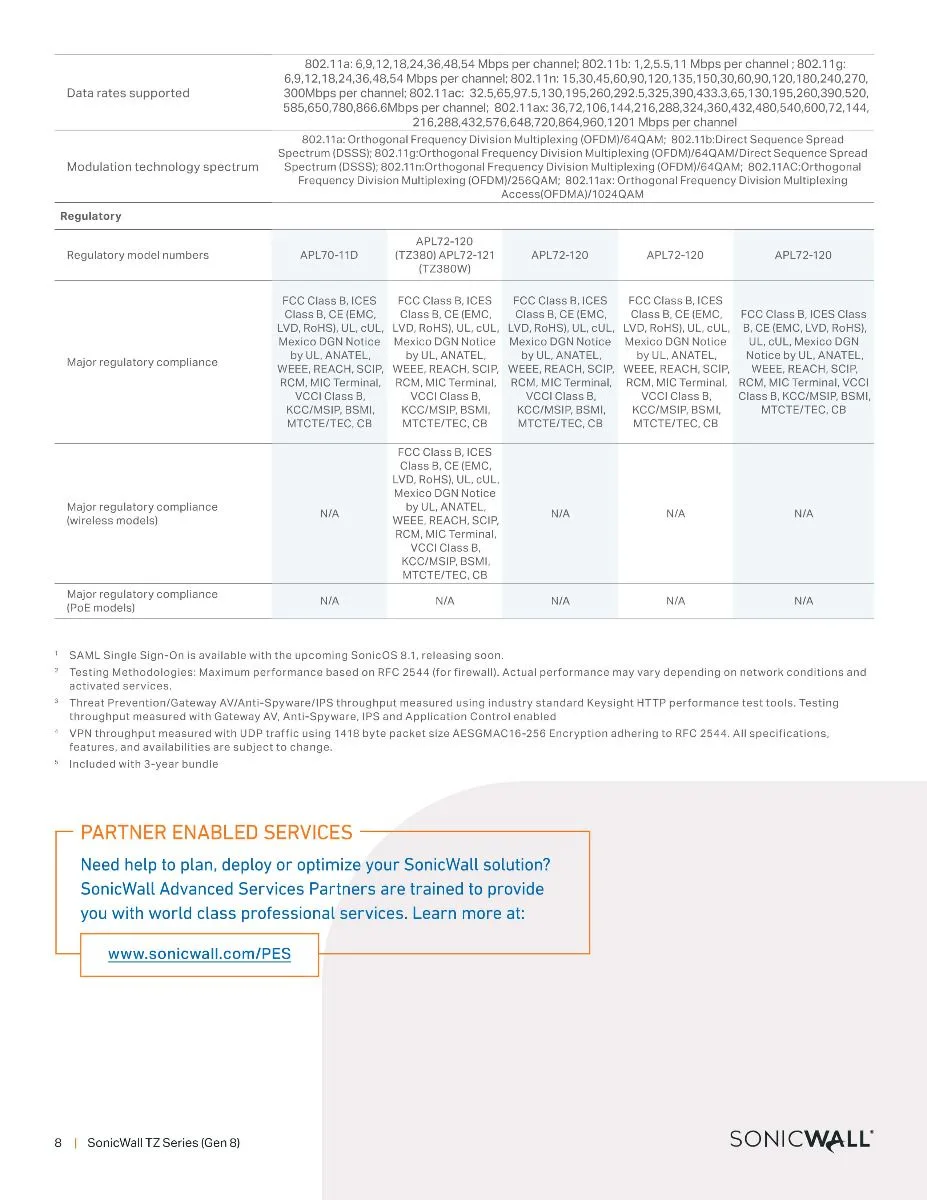

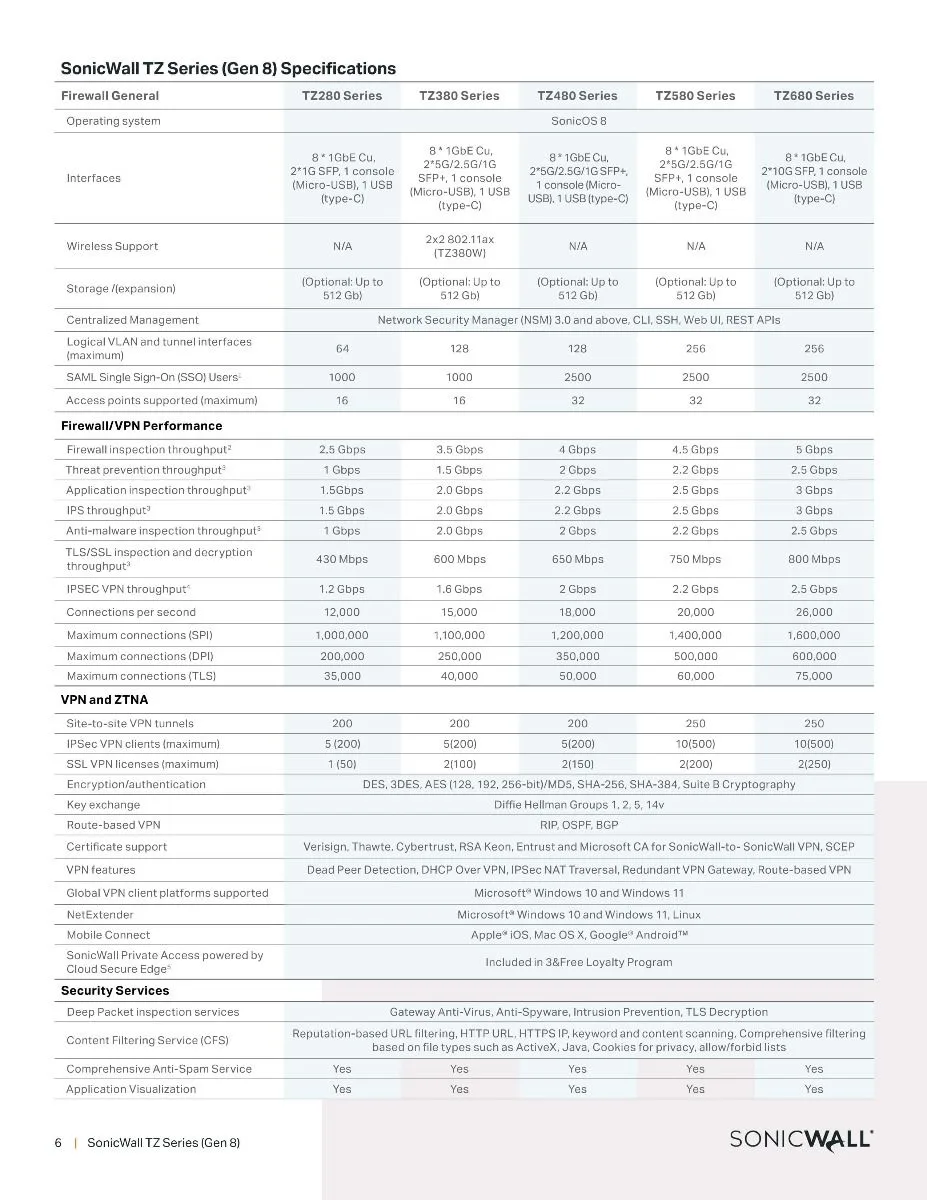

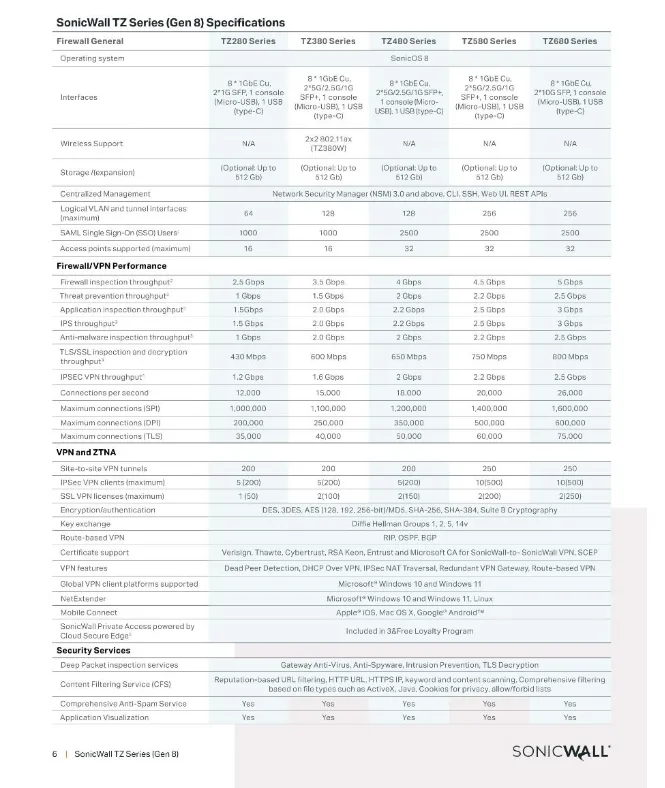

Specifications

BrandSONICWALL
SeriesTZ 380
ModelTZ 380 High Availability
Part Number03-SSC-6964
TypeWired
Form FactorDesktop
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS): Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service
Application Visualization
Application Control
Capture Advanced Threat Protection
Advanced DNS Filtering
System MemoryOptional: Up to 512 Gb
Ports8 x 1GbE RJ45, 2 x 5G/2.5G/1G SFP
VPNFirewall/VPN Performance
Firewall inspection throughput: 3.5 Gbps
Threat prevention throughput: 1.5 Gbps
Application inspection throughput: 2.0 Gbps
IPS throughput: 2.0 Gbps
Anti-malware inspection throughput: 2.0 Gbps
TLS/SSL inspection and decryption throughput: 600 Mbps
IPSEC VPN throughput: 1.6 Gbps
Connections per second: 15,000
Maximum connections (SPI): 1,100,000
Maximum connections (DPI): 250,000
Maximum connections (TLS): 40,000
VPN and ZTNA
Site-to-site VPN tunnels: 200
IPSec VPN clients: 5(200)
SSL VPN licenses (maximum): 2(100)
Encryption/authentication: AES (128, 192, 25
CertificationsIPv6
ComplianceFCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB
Power Input100-240 VAC, 50-60Hz, 0.27A
Max Power Consumption13.77W
FeaturesGeneral
Operating system: SonicOS 8

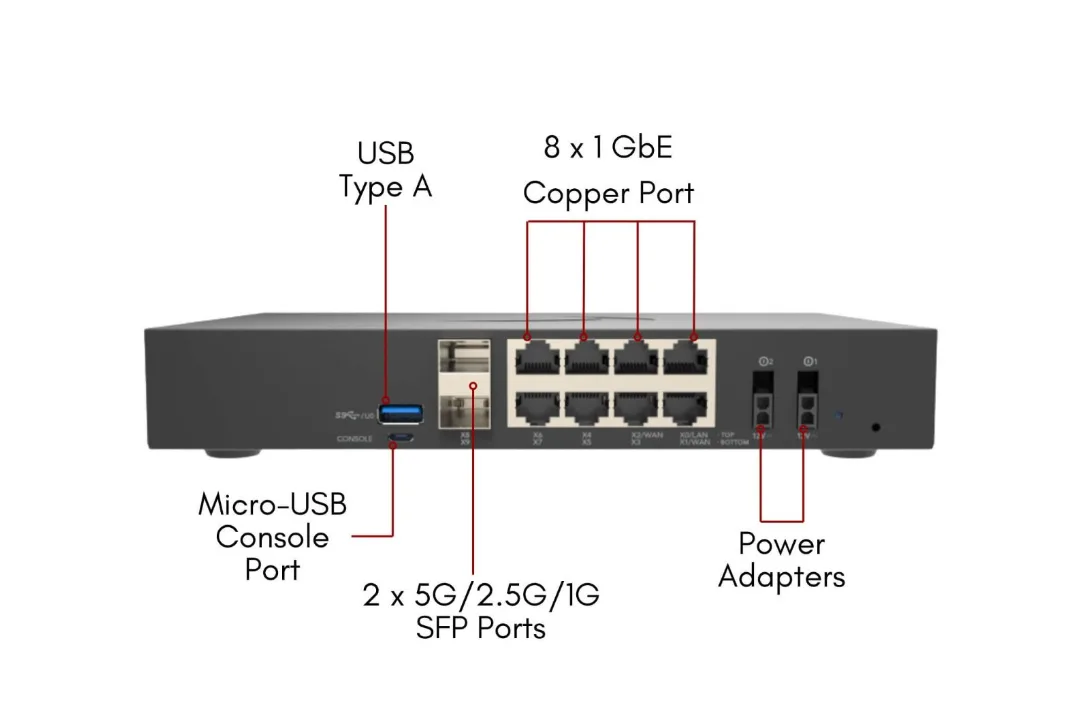

Interfaces: 8 x 1GbE Cu, 2*5G/2.5G/1G SFP, 1 console (Micro-USB), 1 USB (type-C)
Storage /(expansion): (Optional: Up to 512 Gb)
Centralized Management: Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
Logical VLAN and tunnel interfaces (maximum): 128
SAML Single Sign-On (SSO) Users: 1000
Access points supported (maximum): 16
Networking
IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent
Dimensionsin cm: 3.5 x13 x19
Weightin Kg: 0.82
Shipping weight1.77 kg
Package size366 × 218 × 69 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I connect the 8 x 1GbE RJ45 and 2 x 5G/2.5G/1G SFP ports during installation, and what step is often missed?

Connect WAN to a 1GbE port and LAN to the remaining ports or SFP modules; the step often missed is enabling HA mode on this secondary unit before linking the dedicated HA interface to the primary appliance.

Which components will need replacement or licence renewal over time on this TZ380 High Availability unit?

The security service subscriptions for Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention and Content Filtering Service 5.0 require periodic renewal; the optional 512 GB storage module can be added later if logging needs grow.

What throughput limit appears first when this firewall runs sustained threat prevention traffic?

Threat prevention throughput is rated at 1.5 Gbps, which is lower than the 3.5 Gbps firewall inspection or 2.0 Gbps IPS and application inspection rates, so it becomes the bottleneck first.
