Small black desktop firewall box with front port array

SonicWall

SonicWall TZ 380 firewall appliance 03-SSC-1831

SKU CH-5B8D-H98RF MPN 03-SSC-1831

Desktop firewall appliance with 8 Gigabit Ethernet ports, 2 multi-gig SFP ports, 3.5 Gbps inspection throughput and 1.5 Gbps threat prevention

  • TypeWired
  • Form FactorDesktop
  • StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHC
  • ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
  • SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Sp
  • System MemoryOptional: Up to 512 Gb

Hardware TZ380

Option Hardware Only

  • 5 Gbps firewall inspection throughput for high-speed traffic
  • 5 Gbps threat prevention throughput blocks attacks in real time
  • 8 x 1GbE RJ45 plus 2 x 5G/2.5G/1G SFP ports connect diverse links
  • SonicOS 8 enables Secure SD-WAN and Zero-Touch Deployment
  • Centralised management via Network Security Manager simplifies operations

SonicWall TZ 380 desktop firewall

The SonicWall TZ 380 is a desktop security appliance built for small organisations and lean branch offices. It delivers stateful inspection at 3.5 Gbps and threat-prevention throughput at 1.5 Gbps while supporting up to 1,100,000 concurrent connections. The unit runs SonicOS 8 and includes SD-WAN, zero-touch deployment and centralised management via Network Security Manager.

Verify uplink speed and SFP module needs

Confirm your WAN circuit does not exceed the appliance’s 3.5 Gbps inspection ceiling or the 1.5 Gbps threat-prevention limit. The box provides eight 1 GbE copper ports and two multi-rate SFP cages that accept 5 G, 2.5 G or 1 G transceivers. Ensure you have compatible SFP modules for fibre links and a free 100–240 VAC outlet drawing 0.27 A at peak.

Replaces older TZ models when throughput

The step up is justified when your current gateway cannot sustain 2.0 Gbps application or IPS throughput, or when you need secure SD-WAN and Wi-Fi 6 controller features absent from earlier units. It is not suited for sites that need more than two high-speed SFP uplinks, redundant power supplies or rackmount form factor.

Highlights

  • 5 Gbps firewall inspection throughput for high-speed traffic
  • 5 Gbps threat prevention throughput blocks attacks in real time
  • 8 x 1GbE RJ45 plus 2 x 5G/2.5G/1G SFP ports connect diverse links
  • SonicOS 8 enables Secure SD-WAN and Zero-Touch Deployment
  • Centralised management via Network Security Manager simplifies operations

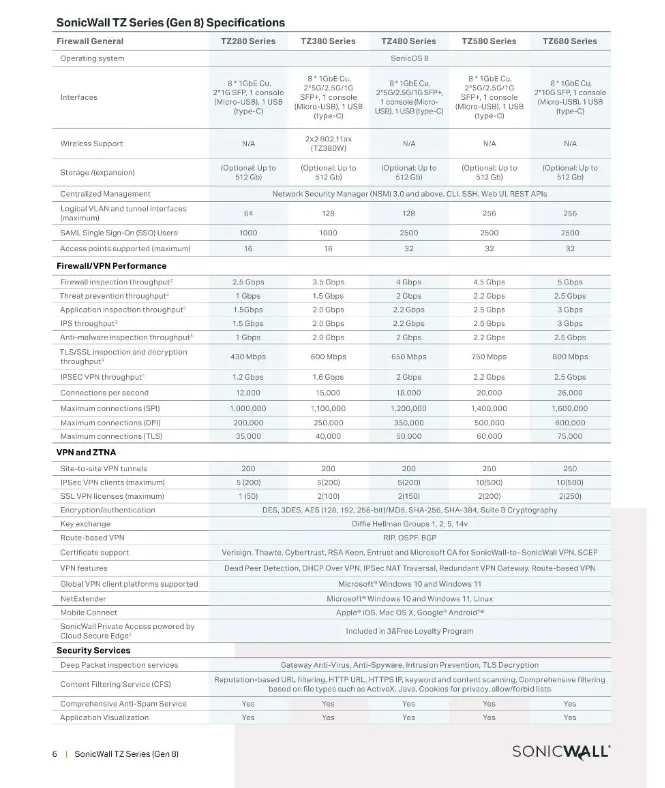

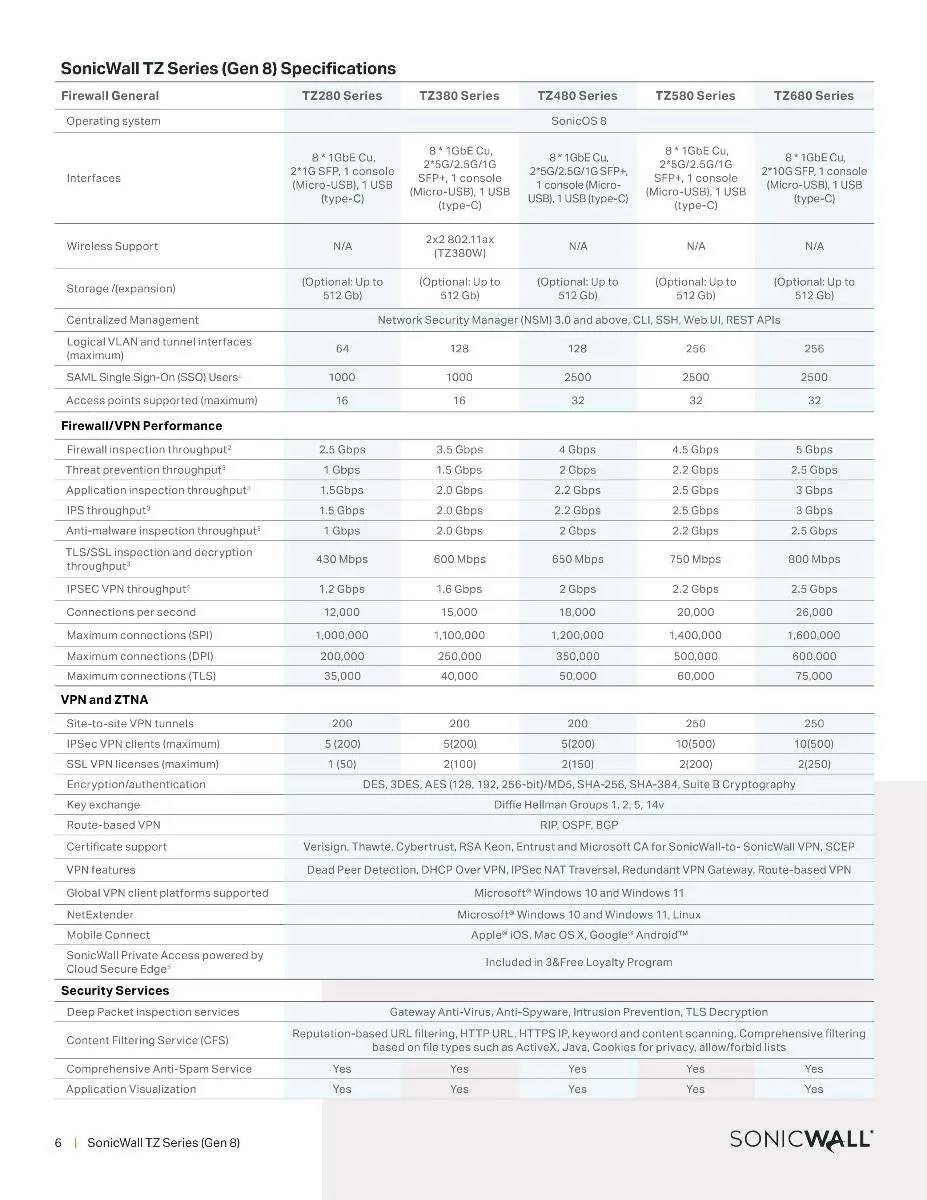

Specifications

BrandSONICWALL
SeriesTZ 380
ModelTZ 380 Appliance Only
Part Number03-SSC-1831
TypeWired
Form FactorDesktop
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS): Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service
Application Visualization
Application Control
Capture Advanced Threat Protection
Advanced DNS Filtering
System MemoryOptional: Up to 512 Gb
Ports8 x 1GbE RJ45, 2 x 5G/2.5G/1G SFP
VPNFirewall/VPN Performance
Firewall inspection throughput: 3.5 Gbps
Threat prevention throughput: 1.5 Gbps
Application inspection throughput: 2.0 Gbps
IPS throughput: 2.0 Gbps
Anti-malware inspection throughput: 2.0 Gbps
TLS/SSL inspection and decryption throughput: 600 Mbps
IPSEC VPN throughput: 1.6 Gbps
Connections per second: 15,000
Maximum connections (SPI): 1,100,000
Maximum connections (DPI): 250,000
Maximum connections (TLS): 40,000
VPN and ZTNA
Site-to-site VPN tunnels: 200
IPSec VPN clients: 5(200)
SSL VPN licenses (maximum): 2(100)
Encryption/authentication: AES (128, 192, 25
CertificationsIPv6
ComplianceFCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB
Power Input100-240 VAC, 50-60Hz, 0.27A
Max Power Consumption13.77W
FeaturesGeneral
Operating system: SonicOS 8

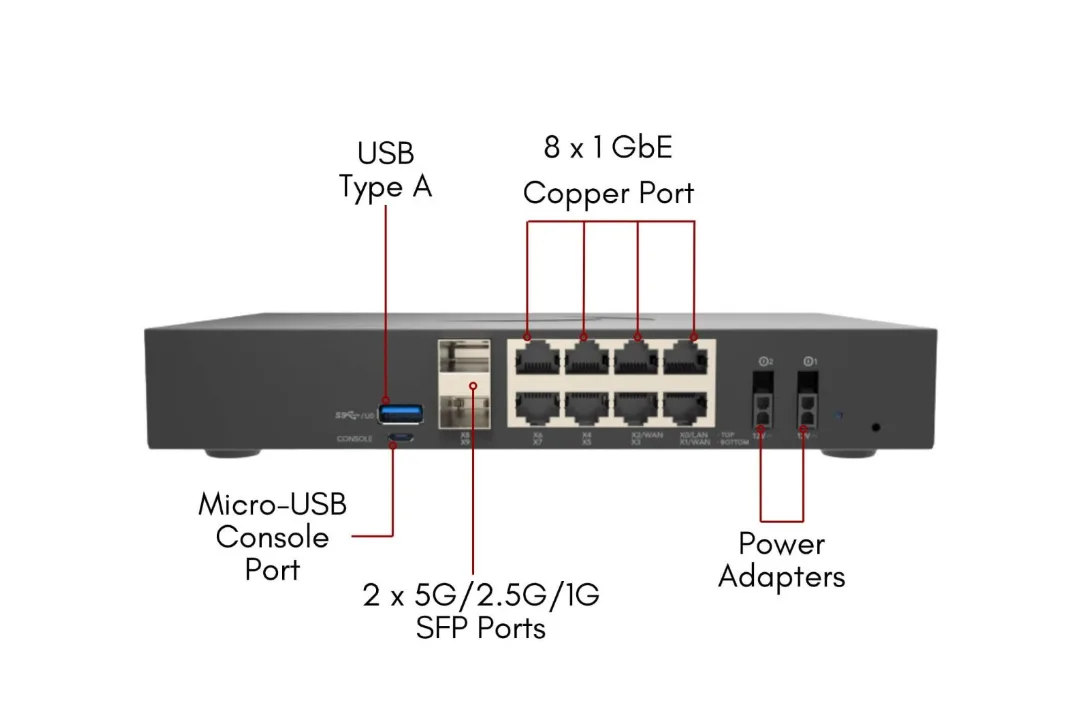

Interfaces: 8 x 1GbE Cu, 2*5G/2.5G/1G SFP, 1 console (Micro-USB), 1 USB (type-C)
Storage /(expansion): (Optional: Up to 512 Gb)
Centralized Management: Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
Logical VLAN and tunnel interfaces (maximum): 128
SAML Single Sign-On (SSO) Users: 1000
Access points supported (maximum): 16
Networking
IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent
Dimensionsin cm: 3.5 x13 x19
Weightin Kg: 0.82
Shipping weight1.77 kg
Package size366 × 218 × 69 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the TZ 380 box include the 512 GB storage module or must it be purchased separately?

The appliance ships without the optional storage module; the 512 GB expansion is sold separately.

When should I use the 2.5 Gbps SFP ports instead of the 1 Gbps RJ45 ports?

Use the 2.5 Gbps SFP interfaces for uplinks or links that need more than 1 Gbps throughput; the eight RJ45 ports are fixed at 1 Gbps.

What does the 1.5 Gbps threat-prevention figure mean for daily traffic?

It is the maximum throughput when gateway anti-virus, intrusion prevention and TLS decryption are all active simultaneously.
