White desktop firewall appliance with front port array

SonicWall

SonicWall TZ680 03-SSC-1839 firewall appliance

SKU CH-A7Z8-GSRF4 MPN 03-SSC-1839

Desktop firewall appliance with eight 1 GbE ports, two 10 GbE SFP+ slots and 5 Gbps inspection throughput for mid-sized networks

  • TypeWired
  • Form FactorDesktop
  • StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHC
  • ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
  • SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Sp
  • System MemoryOptional: Up to 512 Gb

Hardware TZ680

Option Hardware Only

  • Industry-validated security effectiveness for mid-sized organisations
  • Secure SD-WAN capability simplifies branch connectivity
  • Zero-Touch Deployment enables rapid appliance onboarding
  • Centralised management via Network Security Manager
  • Firewall inspection throughput of 5 Gbps with threat prevention at 2.5 Gbps

Mid-sized organisation firewall

The SonicWall TZ680 is a desktop-form-factor security appliance built for mid-sized organisations and distributed enterprises running SD-Branch architectures. It runs SonicOS 8 and provides deep packet inspection services including gateway anti-virus, anti-spyware, intrusion prevention and TLS decryption. Centralised management is handled through Network Security Manager with zero-touch deployment support.

5 Gbps firewall throughput

Eight 1 GbE copper ports and two multi-rate 10G/5G/2.5G/1G SFP ports give flexible WAN and LAN connectivity. Firewall inspection throughput reaches 5 Gbps while threat prevention, anti-malware and VPN throughputs each sit at 2.5 Gbps. The platform supports up to 1.6 million concurrent connections and 26,000 new connections per second, with optional storage expansion up to 512 Gb.

Replaces older desktop appliances lacking

Organisations moving from single-gigabit desktop firewalls gain 10G-capable SFP interfaces and higher inspection throughput without changing form factor. The jump is worthwhile when branch sites need secure SD-WAN, Wi-Fi 6 access-point management and DNS security in a single device. It is not suited for environments that require redundant power supplies or higher threat-prevention throughput than 2.5 Gbps.

Highlights

  • Industry-validated security effectiveness for mid-sized organisations
  • Secure SD-WAN capability simplifies branch connectivity
  • Zero-Touch Deployment enables rapid appliance onboarding
  • Centralised management via Network Security Manager
  • Firewall inspection throughput of 5 Gbps with threat prevention at 2.5 Gbps

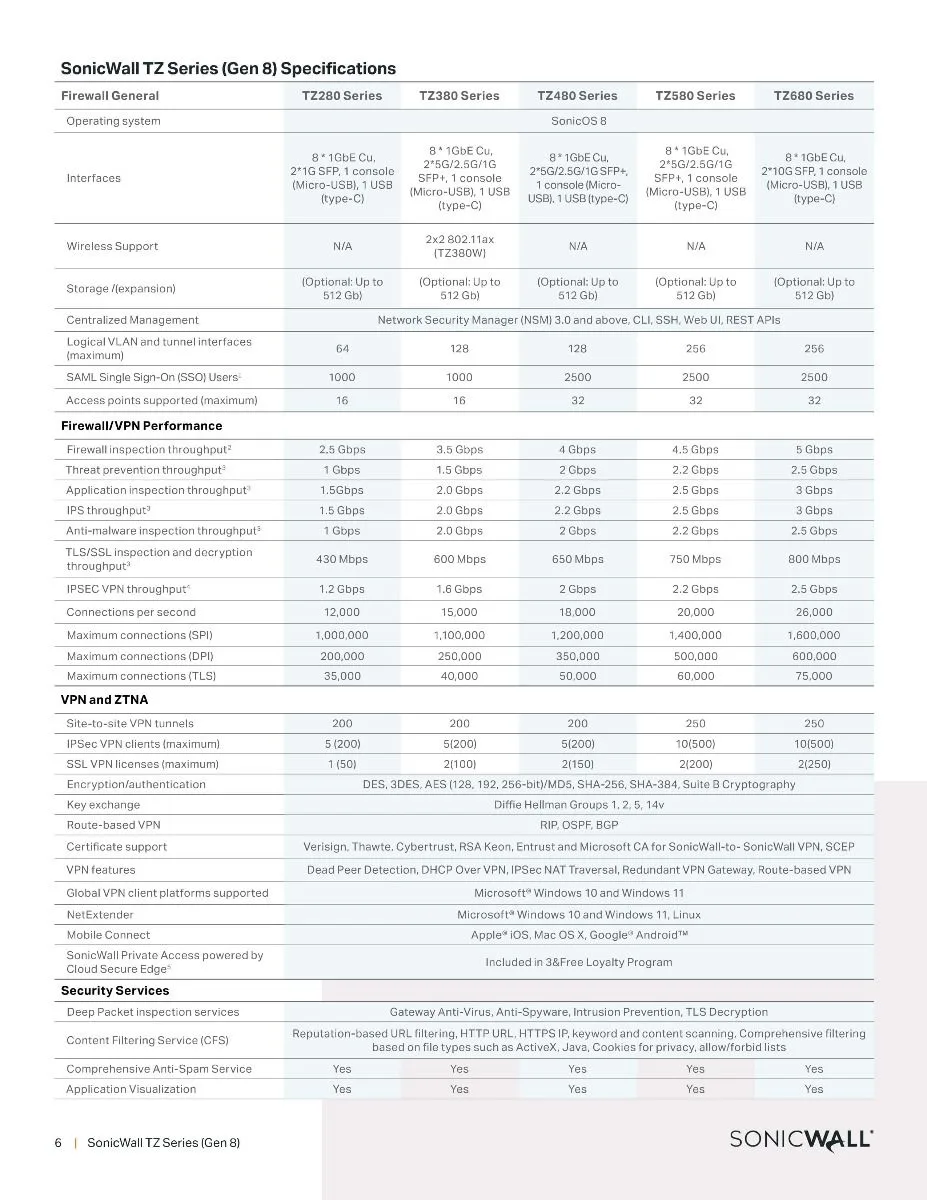

Specifications

BrandSONICWALL
SeriesTZ680
ModelTZ680 - Appliance Only
Part Number03-SSC-1839
TypeWired
Form FactorDesktop
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS): Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service
Application Visualization
Application Control
Capture Advanced Threat Protection
Advanced DNS Filtering
System MemoryOptional: Up to 512 Gb
Ports8 x 1GbE RJ45, 2 x 10G/5G/2.5G/1G SFP
VPNFirewall/VPN Performance
Firewall inspection throughput: 5 Gbps
Threat prevention throughput: 2.5 Gbps
Application inspection throughput: 3 Gbps
IPS throughput: 3 Gbps
Anti-malware inspection throughput: 2.5 Gbps
TLS/SSL inspection and decryption throughput: 800 Gbps
IPSEC VPN throughput: 2.5 Gbps
Connections per second: 26,000
Maximum connections (SPI): 1,600,000
Maximum connections (DPI): 600,000
Maximum connections (TLS): 75,000
VPN and ZTNA
Site-to-site VPN tunnels: 250
IPSec VPN clients: 10(500)
SSL VPN licenses (maximum): 2(250)
Encryption/authentication: AES (128, 192, 256-bit
CertificationsIPv6
ComplianceFCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB
Power Input100-240 VAC, 50-60Hz
Max Power Consumption16.99 W
FeaturesGeneral
Operating system: SonicOS 8

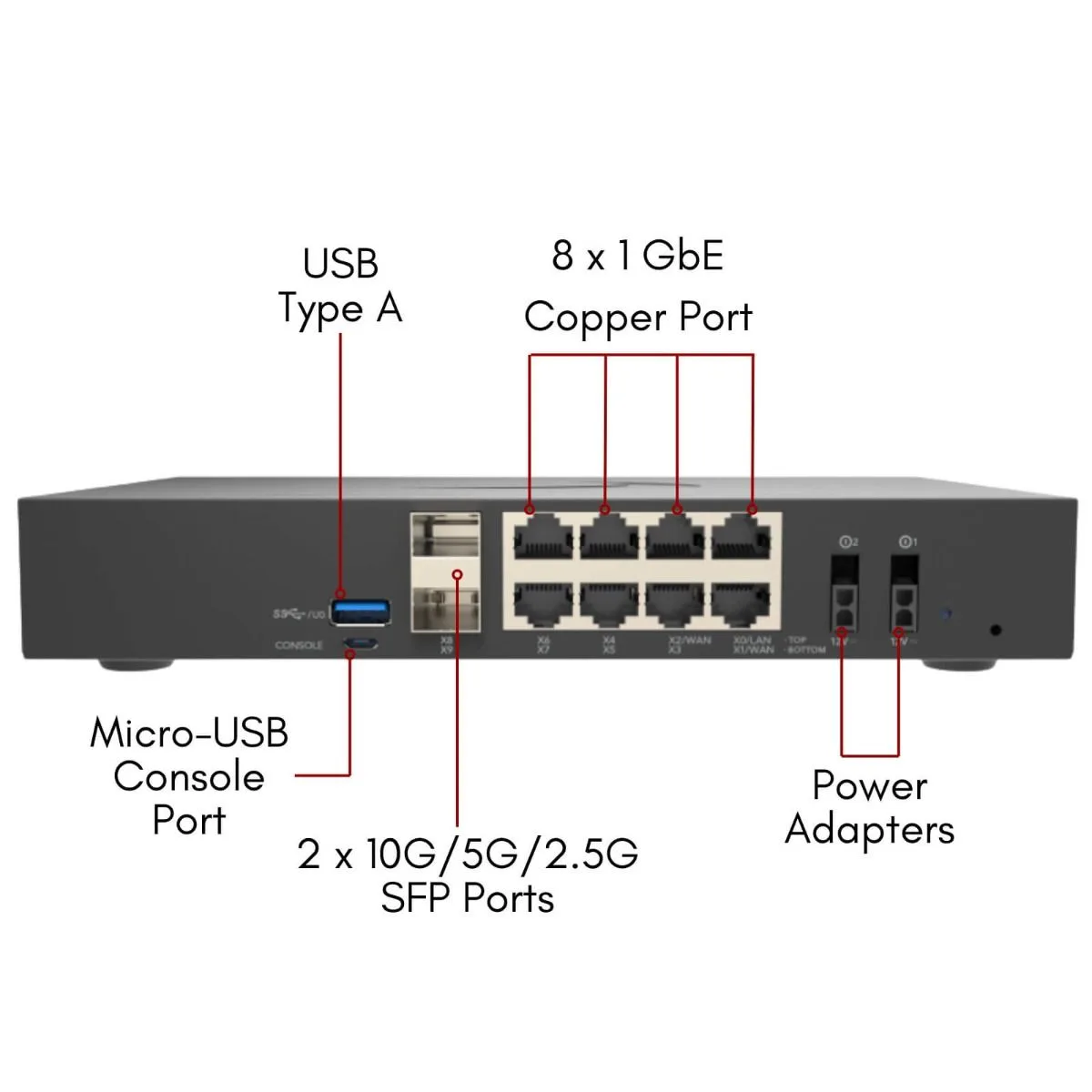

Interfaces: 8 * 1GbE Cu, 2*10G/5G/2.5G/1G SFP, 1 console (Micro-USB), 1 USB (type-C)
Storage /(expansion): (Optional: Up to 512 Gb)
Centralized Management: Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
Logical VLAN and tunnel interfaces (maximum): 256
SAML Single Sign-On (SSO) Users: 2500
Access points supported (maximum): 32
Networking
IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transpa
Shipping weight1.81 kg
Package size356 × 203 × 51 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 8 x 1GbE RJ45 ports connect directly to my existing 1GbE switches and servers?

Yes, the eight copper ports operate at 1GbE and use standard RJ45 connectors compatible with existing 1GbE infrastructure.

How can I confirm the appliance is processing traffic at the rated 5.00 Gbps firewall inspection throughput?

Monitor the real-time throughput graphs in the SonicOS 8 dashboard under System > Diagnostics to verify performance against the 5.00 Gbps specification.

Does the box include SFP transceivers for the 2 x 10G/5G/2.5G/1G SFP ports or must I buy them separately?

The appliance ships without SFP transceivers; compatible 10G, 5G, 2.5G or 1G modules must be purchased separately for the two SFP ports.
