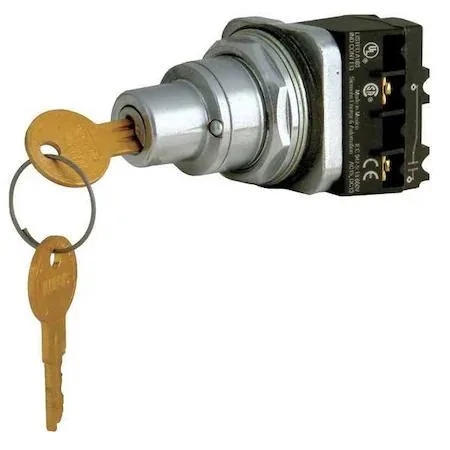

Chrome keyed selector switch, 30 mm metal body, black zinc bezel

SIEMENS

SIEMENS 52SC6AEK1 30 mm keyed selector switch 2 position 10A 600V

SKU CH-MQ33-AA94Z

Keyed 30 mm selector switch with two maintained positions and 10 A 600 V AC contact rating

  • Engine BrandSIEMENS
  • Engine Size30 mm
  • Keyed operation secures access
  • Two maintained positions for simple control
  • 10 A at 600 V AC contact rating
  • Metal operator with zinc bezel resists wear
  • NEMA 1, 3, 4X, 12, 13 and IP66 sealing

Industrial selector switch for control panels

The SIEMENS 52SC6AEK1 is a 30 mm keyed selector switch designed for industrial control panels. It provides two maintained positions with a 1NO contact form for circuit actuation. The chrome metal operator head and zinc bezel suit harsh environments. It is built for operators who need positive mechanical switching with key security.

IP66 and NEMA 4X environmental protection

The switch carries NEMA ratings 1, 3, 3R, 4, 4X, 12, 13 and IP ratings IP20 and IP66. This sealing resists dust, water jets and corrosion in wash-down or outdoor installations. Contact rating is 10A at 600V AC for reliable power switching. No illuminated elements mean lower power draw and simpler wiring.

Cam A cam profile defines switching sequence

The Cam A configuration sets the contact operation: Position A closes the circuit (O), Position B opens it (X), and there is no third position. Keys can be removed in any position for flexible access control. Metal construction throughout resists vibration and impact. Buyers needing momentary action or additional contact blocks cannot use this model.

Highlights

  • Keyed operation secures access
  • Two maintained positions for simple control
  • 10 A at 600 V AC contact rating
  • Metal operator with zinc bezel resists wear
  • NEMA 1, 3, 4X, 12, 13 and IP66 sealing

Specifications

Engine BrandSIEMENS
Engine Size30 mm

Questions about this item

How do I install the 30 mm keyed selector switch into a panel, and what step is commonly missed?

Drill a 30 mm cutout, insert the metal operator head through the front, and secure it with the locking nut from behind; the step often missed is tightening the nut to the specified torque so the bezel seals to IP66.

What maintenance or replacement will the 10A 600V AC contacts need over time?

The 1NO contact block is rated for 10A at 600V AC; under normal duty it requires no scheduled maintenance, but if contact resistance rises or the key mechanism stiffens, replace the entire operator assembly.

Which environmental limit is reached first during continuous operation in a wet, dusty environment?

The IP20 rating at the rear terminals is the first limit; the front achieves IP66 and NEMA 4X, but the terminal side only resists solid objects, not water ingress.
