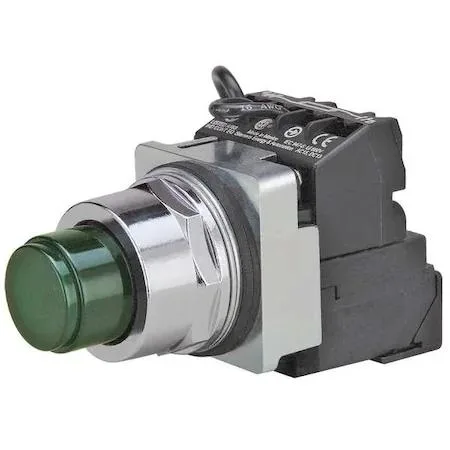

Green illuminated 30 mm push button with chrome bezel

SIEMENS

SIEMENS 52PT6G3AB 30 mm illuminated push button 1NO/1NC green

SKU CH-SECX-SM5SH

A 30 mm illuminated push button with 1NO/1NC contacts, green lens, 10 A at 600 V AC rating, NEMA 1/12/13/3/3R/4/4X and IP20/IP66 protection

  • TypeIndustrial Electrical Controls & Automation
  • Size30 mm
  • Illuminated green button for clear status indication
  • 30 mm diameter fits standard industrial panel cutouts
  • Momentary action with 1NO/1NC contacts for reliable control switching
  • Rated 10A at 600V AC for demanding electrical loads
  • NEMA 1, 3, 4, 12, 13 and IP66 rated for harsh environments

30 mm green illuminated push button

The SIEMENS 52PT6G3AB is a 30 mm industrial push button with a green illuminated head. It provides momentary action for control panels and machinery interfaces. The chrome-plated zinc die-cast bezel and plastic operator head suit harsh environments. It carries NEMA 1, 3, 3R, 4, 4X, 12, 13 and IP20, IP66 ratings for ingress protection.

Contact rating and circuit capacity

The contact form is 1NO/1NC rated at 10A at 600V AC with NEMA designation A600/P600. This capacity handles standard pilot-duty and motor-control circuits in industrial automation. It runs out when loads exceed the 10 ampere or 600 volt AC limits. The screw terminal connection accepts wire sizes appropriate for these ratings.

NEMA and IP environmental sealing

The decisive specification is the combined NEMA 1, 3, 3R, 4, 4X, 12, 13 and IP20, IP66 rating. This sealing level fits indoor and outdoor installations exposed to water, dust, oil and corrosion. Buyers who need a different mounting diameter, a maintained action type or a non-illuminated operator cannot use this part.

Highlights

  • Illuminated green button for clear status indication
  • 30 mm diameter fits standard industrial panel cutouts
  • Momentary action with 1NO/1NC contacts for reliable control switching
  • Rated 10A at 600V AC for demanding electrical loads
  • NEMA 1, 3, 4, 12, 13 and IP66 rated for harsh environments

Specifications

BrandSIEMENS
TypeIndustrial Electrical Controls & Automation
Size30 mm

Questions about this item

Will the 30 mm cut-out match the panel holes on my existing 30 mm operator stations?

Yes — the operator is built for a standard 30 mm mounting hole, so it fits the same cut-out used by other 30 mm push buttons and pilot lights you already have installed.

How can I confirm the green illumination and both contacts operate correctly after wiring?

Apply control voltage to the lamp terminals — the green lens lights — then press the button; the 1NO contact closes and the 1NC contact opens, which you can verify with a continuity tester on the screw terminals.

Does the package include the contact block and legend plate, or must I order them separately?

The 1NO/1NC contact block is integrated into the operator; no separate block is needed. A legend plate is not supplied — order one separately if your panel requires labelling.
