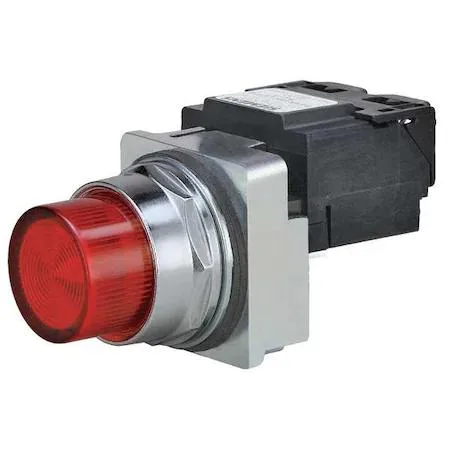

SIEMENS 30 mm red LED pilot light round metal body plastic lens screw terminals

SIEMENS

SIEMENS 52PL4G2XB Pilot Light LED 120V 30mm RD

SKU CH-CDQN-WQK1Q

A 30 mm red LED pilot light for 120 V AC panels with IP66 and NEMA 4X sealing

  • TypeIndustrial Electrical Controls & Automation
  • Size30 mm
  • 120 V AC LED pilot light for clear status indication
  • 30 mm round red lens fits standard panel cut-outs
  • NEMA 1 3 3R 4 4X 12 13 rated for indoor and outdoor use
  • IP20 and IP66 sealing protects against dust and water jets
  • CSA and UL Listed for code-compliant installations

Pilot Light 120 V AC 30 mm

This SIEMENS pilot light is a round 30 mm indicator designed for 120 V AC control circuits. It uses a single red LED behind a plastic lens with concentric rings. The metal body carries NEMA 1, 3, 3R, 4, 4X, 12 and 13 ratings plus IP20 and IP66 protection. Screw terminals accept the supply wiring and the unit includes the lamp module.

Sustained operation with LED source

The LED lamp runs on 6 V AC/DC supplied by the built-in transformer module. Because the light source is a single LED, heat output remains low during continuous duty. The transformer isolates the lamp from line voltage, so the indicator can stay illuminated for long periods without thermal stress on the lens or housing. No replacement lamps are required.

NEMA and IP enclosure limits

The enclosure meets NEMA 1, 3, 3R, 4, 4X, 12 and 13 for indoor and outdoor use against dirt, water and corrosion. IP20 protects against finger contact, while IP66 withstands powerful water jets. The assembly is not rated for submersion or for hazardous-location atmospheres. Installers must verify that the mounting surface and conduit seals maintain the stated ratings.

Highlights

  • 120 V AC LED pilot light for clear status indication
  • 30 mm round red lens fits standard panel cut-outs
  • NEMA 1 3 3R 4 4X 12 13 rated for indoor and outdoor use
  • IP20 and IP66 sealing protects against dust and water jets
  • CSA and UL Listed for code-compliant installations

Specifications

BrandSIEMENS
TypeIndustrial Electrical Controls & Automation
Size30 mm

Questions about this item

Does the 120 V LED pilot light generate noticeable heat when left on continuously?

The LED lamp runs at only 6 V and draws minimal current, so the 30 mm metal body stays cool even during all-day operation.

What mounting hardware and wiring must I already have to install this 30 mm pilot light?

You need a standard 30 mm panel cut-out and screw-terminal wiring; the unit includes the lamp module and transformer, so no separate lamp holder is required.

Will the NEMA 4X and IP66 ratings protect the red lens when mounted next to older NEMA 12 enclosures?

Yes, the concentric-ring plastic lens and metal body meet NEMA 1, 3, 3R, 4, 4X, 12, 13 and IP20, IP66, so it seals against the same dust and wash-down conditions as legacy NEMA 12 gear.
