Red illuminated mushroom push button 30mm epoxy metal head black bezel 120V AC

SIEMENS

SIEMENS 52BP2E2A Illuminated Push Button 30mm 1NO/1NC Red 120V AC

SKU CH-NXNP-CB7R8

A 30 mm illuminated push button with a 44 mm mushroom head, 1NO/1NC contacts rated at 10 A / 600 V AC and a 120 V AC incandescent lamp

  • Red mushroom head gives clear visual status
  • 30 mm mounting fits standard panel cut-outs
  • 1NO/1NC contacts switch two circuits at once
  • 120 V AC incandescent lamp lights without extra transformer
  • NEMA 1, 3, 3R, 4, 4X, 12, 13 rated for harsh environments

Illuminated Push Button 30mm Red

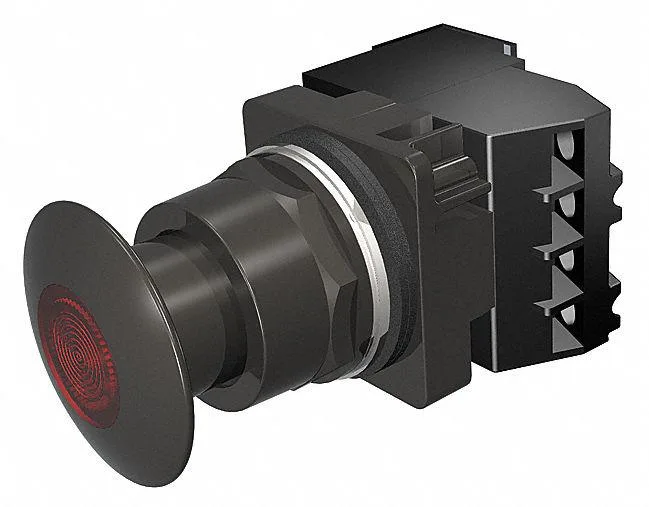

The SIEMENS 52BP2E2A is a 30 mm illuminated push button with a red 44 mm mushroom head and a black epoxy coated zinc die cast bezel. It provides a 1NO/1NC contact form rated at 10A and 600V AC with NEMA A600/P600 designation. The maintained pull and maintained push operator suits industrial control panels requiring clear visual status indication.

Verify Voltage And Mounting Compatibility

Confirm the control circuit operates at 120V AC to match the full voltage incandescent lamp module and the specified replacement lamp TEL/120MB. Ensure the panel cutout accepts a 30 mm operator and that the NEMA 1, 3, 3R, 4, 4X, 12, 13 environmental ratings meet the enclosure requirements. Buyers needing a different lamp voltage or a momentary action operator should select another device.

Incandescent Lamp Module Included

The factory fitted full voltage incandescent lamp module allows immediate illumination at 120V AC without a separate transformer or resistor. A replacement lamp with manufacturer number TEL/120MB is identified for maintenance. No LED module, additional contact blocks, legend plates or wiring accessories are supplied with this unit.

Highlights

  • Red mushroom head gives clear visual status
  • 30 mm mounting fits standard panel cut-outs
  • 1NO/1NC contacts switch two circuits at once
  • 120 V AC incandescent lamp lights without extra transformer
  • NEMA 1, 3, 3R, 4, 4X, 12, 13 rated for harsh environments

Specifications

BrandSIEMENS

Questions about this item

Does the illuminated push button include the incandescent lamp or must it be purchased separately?

The unit ships with the 120 V AC incandescent lamp installed; a replacement lamp uses manufacturer number TEL/120MB.

Which contact form suits a circuit needing one normally open and one normally closed contact?

The 1NO/1NC configuration provides exactly one normally open and one normally closed contact.

What does the 10 A at 600 V AC rating mean for a control panel circuit?

The contacts can switch up to 10 amperes at 600 volts AC, matching NEMA A600/P600 duty.
