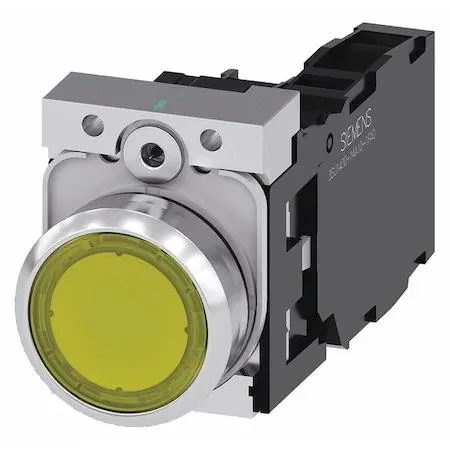

Yellow illuminated push button, 22 mm, flush plastic head, nickel-plated brass bezel

SIEMENS

SIEMENS 3SU1152-0AB30-1FA0 Illuminated Push Button Yellow 1NO/1NC 22 mm

SKU CH-XYXD-V90KH

Yellow illuminated push button, 22 mm, momentary flush action, 1NO/1NC contacts rated 10 A at 600 V AC, IP66/IP67/IP69K sealed, NEMA 1/12/2/3/3R/4/4X

  • Illuminated yellow button for clear status indication
  • 1NO/1NC contacts switch both make and break circuits
  • IP66 IP67 IP69 IP69K ratings resist dust and high-pressure washdown
  • NEMA 1 12 2 3 3R 4 4X enclosures suit indoor and outdoor use
  • Screw terminals provide secure wiring connections

SIEMENS 22 mm Illuminated Push Button

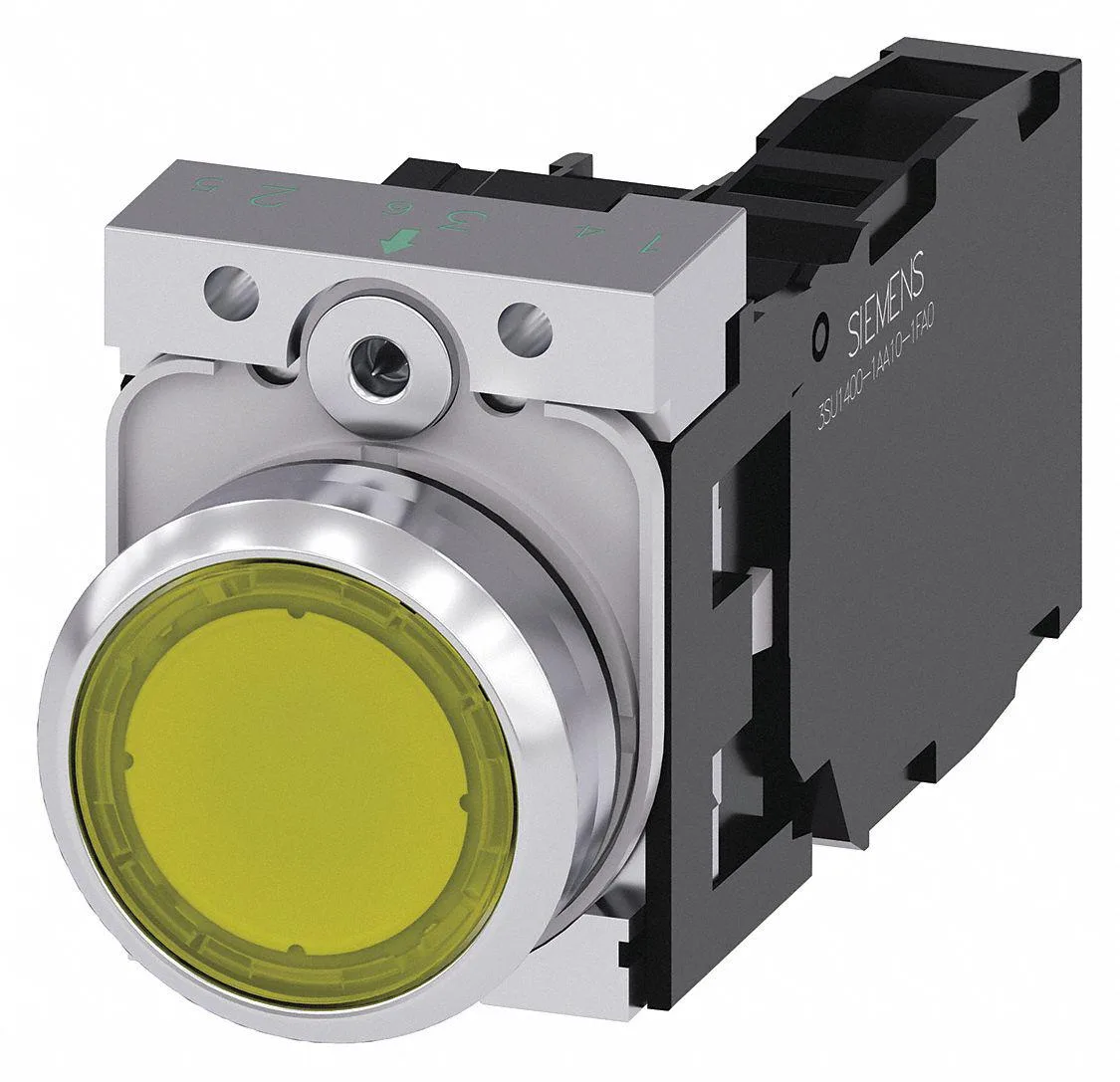

The SIEMENS 3SU1152-0AB30-1FA0 is a 22 mm yellow illuminated push button designed for industrial control panels. It features momentary action with a flush plastic operator and a nickel-plated brass and zinc die-cast bezel. The unit carries 1NO/1NC contacts rated at 10A @ 600V AC and 5A @ 600V DC, meeting NEMA A600/R300 designation. It suits engineers specifying safety switches and disconnects for machinery interfaces.

Replaces non-illuminated or lower-rated operators

This device upgrades panels that previously used non-illuminated momentary buttons or units lacking IP66, IP67, IP69 and IP69K sealing. The jump is worth it when operators need visible status confirmation in wet, dusty or high-pressure wash-down environments. Screw terminal connections simplify retrofit wiring without specialised tooling. It meets CAS, REACH and WEEE 2012/19/EU compliance for regulated markets.

Handles 10 A AC and 5 A DC control circuits

The contact block comfortably manages standard relay coils, contactors and pilot lights within the 600 V AC/DC rating. Headroom exists for brief inrush currents typical of electromagnetic loads. It runs out when applications demand maintained action, higher contact counts or voltage ratings beyond the NEMA A600/R300 envelope. Buyers needing dual operators or legend plates must select alternative series.

Highlights

  • Illuminated yellow button for clear status indication
  • 1NO/1NC contacts switch both make and break circuits
  • IP66 IP67 IP69 IP69K ratings resist dust and high-pressure washdown
  • NEMA 1 12 2 3 3R 4 4X enclosures suit indoor and outdoor use
  • Screw terminals provide secure wiring connections

Specifications

BrandSIEMENS

Questions about this item

What panel cut-out does the 22 mm illuminated push button require?

The operator fits a standard 22 mm panel cut-out with a nickel-plated brass and zinc die-cast bezel.

How is the screw terminal wired, and which step is often missed?

Strip each conductor, insert it into the screw terminal and tighten to the specified torque; the step often missed is verifying the 1NO/1NC contact block orientation before final tightening.

Which components will need replacement after extended use?

The yellow illuminated lens and the 1NO/1NC contact block are the wear items; the IP66, IP67, IP69 and IP69K seals are designed for the device life.
