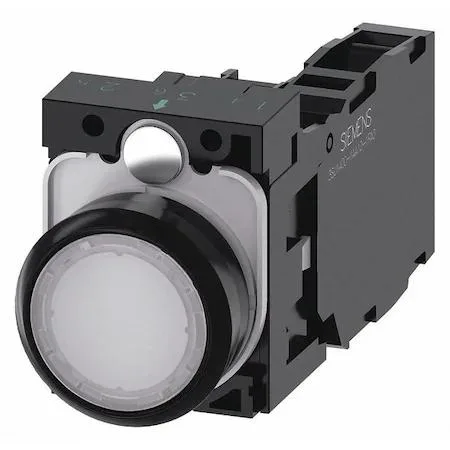

White illuminated push button 22 mm flush plastic head 1NO/1NC contacts

SIEMENS

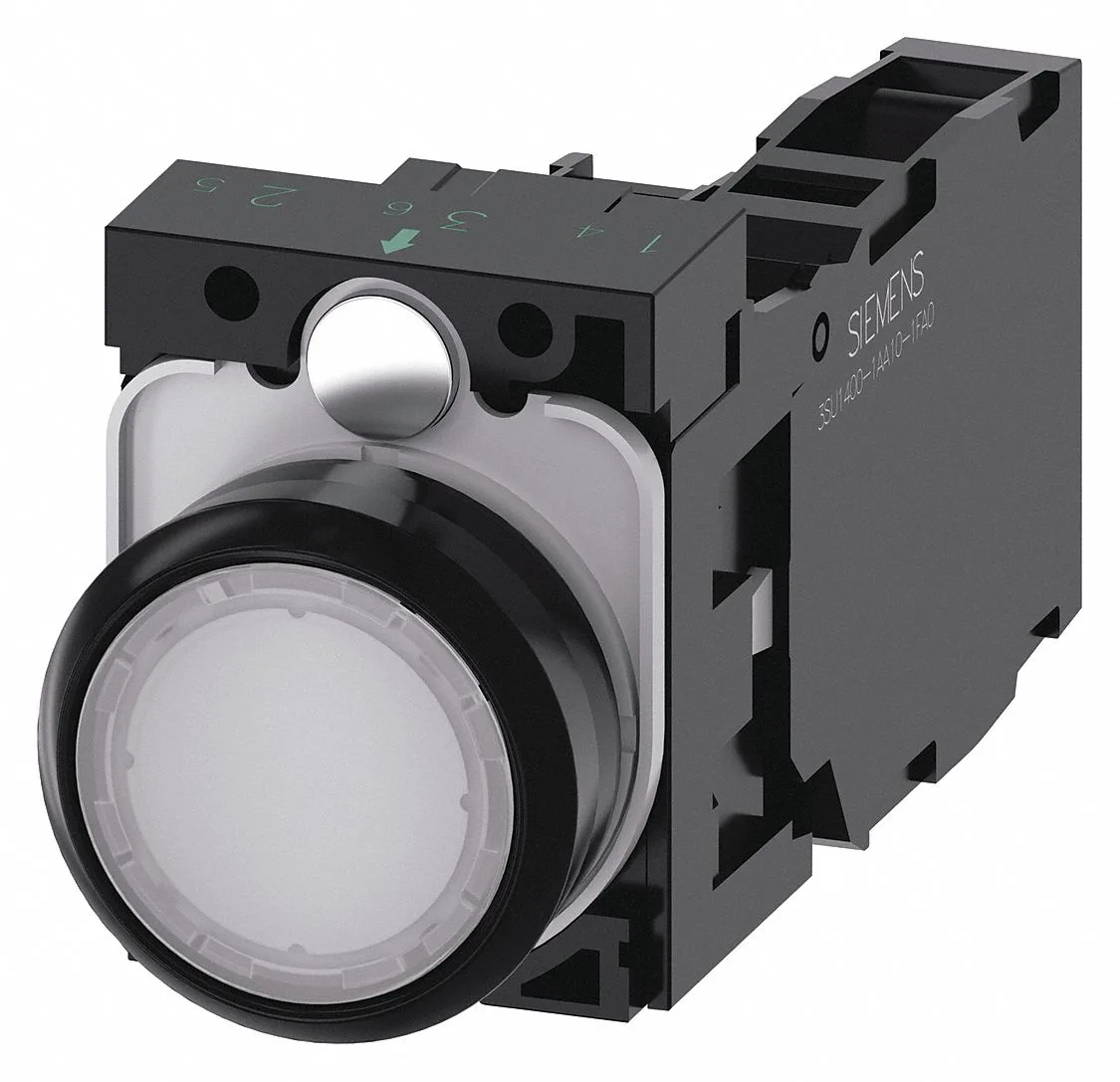

SIEMENS 3SU1102-0AB60-1FA0 Illuminated Push Button 22 mm White 1NO/1NC

SKU CH-JHY5-EKCFC

White 22 mm illuminated push button with momentary flush action, 1NO/1NC contacts rated 10 A at 600 V AC and 5 A at 600 V DC, IP66/IP67/IP69/IP69K and NEMA 1, 12, 2, 3, 3R, 4, 4X

  • Momentary flush action gives reliable operator control
  • White LED illumination provides clear status indication
  • 1NO/1NC contacts rated 10A at 600V AC
  • IP66/IP67/IP69K sealing withstands harsh environments
  • NEMA 1,12,2,3,3R,4,4X enclosure suits industrial panels

Illuminated 22 mm push button for control panels

This Siemens 3SU1102-0AB60-1FA0 is a white, momentary illuminated push button designed for 22 mm panel cut-outs. It suits industrial control panels and machine interfaces that need a single operator with visual status indication. The unit carries a 10 A rating at 600 V AC and a 5 A rating at 600 V DC with an A600/R300 contact designation.

Simple screw-terminal wiring with robust sealing

Installation uses screw terminals for secure conductor connection and fits a standard 22 mm mounting hole. The flush plastic head and plastic bezel provide NEMA 1, 12, 2, 3, 3R, 4, 4X and IP66, IP67, IP69, IP69K protection. Mis-wiring the 1NO/1NC contact block or exceeding the rated voltage are the most common errors.

Verify panel cut-out, voltage

Confirm the panel provides a 22 mm cut-out and that the supply voltage stays within the 600 V AC/DC contact rating. Ensure the operating environment matches the declared NEMA and IP ratings for dust, water and high-pressure wash-down. The device complies with CAS, REACH and WEEE (2012/19/EU) requirements.

Highlights

  • Momentary flush action gives reliable operator control
  • White LED illumination provides clear status indication
  • 1NO/1NC contacts rated 10A at 600V AC
  • IP66/IP67/IP69K sealing withstands harsh environments
  • NEMA 1,12,2,3,3R,4,4X enclosure suits industrial panels

Specifications

BrandSIEMENS

Questions about this item

How can I verify the push button is operating correctly once installed?

Press the flush white operator and confirm the momentary action returns smoothly; the 1NO/1NC contacts should switch cleanly at 10 A / 600 V AC or 5 A / 600 V DC.

What components are included and what must I supply separately?

The unit ships as a complete 22 mm illuminated push button with plastic bezel, screw terminals and IP66/IP67/IP69/IP69K sealing; you provide wiring and a suitable 22 mm panel cut-out.

Which contact rating and NEMA/IP configuration should I select for my application?

Choose the 1NO/1NC version rated A600/R300 with NEMA 1, 12, 2, 3, 3R, 4, 4X and IP66/IP67/IP69/IP69K for wet or dusty environments.
