Sick WT160-F460 Photoelectric Proximity Sensor PNP
Detects objects up to 115 mm using background-suppression photoelectric sensing with a visible red LED, PNP switching output and IP67-rated rectangular plastic housing
- Detects objects up to 115 mm with background suppression
- Visible red LED at 680 nm wavelength for clear sensing
- PNP output with selectable light or dark switching
- IP67 enclosure withstands dust and water ingress
- Operates from –25 °C to +55 °C ambient temperature
Industrial Photoelectric Proximity Sensor

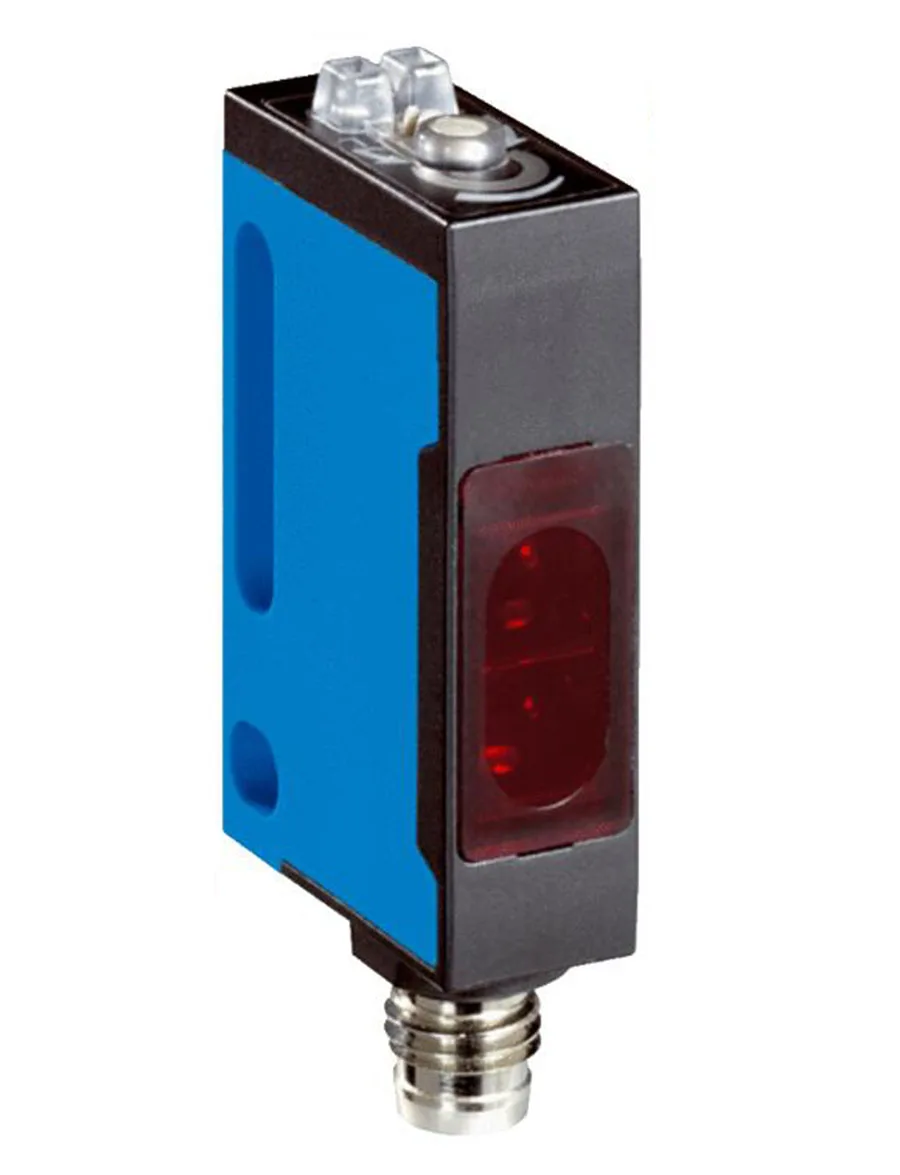

The SICK WT160-F460 is a compact rectangular photoelectric proximity sensor designed for industrial automation tasks. It uses visible red LED light at 680 nm with background suppression to detect objects reliably. The sensor operates on a 10 V DC to 30 V DC supply voltage with a low power consumption of 25 mA. Its IP67 enclosure rating ensures suitability for harsh environments.
Sensing Range and Output Configuration
The sensor offers a maximum sensing range of 0 mm to 115 mm with a defined operating range up to 100 mm. It provides a PNP switching output with selectable light/dark switching mode via a rotary switch. A fast response time of 0.5 ms supports high-speed detection applications. Connection is made via a male M8 4-pin connector for secure integration.
Mounting and Environmental Durability

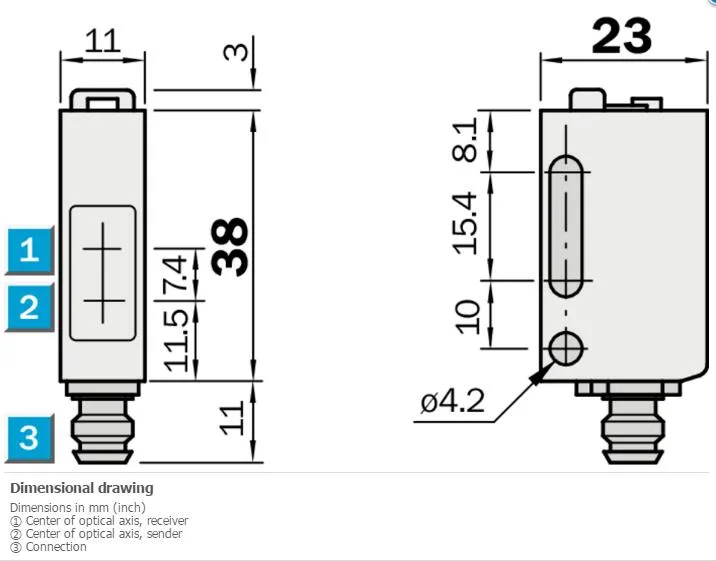

The compact housing measures 11 mm x 38 mm x 23 mm and uses PBT plastic with PMMA optics for chemical resistance. It withstands ambient operating temperatures from –25 °C to +55 °C and storage temperatures down to –40 °C. UL certification under file numbers NRNT2.E128350 and NRNT8.E128350 confirms compliance with safety standards. No mounting brackets or cables are included in the package.
Highlights
- Detects objects up to 115 mm with background suppression
- Visible red LED at 680 nm wavelength for clear sensing
- PNP output with selectable light or dark switching
- IP67 enclosure withstands dust and water ingress
- Operates from –25 °C to +55 °C ambient temperature
Specifications
| Brand | SICK |
|---|---|
| Model | SICK WT160-F460 |
Questions about this item
What does the 115 mm maximum sensing range mean for reliable detection on a conveyor?
The sensor can detect objects up to 115 mm away, but the specified sensing range for consistent operation is 0 to 100 mm using visible red light at 680 nm.
How does the M8 4-pin connector limit the supply voltage and output configuration?
The connector carries a 10 to 30 V DC supply with ±10 % ripple tolerance and delivers a PNP switching output selectable for light or dark switching via the rotary switch.
Will the 11 mm by 38 mm by 23 mm plastic housing fit in a tight machine frame and survive wash-downs?
The compact rectangular PBT housing measures 11 mm wide, 38 mm high and 23 mm deep, and the IP67 enclosure rating protects against dust and temporary immersion.
