Small rectangular plastic sensor with red LED and 2m cable

Sick

Sick WT150-P162 Photoelectric Proximity Sensor PNP electrician tool

SKU CH-1EN2-H5ZVW

A photoelectric proximity sensor with background suppression, 2 mm to 100 mm sensing range, visible red LED, PNP output, 10–30 V DC supply, IP67 enclosure, and 2 m PVC cable

  • Background suppression detects objects reliably at 2 mm to 100 mm
  • Visible red LED with 5° dispersion enables precise alignment
  • Potentiometer with 5 turns allows fine sensitivity adjustment
  • PNP output switches up to 100 mA at 1,000 Hz
  • IP67-rated ABS housing withstands –25 °C to +55 °C operation

Industrial photoelectric sensor

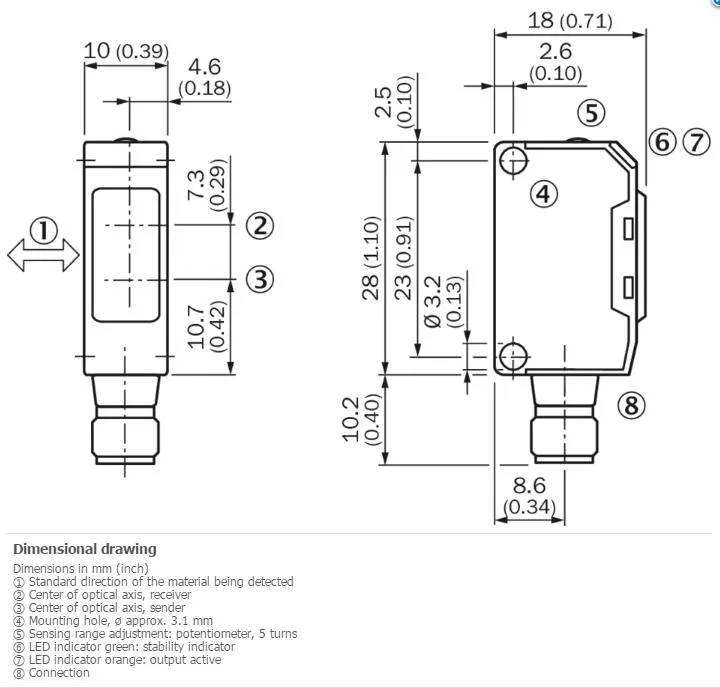

The Sick WT150-P162 is a background-suppression photoelectric proximity sensor designed for automation and electrical-installation tasks. Its rectangular ABS housing measures 10 mm by 28 mm by 18 mm and weighs 44 grams. A 2-metre PVC cable with four 0.18 mm² conductors provides the electrical connection. The unit is rated IP67 and operates from –25 °C to +55 °C.

Sensing range and output

The sensor detects objects from 2 mm to 100 mm using a visible red LED with an approximate 5° dispersion angle. A five-turn potentiometer allows fine adjustment of the sensing distance. The PNP output switches up to 100 mA with selectable light or dark switching via the L/D control cable. Switching frequency reaches 1,000 Hz and response time is 0.5 ms.

Supply voltage and protection

The device accepts 10 V DC to 30 V DC with a ±10 % ripple tolerance and draws 20 mA. Built-in circuit protection covers categories A through D and the sensor meets protection class II. A BEF-W150-A mounting bracket is included. UL certification is listed under file numbers NRNT2.E128350 and NRNT8.E128350.

Highlights

  • Background suppression detects objects reliably at 2 mm to 100 mm
  • Visible red LED with 5° dispersion enables precise alignment
  • Potentiometer with 5 turns allows fine sensitivity adjustment
  • PNP output switches up to 100 mA at 1,000 Hz
  • IP67-rated ABS housing withstands –25 °C to +55 °C operation

Specifications

BrandSICK
ModelSICK WT150-P162

Questions about this item

How does the 10 mm wide rectangular housing fit alongside legacy sensors on a DIN rail?

The sensor measures 10 mm wide by 28 mm high by 18 mm deep with an ABS plastic housing, so it occupies a narrow footprint that can sit beside older block-style sensors without rail adapters.

What visual indication confirms the WT150-P162 is detecting targets within its 2 mm to 100 mm background-suppression range?

The visible red LED emits a 5° spot; when the potentiometer is tuned, the output LED on the housing lights each time the PNP output switches at up to 1 000 Hz.

Does the package include the 4-wire PVC cable and mounting bracket, or must I order them separately?

The box contains the sensor with a pre-wired 2 m 4-wire PVC cable and the BEF-W150-A mounting bracket; no additional cables or brackets are required.
