Sick WS/WE12L-2P430 photoelectric sensor PNP
A through-beam photoelectric sensor with laser light source detecting objects up to 80 m using visible red light at 650 nm
- Visible red laser spots objects up to 80 m away
- 5 kHz switching catches fast-moving targets reliably
- IP67 and IP69K metal housing survives harsh wash-downs
- 10–30 V DC supply fits standard industrial power rails
- Compact 15 × 49 × 41.5 mm body fits tight machine spaces
Through-beam sensor with 80 m range
The Sick WS/WE12L-2P430 is a rectangular through-beam photoelectric sensor designed for industrial detection tasks. It uses a visible red laser operating at 650 nm with a spot diameter of 150 mm at 60 m. The sensor suits applications requiring detection of small objects or items moving at high speeds. Its metal housing and IP67/IP69K ratings allow use in harsh environments.
Sustained switching at 2 500 Hz
Under continuous operation the sensor maintains a switching frequency of 2 500 Hz with a response time of 200 µs. The sender draws 45 mA and the receiver 15 mA from a 10 V DC to 30 V DC supply with 5 Vpp ripple tolerance. PNP output delivers up to 100 mA with signal voltages of Uv minus less than 2.9 V for HIGH and 1.5 V or less for LOW. Circuit protection covers reverse polarity, short-circuit and overload conditions.
M12 connector limits cable integration

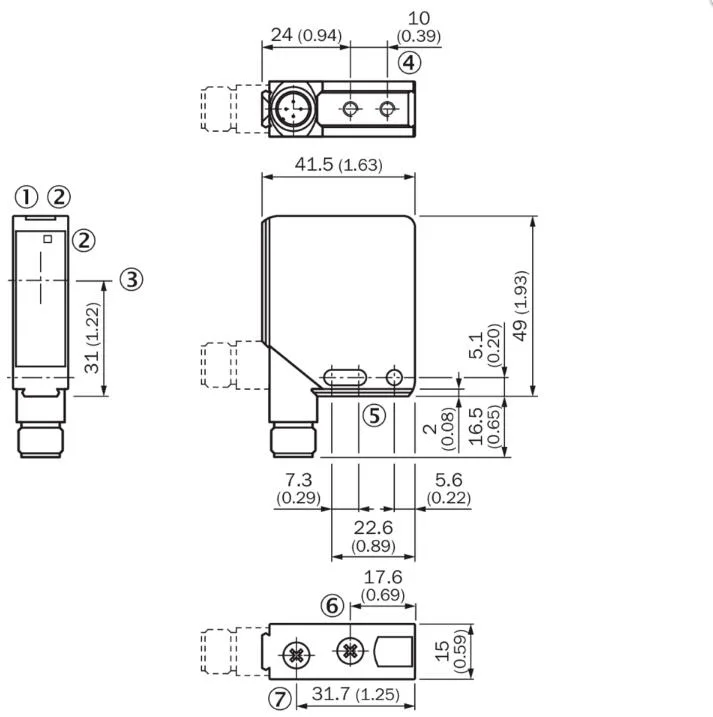

Connection is made through a male M12 4-pin connector, fixing the pin count and cable type for installation. The enclosure meets IP67 and IP69K, so the interface survives high-pressure washdown but does not exceed those ingress ratings. Operating temperature spans minus 10 °C to plus 50 °C, setting the environmental boundary for reliable signal transmission. The housing measures 15 mm by 49 mm by 41.5 mm and weighs 260 g.
Highlights
- Visible red laser spots objects up to 80 m away
- 5 kHz switching catches fast-moving targets reliably
- IP67 and IP69K metal housing survives harsh wash-downs
- 10–30 V DC supply fits standard industrial power rails
- Compact 15 × 49 × 41.5 mm body fits tight machine spaces
Specifications
| Brand | SICK |
|---|---|
| Model | SICK WS / WE12L-2P430 |
Questions about this item
How much power does the WS/WE12L-2P430 draw when it runs continuously?
The sender uses 45 mA and the receiver 15 mA at 10–30 V DC, so total consumption stays below 60 mA.
What voltage supply and connector does the sensor need to operate?
It requires 10–30 V DC and connects via a 4-pin M12 male plug.
Will the 650 nm laser spot stay small enough to detect fast-moving parts on an older conveyor line?
At 60 m the spot is Ø 150 mm and the sensor switches at 2,500 Hz, suitable for high-speed detection.
