Sick WL9L-3P2232 Photoelectric Sensor PNP
A compact photoelectric retro-reflective sensor with laser light source, PNP complementary output, M8 connector and IP66/IP67/IP69K enclosure
- Detects tiny objects with a 1 mm laser spot at 500 mm
- Sensing range up to 12 metres for flexible mounting
- IP66, IP67 and IP69K ratings withstand harsh wash-down environments
- Fast 0.5 ms response time suits high-speed automation lines
- Compact 12.2 x 49.8 x 23.6 mm housing fits tight spaces

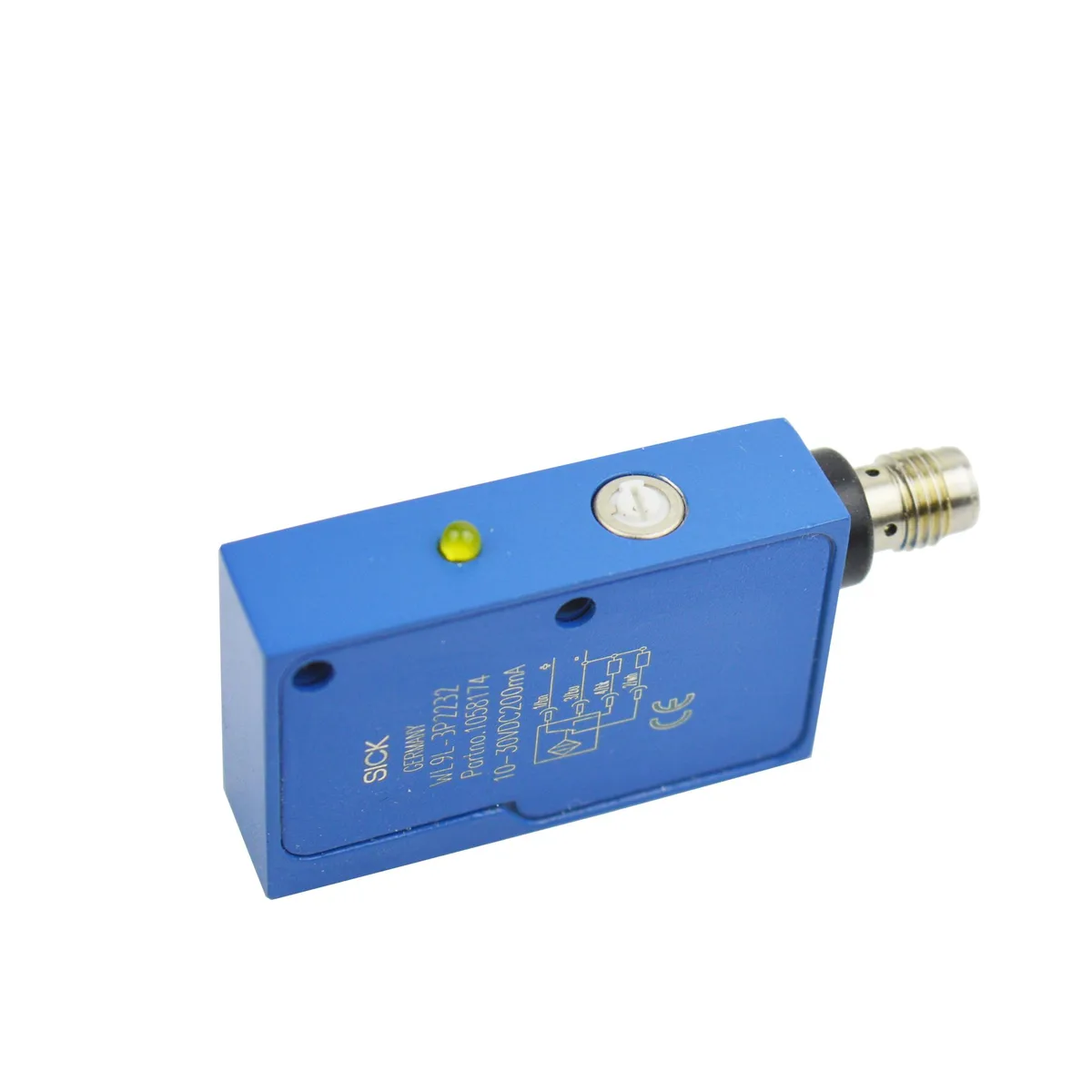

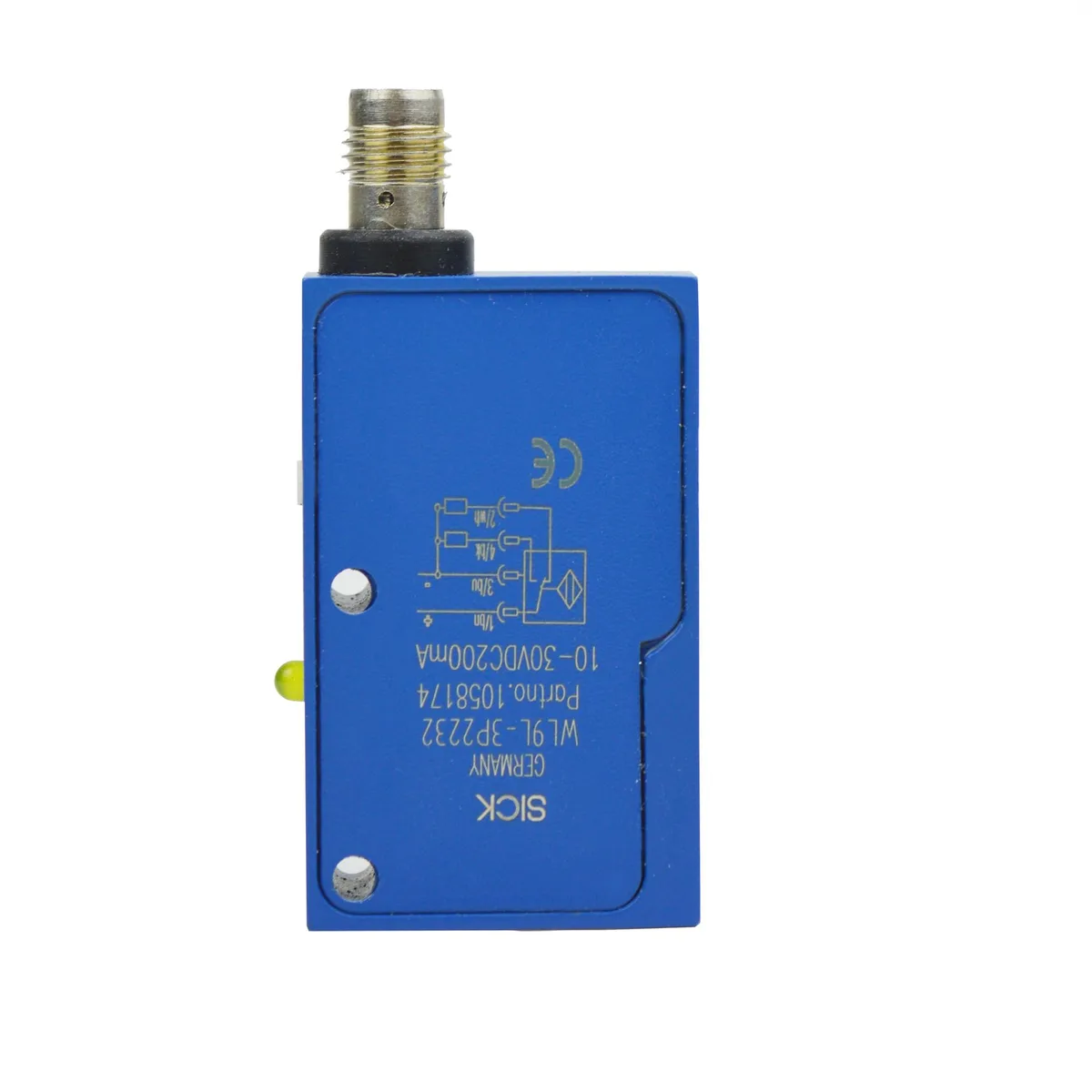

Sick WL9L-3P2232 photoelectric sensor
The Sick WL9L-3P2232 is a compact retro-reflective photoelectric sensor with autocollimation and a visible red laser. It provides PNP complementary output for industrial detection tasks. The rectangular plastic housing measures 12.2 mm by 49.8 mm by 23.6 mm and weighs 13 g. It suits automation engineers needing precise small-object detection.
Sensing range and output limits
Maximum sensing range reaches 12 m with a defined range up to 8 m. The laser spot measures Ø 1 mm at 500 mm distance. Switching frequency is 1,000 Hz with a 0.5 ms response time. Output current is limited to 100 mA. Supply voltage must stay between 10 V DC and 30 V DC with ripple below 5 Vpp.
Mounting and connection checklist
Verify an M3 mounting hole pattern fits your bracket. Confirm an M8 4-pin male connector matches your cable assembly. Ensure ambient temperature stays within 10 °C to +50 °C for standard operation. The IP66, IP67 and IP69K ratings suit wash-down environments. Check that PNP complementary switching matches your controller logic.
Highlights
- Detects tiny objects with a 1 mm laser spot at 500 mm
- Sensing range up to 12 metres for flexible mounting
- IP66, IP67 and IP69K ratings withstand harsh wash-down environments
- Fast 0.5 ms response time suits high-speed automation lines
- Compact 12.2 x 49.8 x 23.6 mm housing fits tight spaces
Specifications
| Brand | SICK |
|---|---|
| Model | SICK WL9L-3P2232 |
Questions about this item
Which sensing range version suits a 10 m detection task?
The sensor offers a maximum sensing range of 0 m to 12 m and a sensing range of 0 m to 8 m; choose the 12 m version for a 10 m task
What does the 0.5 ms response time mean on a fast conveyor line?
A 0.5 ms response time allows the sensor to detect objects at speeds up to 1,000 Hz switching frequency, suitable for high-speed automation
What does the M8 4-pin connection limit in a 10 V DC to 30 V DC system?
The M8 4-pin male connector carries PNP complementary output with light/dark switching and a maximum output current of 100 mA within the 10 V DC to 30 V DC supply range
