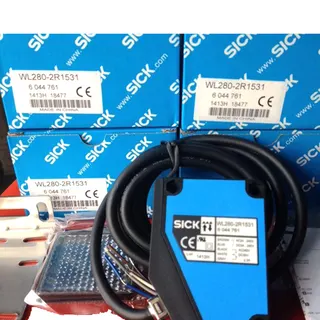

Rectangular plastic sensor with cable and mounting bracket, red LED indicator visible

Sick

Sick WL280-2R1531 Photoelectric Retro-reflective Sensor

SKU CH-A7BY-J15TE

A photoelectric retro-reflective sensor detecting objects from 0.01 m to 15 m with a visible red LED and relay change-over output

  • Detects objects up to 15 m away with photoelectric retro-reflective sensing
  • Operates on 24 V to 240 V AC or DC for flexible power integration
  • Relay change-over contacts switch 3 A at 240 V AC or 30 V DC
  • IP66 and IP67 enclosure rating withstands dust and water ingress
  • Compact 23.5 mm x 74.5 mm x 63 mm housing fits tight installations

Compact sensor for automated detection

The Sick WL280-2R1531 is a photoelectric retro-reflective sensor designed for industrial automation and safety applications. It uses visible red light from an LED source to detect objects across a sensing range of 0.01 m to 15 m. The dual-lens rectangular housing suits conveyor lines, packaging equipment and material-handling systems where reliable presence detection is required.

ABS housing with IP66 and IP67 sealing

The sensor measures 23.5 mm wide by 74.5 mm high by 63 mm deep and weighs 150 g. Its plastic ABS housing and PMMA optics resist dust and temporary immersion, while the supplied mounting bracket BEF-W280 and reflector P250 simplify installation. A 2 m PVC cable with five 0.76 mm² conductors carries power and the relay output, which provides electrically isolated change-over contacts rated at 3 A for 240 V AC or 30 V DC.

Low power draw with 15 ms response

Operating on 24 V to 240 V AC or DC, the unit consumes no more than 5 VA and switches at up to 33 Hz. The potentiometer adjustment lets technicians set the switching threshold for light-mode operation, and the 15 ms response time supports fast production cycles. Protection class II and overvoltage category 3 circuitry meet EN 60947-5-2 and EN 61000-6-3 requirements for industrial electromagnetic environments.

Highlights

  • Detects objects up to 15 m away with photoelectric retro-reflective sensing
  • Operates on 24 V to 240 V AC or DC for flexible power integration
  • Relay change-over contacts switch 3 A at 240 V AC or 30 V DC
  • IP66 and IP67 enclosure rating withstands dust and water ingress
  • Compact 23.5 mm x 74.5 mm x 63 mm housing fits tight installations

Specifications

BrandSICK
ModelSICK WL280-2R1531

Questions about this item

What is the maximum sensing range of the retro-reflective sensor?

The sensor detects objects from 0.01 m up to 15 m with a reflector, and the rated sensing range is 0.01 m to 13 m under typical conditions.

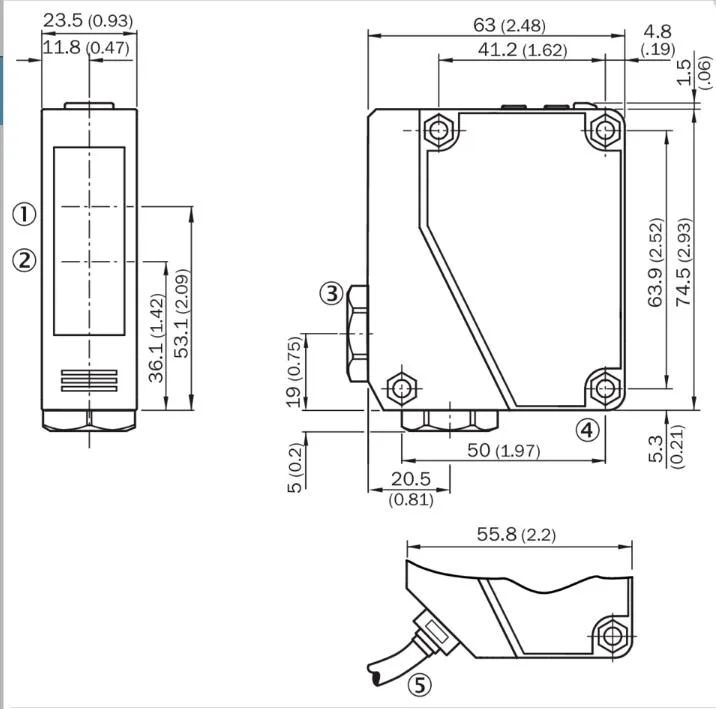

What are the overall dimensions and mounting hole pattern for the rectangular housing?

The housing measures 23.5 mm wide, 74.5 mm high and 63 mm deep, and a BEF-W280 mounting bracket is included for installation.

How is the sensor wired and which terminal functions are used for the relay output?

A 2 m, 5-wire PVC cable with 0.76 mm² conductors connects the supply (24–240 V AC/DC) and the change-over relay contacts for light-switching operation.
