Rectangular plastic photoelectric sensor with M12 connector and potentiometer adjuster

Sick

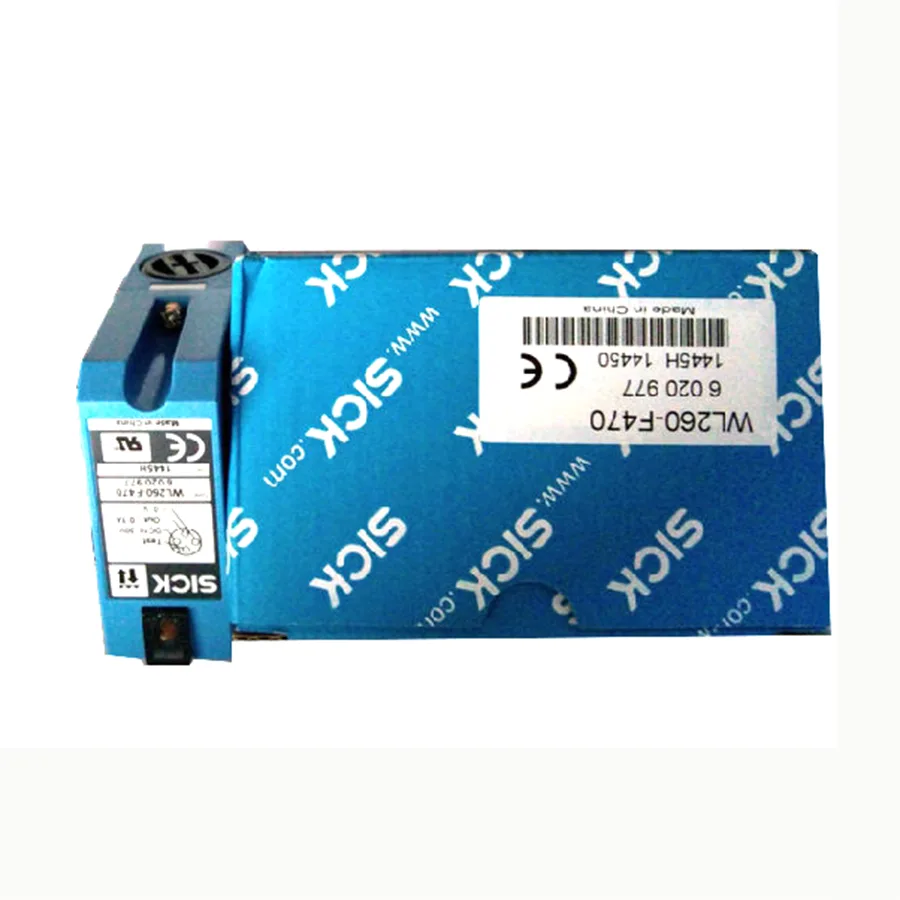

Sick WL260-F470 Photoelectric Retro-Reflective Sensor PNP

SKU CH-QSGD-MBTHJ

Photoelectric retro-reflective sensor with PNP output, 0.01 m to 14 m sensing range, 10–30 V DC supply, IP67 enclosure, and M12 connector

  • Detects objects up to 14 m with retro-reflective sensing
  • PNP output handles 100 mA for direct load switching
  • IP67 enclosure resists dust and water ingress
  • Operates from –25 °C to +55 °C in harsh environments
  • Includes P250 reflector and mounting bracket for quick setup

Industrial sensing for automation engineers

The SICK WL260-F470 is a photoelectric retro-reflective sensor designed for industrial automation tasks. Its PNP switching output and selectable light/dark mode suit PLC integration in packaging, material handling and assembly lines.

Range and response in practice

The sensor detects targets from 0.01 m up to 14 m maximum, with a typical operating range of 9.5 m or 11.5 m depending on reflector choice. A 1.5 ms response time and 333 Hz switching frequency support fast conveyor sequences, while the visible red LED spot reaches 240 mm diameter at 8 m distance.

Bundled reflector and bracket simplify mounting

Supplied P250 reflector and BEF-W260 mounting bracket enable immediate installation without separate procurement. The IP67-rated ABS housing tolerates wash-down environments from –25 °C to +55 °C, and the M12 4-pin connector fits standard fieldbus cabling.

Highlights

  • Detects objects up to 14 m with retro-reflective sensing
  • PNP output handles 100 mA for direct load switching
  • IP67 enclosure resists dust and water ingress
  • Operates from –25 °C to +55 °C in harsh environments
  • Includes P250 reflector and mounting bracket for quick setup

Specifications

BrandSick
ModelSICK WL260-F470

Questions about this item

Will the sensor's 10 V DC to 30 V DC supply voltage work with my existing 24 V DC control system?

Yes, the sensor operates on a 10 V DC to 30 V DC supply voltage range, making it directly compatible with a standard 24 V DC control system without requiring additional voltage converters.

How can I verify the PNP switching output is functioning correctly after installation?

Connect the output to your PLC input; the indicator LED on the sensor housing will illuminate when the output switches, confirming the PNP signal transitions between 0 V and the supply voltage as the beam is broken or restored.

Does the package include the M12 connection cable needed for wiring?

The box includes the WL260-F470 sensor, a P250 reflector, and a BEF-W260 mounting bracket; the 4-pin M12 connection cable must be purchased separately.
