Sick WL160-F142 Photoelectric Retro-reflective Sensor PNP
Photoelectric retro-reflective sensor with PNP output, 10–30 V DC supply, 0.01–6.5 m sensing range, visible red LED, IP67 housing, 2 m PVC cable
- Detects objects up to 6.5 m away with visible red LED light
- Switches reliably in 0.5 ms for fast automation response
- PNP output with selectable light or dark switching mode
- IP67 rated plastic housing withstands dust and water immersion
- Operates from –25 °C to +55 °C on 10–30 V DC supply
Sick WL160-F142 Retro-reflective Sensor

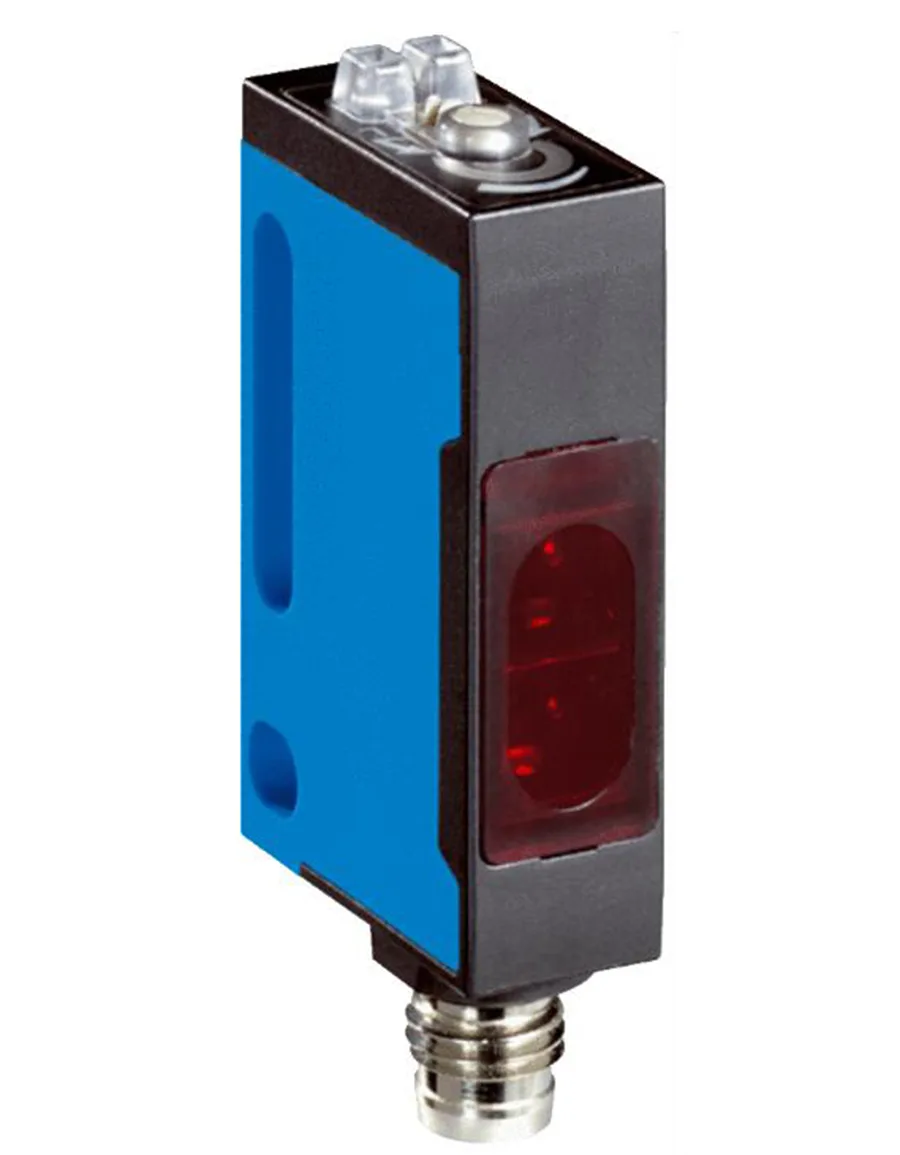

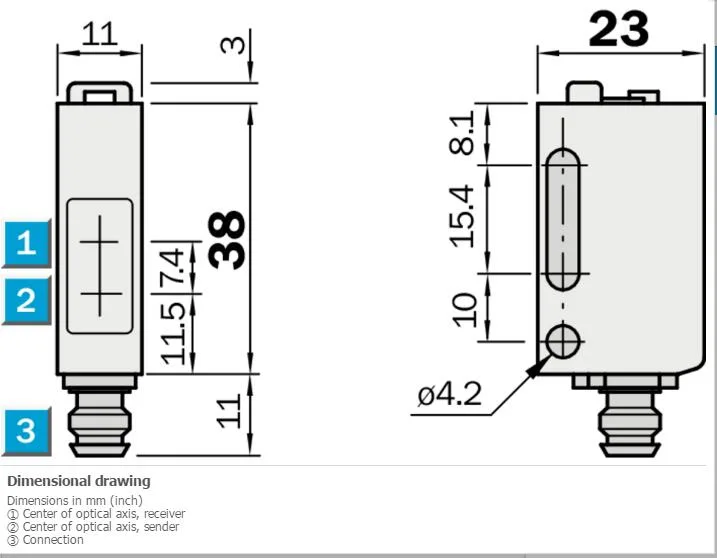

The Sick WL160-F142 is a photoelectric retro-reflective sensor designed for industrial detection tasks. It operates on 10 V DC to 30 V DC supply voltage and provides a PNP switching output. The sensor uses visible red LED light at 680 nm wavelength. Its rectangular plastic housing measures 11 mm x 38 mm x 23 mm.
Suits automated lines needing 6.5 m range
This sensor suits applications requiring a maximum sensing range of 6.5 m and a switching response time of 0.5 ms. The IP67 enclosure rating supports use in harsh environments between –25 °C and +55 °C. It is not for buyers who need a through-beam or diffuse detection principle instead of retro-reflective sensing.
2 m PVC cable with 0.2 mm2 conductors
The connection type is a fixed 2 m PVC cable with a conductor cross-section of 0.2 mm2. The cable carries the supply voltage and the PNP switching signal directly. Installers must ensure the cable length and material match the machine layout and chemical exposure conditions.
Highlights
- Detects objects up to 6.5 m away with visible red LED light
- Switches reliably in 0.5 ms for fast automation response
- PNP output with selectable light or dark switching mode
- IP67 rated plastic housing withstands dust and water immersion
- Operates from –25 °C to +55 °C on 10–30 V DC supply
Specifications
| Brand | SICK |
|---|---|
| Model | SICK WL160-F142 |
Questions about this item
How much power does the 10 V DC to 30 V DC sensor draw during continuous operation?
The sensor consumes 25 mA from a 10 V DC to 30 V DC supply with ±10 % ripple, so heat and power draw stay low during all-day use.
What voltage supply and output wiring does the PNP sensor need to work?
It requires a 10 V DC to 30 V DC source and a 2 m PVC cable with 0.2 mm² conductors for the PNP switching output.
Will the 0.5 ms response time work with my existing PLC input cards?
The 0.5 ms response time suits most standard PLC input modules; the PNP light/dark switching is selectable via the rotary switch to match your logic.
