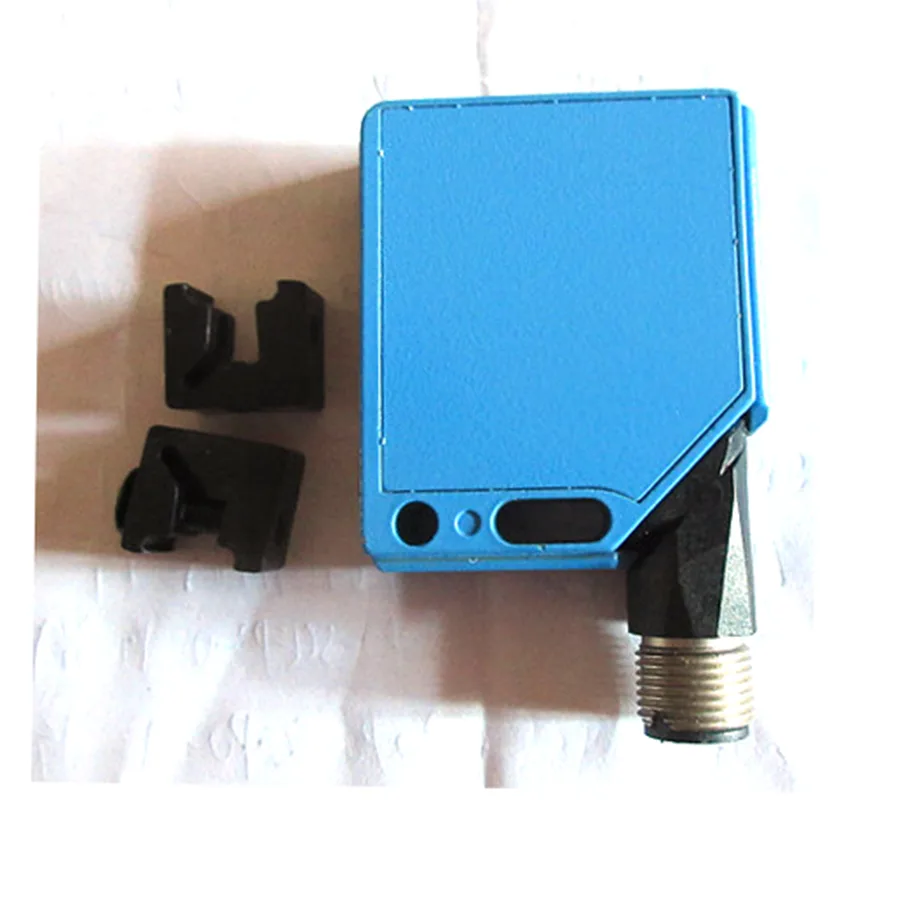

Rectangular metal sensor with red LED and M12 connector

Sick

Sick WL12-2B560 Photoelectric Retro-reflective Sensor

SKU CH-XWZ7-J2XTY

Photoelectric retro-reflective sensor detects objects up to 3.5 m with visible red LED, potentiometer adjustment and IP67-rated zinc housing

  • Reliable detection up to 3.5 m sensing range

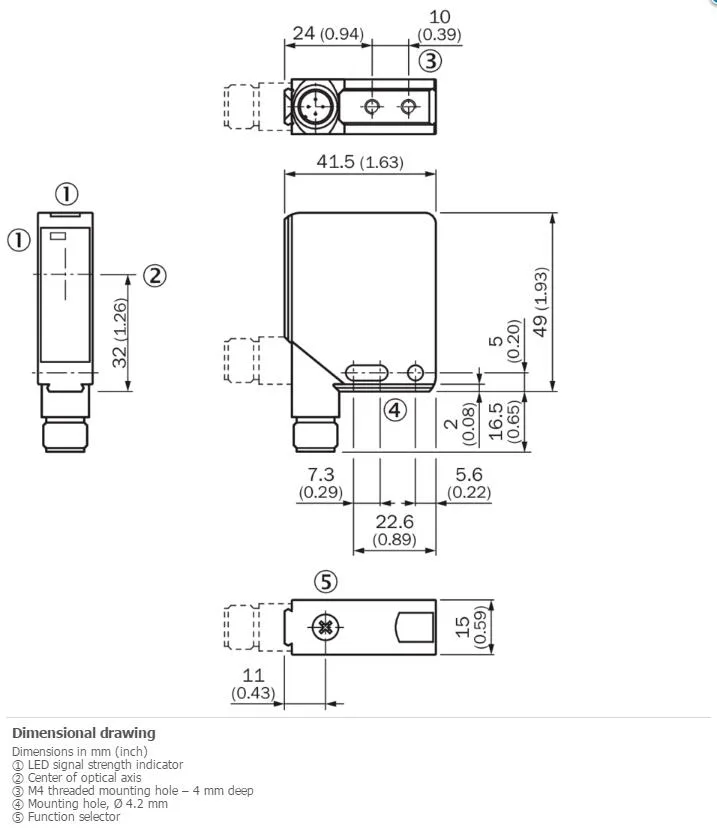

  • Compact 15 mm x 49 mm x 41.5 mm rectangular housing
  • Durable IP67 zinc diecast enclosure for harsh environments
  • Flexible 10 V DC to 30 V DC supply voltage
  • Fast 330 µs response time for quick switching

SICK WL12-2B560 Retro-reflective Sensor

The SICK WL12-2B560 is a photoelectric retro-reflective sensor built for industrial detection tasks. It uses visible red LED light to sense objects across a range of up to 4 metres. The rectangular metal housing measures 15 mm by 49 mm by 41.5 mm and carries an IP67 enclosure rating. Supply voltage spans 10 V DC to 30 V DC with a 330 µs response time.

Suited for Automated Lines Needing Compact Metal

This sensor fits machines that require a small zinc diecast body and a potentiometer for quick range adjustment. The 5-pin M12 male connector simplifies wiring in standard control cabinets. Buyers who need a different sensing principle such as through-beam or diffuse detection should look at other models. Applications demanding a sensing distance beyond 4 metres will not be covered by this unit.

Potentiometer and M12 Connector Simplify Setup

The built-in potentiometer lets technicians set the switching point without extra tools or software. A 5-pin M12 connector provides a secure, industry-standard link that speeds up installation and replacement. Light/dark switching mode is selectable to match the control logic of the system. These features reduce commissioning time on the production line.

Highlights

  • Reliable detection up to 3.5 m sensing range
  • Compact 15 mm x 49 mm x 41.5 mm rectangular housing
  • Durable IP67 zinc diecast enclosure for harsh environments
  • Flexible 10 V DC to 30 V DC supply voltage
  • Fast 330 µs response time for quick switching

Specifications

BrandSICK
ModelSICK WL12-2B560

Questions about this item

What supply voltage must my system provide for the WL12-2B560 sensor?

The sensor operates on 10 V DC to 30 V DC with a maximum ripple of 5 Vpp and a current draw of 30 mA.

Can the sensor's M12 5-pin connector work with my existing M12 4-pin cables?

No, the sensor requires a 5-pin M12 male connector; a 4-pin cable will not provide all necessary connections.

How can I verify the sensor is detecting correctly after installation?

Use the potentiometer to adjust the switching point; the output toggles within 330 µs when the visible red light beam is interrupted or reflected.
