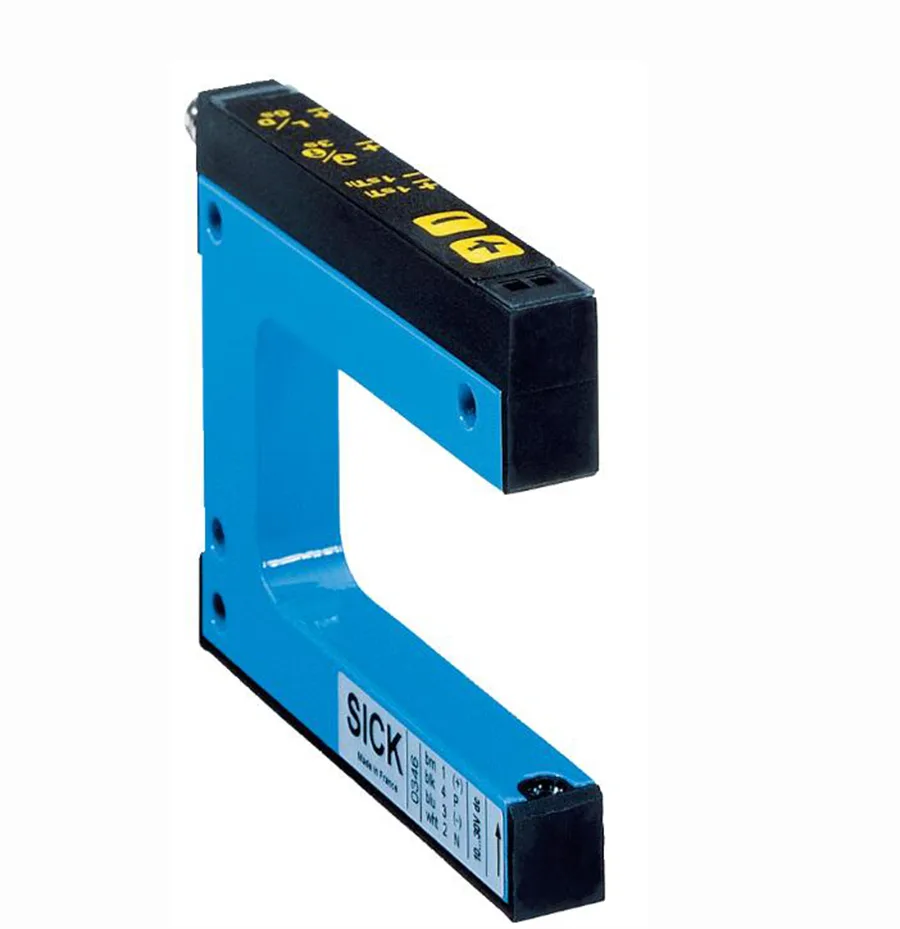

Small aluminium fork sensor 10 by 45 by 57 mm with M8 connector

Sick

Sick WF15-40B410 Fork Sensor 15 mm 0.2 mm MDO

SKU CH-PGZH-A5ZPT

Fork sensor with 15 mm width detects 0.2 mm objects using infrared LED and selectable NPN/PNP output

  • Detects objects as small as 0.2 mm with 15 mm fork width
  • Infrared LED optical principle ensures reliable label detection
  • Selectable light/dark switching via plus/minus button teach-in
  • IP65 aluminum housing resists dust and water ingress
  • 10-30 V DC supply with 100 mA PNP/NPN output current

Industrial Optical Fork Sensor

The Sick WF15-40B410 is a fork-shaped optical sensor designed for precise object detection in industrial automation. It uses an infrared LED light source to identify items as small as 0.2 mm across a 15 mm fork width. The unit offers selectable NPN or PNP output with light/dark switching via a teach-in button.

Replaces Basic Photoelectric Sensors

This sensor upgrades from standard through-beam or diffuse sensors when consistent label or edge detection is required. The fixed 15 mm fork width and 42 mm depth eliminate alignment between separate emitter and receiver units. The jump is worth it for high-speed web handling or packaging lines needing reliable 0.2 mm minimum detectable object performance.

Mounts Directly On Machinery

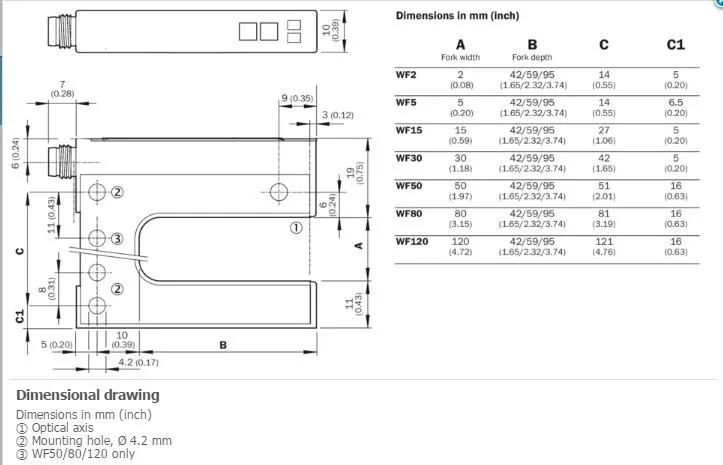

The aluminium housing measures 10 mm x 45 mm x 57 mm and connects via a 4-pin M8 male connector. It operates on 10 V DC to 30 V DC supply voltage with IP65 enclosure rating for dust and water resistance. Short-circuit and reverse polarity protection safeguard the output. The 100 ms initialization time allows rapid system startup.

Highlights

  • Detects objects as small as 0.2 mm with 15 mm fork width
  • Infrared LED optical principle ensures reliable label detection
  • Selectable light/dark switching via plus/minus button teach-in
  • IP65 aluminum housing resists dust and water ingress
  • 10-30 V DC supply with 100 mA PNP/NPN output current

Specifications

BrandSICK
ModelSICK WF15-40B410

Questions about this item

What fork width and minimum detectable object size does the SICK WF15-40B410 sensor provide?

The fork width is 15 mm and the minimum detectable object is 0.2 mm, allowing detection of very small items passing through the fork.

How is the SICK WF15-40B410 sensor connected and what supply voltage does it require?

It connects via a male M8 4-pin connector and operates on a 10 V DC to 30 V DC supply voltage with reverse polarity protection.

What maintenance does the SICK WF15-40B410 sensor need over time?

The IP65-rated aluminum housing resists dust and water jets; periodic cleaning of the optical window ensures reliable infrared detection.
