Cylindrical M18 photoelectric sensor with 2 m PVC cable

Sick

Sick VTF18-4N1812 Photoelectric proximity sensor NPN

SKU CH-PQ3Y-K9WZS

Photoelectric proximity sensor with background blanking, 3–90 mm range, NPN output, IP67 rated, 2 m PVC cable

  • Photoelectric detection with background blanking ignores unwanted surfaces
  • Sensing range up to 90 mm covers close and mid distances
  • NPN output with selectable light or dark switching suits varied logic
  • IP67 enclosure rating withstands dust and water ingress
  • 2 m PVC cable with 4-wire design simplifies installation

Industrial sensing with focused infrared

The Sick VTF18-4N1812 is a cylindrical photoelectric proximity sensor that uses background blanking to ignore objects beyond the set range. It operates on 10 V DC to 30 V DC and provides an NPN switching output selectable between light and dark switching via a control cable. The focused infrared LED produces a 3 mm spot at 50 mm distance, making it suitable for precise detection tasks in automation and assembly environments.

Stable output up to 250 Hz switching

With a response time of 2 ms and a switching frequency of 250 Hz, the sensor maintains consistent signal quality during continuous operation. Power consumption stays at 30 mA while the output handles up to 100 mA. The IP67 enclosure rating and operating range of –25 °C to +70 °C allow reliable performance in dusty, wet or temperature-variable conditions without degradation over extended cycles.

Simple four-wire cable mounting

The sensor connects through a 2 m PVC cable with 0.14 mm² conductors and a 5 mm diameter, terminating in a four-wire layout for supply, output and mode selection. The M18 x 1 thread allows direct installation into standard mounting holes without brackets. The fixed sensing range of 3 mm to 90 mm and lack of adjustment controls mean the detection zone cannot be tuned after installation, so positioning must be planned accurately.

Highlights

  • Photoelectric detection with background blanking ignores unwanted surfaces
  • Sensing range up to 90 mm covers close and mid distances
  • NPN output with selectable light or dark switching suits varied logic
  • IP67 enclosure rating withstands dust and water ingress
  • 2 m PVC cable with 4-wire design simplifies installation

Specifications

BrandSICK
ModelSICK VTF18-4N1812

Questions about this item

How much heat does the SICK VTF18-4N1812 generate when powered continuously at 30 V DC?

Power consumption is 30 mA, so at 30 V DC the sensor draws about 0.9 W, producing minimal heat during all-day operation.

What supply voltage and cable preparation does the sensor need to operate?

It requires 10 V DC to 30 V DC with ripple below 10 % and comes with a 2 m, 4-wire PVC cable (0.14 mm² conductors) for direct wiring.

Will the M18 × 1 threaded housing and radial optical axis fit my existing mounting bracket?

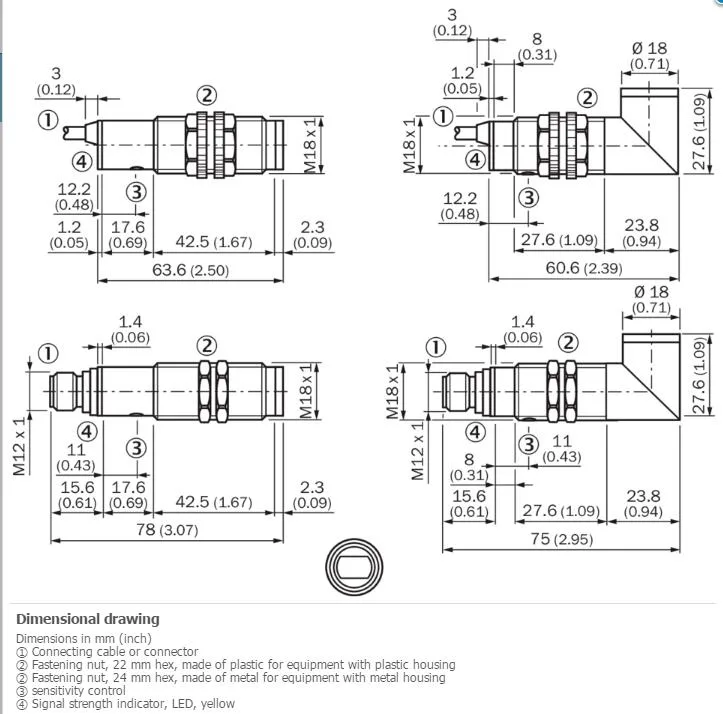

The cylindrical housing is 60.6 mm long with an M18 × 1 thread and radial light emission, matching standard M18 brackets used with older sensors.
