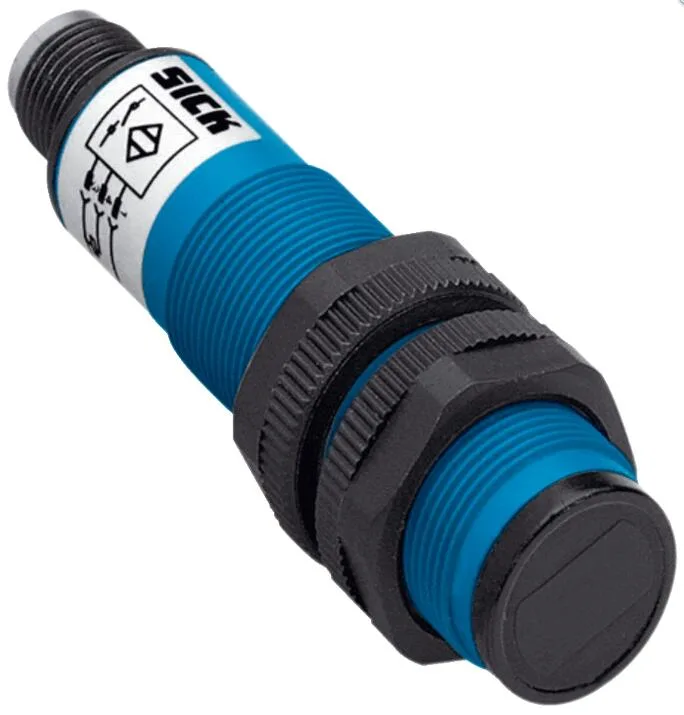

Sick VTF18-3F1640 Photoelectric Proximity Sensor PNP
Cylindrical photoelectric proximity sensor with background blanking, 3–90 mm range, PNP output, M12 connector, IP67 rated
- Photoelectric proximity sensing up to 100 mm range
- Focused infrared LED spot Ø 3 mm at 50 mm
- PNP light-switching output 100 mA at 250 Hz
- IP67 sealed PBT/PC housing withstands –25 °C to +70 °C
- M12 4-pin connector on 10–30 V DC supply
Industrial proximity sensor for automation
The Sick VTF18-3F1640 is a cylindrical photoelectric proximity sensor with background blanking and a PNP switching output. It operates on a 10 V DC to 30 V DC supply and detects objects from 3 mm up to 90 mm using an infrared LED. The focused optics produce a 3 mm light spot at 50 mm distance. An IP67 enclosure rating and a –25 °C to +70 °C operating range suit harsh industrial environments.
M12 connector and focused optics simplify wiring

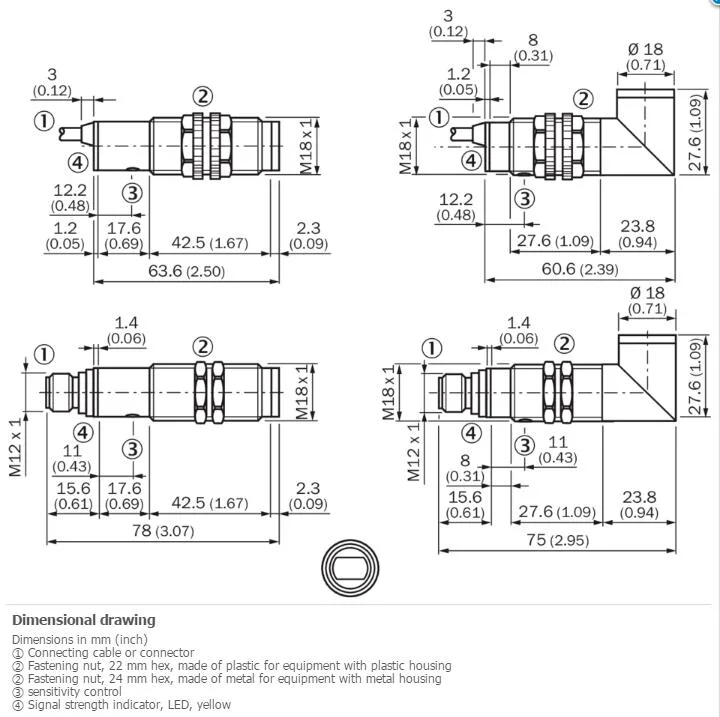

A male M12 4-pin connector provides the electrical interface, requiring a matching cable or distribution box in the control cabinet. The sensor draws 30 mA and delivers a maximum output current of 100 mA in light-switching mode. With no mechanical adjustment needed, installation is reduced to mounting the M18 x 1 threaded housing and connecting the supply. Circuit protection A, B, C and D guard against common wiring faults.
Low heat and fast response in continuous duty
Power consumption stays at 30 mA, so thermal load inside an enclosure is minimal. The 2 ms response time and 250 Hz switching frequency support high-speed counting or positioning tasks without generating audible noise. Plastic PBT/PC housing and PMMA optics resist vibration and chemical exposure. Protection class III and UL file NMFT2.E175606 confirm compliance for low-voltage industrial circuits.
Highlights
- Photoelectric proximity sensing up to 100 mm range
- Focused infrared LED spot Ø 3 mm at 50 mm
- PNP light-switching output 100 mA at 250 Hz
- IP67 sealed PBT/PC housing withstands –25 °C to +70 °C
- M12 4-pin connector on 10–30 V DC supply
Specifications
| Brand | Sick |
|---|---|
| Model | SICK VTF18-3F1640 |
Questions about this item
What is the maximum sensing range of the VTF18-3F1640 sensor?
The maximum sensing range is 3 mm to 100 mm, with a standard sensing range of 3 mm to 90 mm.
What is the enclosure rating and operating temperature range?
The sensor has an IP67 enclosure rating and operates from –25 °C to +70 °C.
What supply voltage and connector type does this sensor require?
It requires a 10 V DC to 30 V DC supply and connects via a male M12 4-pin connector.
