Cylindrical angled plastic photoelectric proximity sensor with two metre PVC cable

Sick

Sick VTF18-3E1812 Photoelectric Proximity Sensor NPN

SKU CH-7PYY-JM507

Photoelectric proximity sensor with 3 mm to 90 mm sensing range, NPN output, and IP67-rated plastic housing

  • Detects objects up to 100 mm with infrared LED
  • Adjustable sensing distance via potentiometer for precise setup
  • NPN light-switching output integrates with standard PLC inputs
  • IP67 enclosure withstands dust and water immersion
  • Operates reliably from –25 °C to +70 °C

Sick VTF18-3E1812 photoelectric sensor

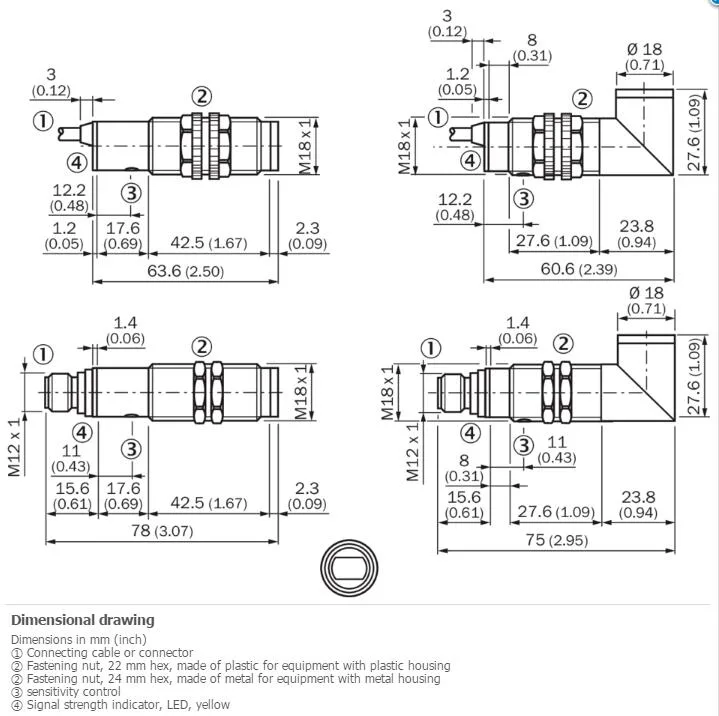

The Sick VTF18-3E1812 is a cylindrical photoelectric proximity sensor with an NPN switching output. It operates on a 10 V DC to 30 V DC supply and draws a maximum of 30 mA. The housing measures 60.6 mm and carries an IP67 enclosure rating for dust and water protection. It is suited for automation tasks that require non-contact object detection.

Sensing range and response limits

The sensor detects objects from 3 mm to 90 mm, with a maximum range of 100 mm depending on target reflectivity. Infrared LED light emission and a potentiometer allow adjustment within this window. Response time is fixed at 2 ms, which sets the minimum interval between reliable switching events.

Cable length and temperature headroom

A 2 m PVC cable with 0.14 mm² conductors and 3.1 mm diameter provides the connection to the controller. The unit operates continuously from –25 °C to +70 °C, matching its storage temperature limits. This range covers most indoor and sheltered outdoor industrial environments without derating.

Highlights

  • Detects objects up to 100 mm with infrared LED
  • Adjustable sensing distance via potentiometer for precise setup
  • NPN light-switching output integrates with standard PLC inputs
  • IP67 enclosure withstands dust and water immersion
  • Operates reliably from –25 °C to +70 °C

Specifications

BrandSICK
ModelSICK VTF18-3E1812
