Sick VTE18-4P2912 photoelectric proximity sensor PNP
Photoelectric proximity sensor with 3–170 mm sensing range, PNP output, and IP67-rated M18 housing
- Detects objects from 3 mm to 170 mm with adjustable potentiometer
- Infrared LED gives 250 Hz switching frequency for fast response
- PNP output with selectable light or dark switching via control cable
- IP67 enclosure withstands dust and water in harsh environments
- Operates on 10 V DC to 30 V DC supply voltage
Industrial sensing for automated lines
The Sick VTE18-4P2912 is a cylindrical photoelectric proximity sensor that uses an energetic infrared LED to detect objects between three millimetres and one hundred seventy millimetres. It is built for engineers and technicians who need reliable presence detection on conveyors, packaging machines or assembly stations.
Mounts in an M18 thread with a two-metre PVC cable

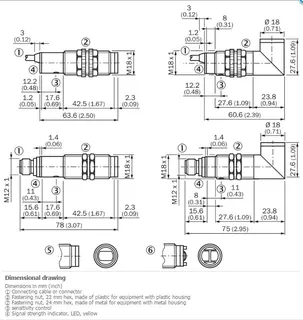

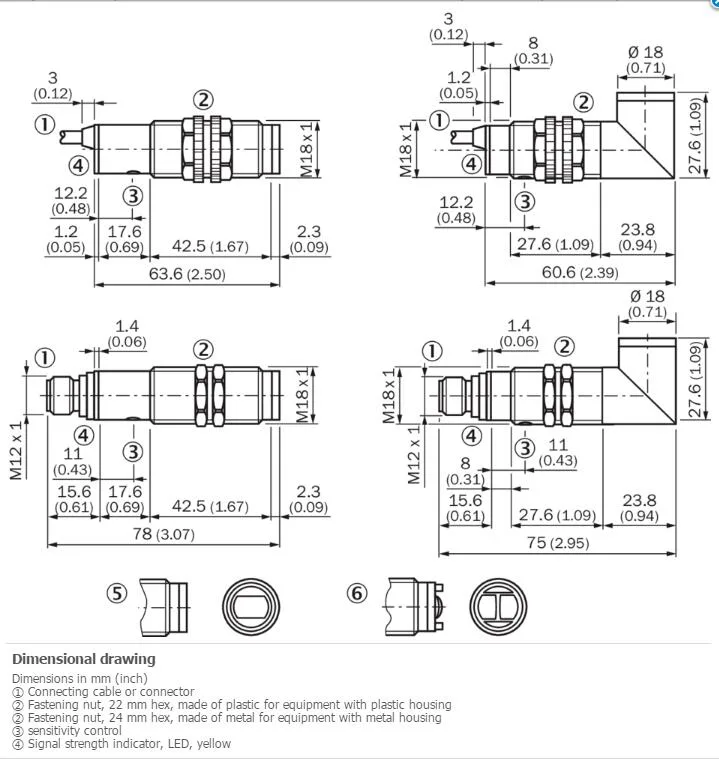

The sensor fits a standard M18 by one millimetre thread and has a sixty point six millimetre housing length, so it installs in existing brackets without redesign. Its four-wire cable carries ten to thirty volt DC power and a PNP switching output, leaving the control cabinet free for other I/O modules.
Potentiometer adjustment and IP67 sealing
A two hundred seventy degree potentiometer lets the installer set the exact sensing distance on site, while the selectable light or dark switching mode adapts to changing target reflectivity. The IP67 rated PBT/PC housing and PMMA optics withstand wash-down, oil mist and temperatures from minus twenty five to plus seventy degrees Celsius.
Highlights
- Detects objects from 3 mm to 170 mm with adjustable potentiometer
- Infrared LED gives 250 Hz switching frequency for fast response
- PNP output with selectable light or dark switching via control cable
- IP67 enclosure withstands dust and water in harsh environments
- Operates on 10 V DC to 30 V DC supply voltage
Specifications
| Brand | SICK |
|---|---|
| Model | SICK VTE18-4P2912 |
Questions about this item
How far can the sensor reliably detect an object at the maximum sensing range?
The sensing range is 3 mm to 170 mm, with a maximum range of 200 mm under ideal conditions.
What is the power consumption and enclosure rating for continuous daily operation?
Power consumption is 30 mA at 10-30 V DC, and the enclosure rating is IP67 for dust and water protection.
Which supply voltage and output type must the existing control system provide?
The sensor requires 10-30 V DC supply voltage and provides a PNP switching output with 100 mA maximum current.
