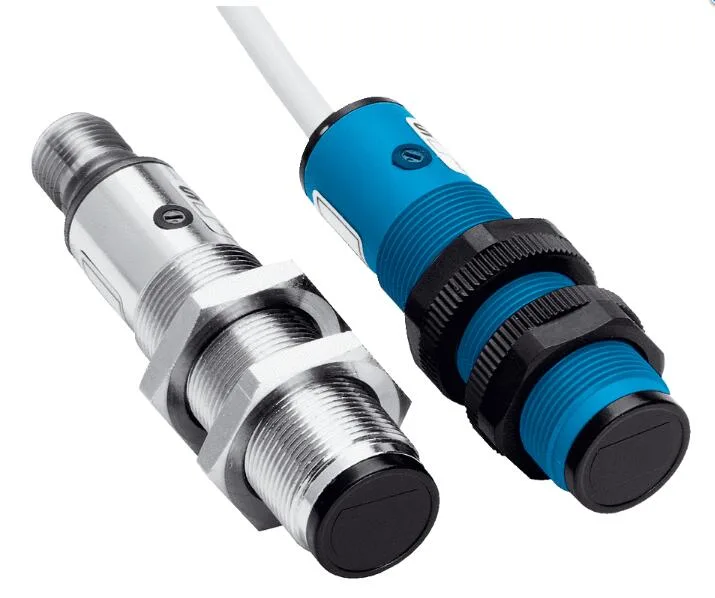

Cylindrical M18 photoelectric proximity sensor with 2 m PVC cable

Sick

Sick VTE18-4P2712 Photoelectric Proximity Sensor PNP

SKU CH-H9MZ-T1BQK

Photoelectric proximity sensor detects objects up to 200 mm with adjustable 270° potentiometer and PNP output

  • Photoelectric proximity sensing up to 170 mm range
  • PNP switching output with selectable light/dark mode
  • 250 Hz switching frequency for fast response
  • IP67 enclosure rating for harsh environments
  • 10–30 V DC supply voltage with 2 m cable

Sensing range and adjustment

The Sick VTE18-4P2712 is a cylindrical photoelectric proximity sensor with an energetic detection principle. It provides a sensing range from 3 mm to 170 mm and a maximum range up to 200 mm. A 270° potentiometer allows precise adjustment of the sensing distance for the application.

Supply voltage and output compatibility

Before ordering, verify that your system supplies 10 V DC to 30 V DC with a ripple no greater than 10 %. The sensor uses a PNP switching output with a maximum load current of 100 mA and offers selectable light or dark switching via the L/D control cable.

Enclosure rating and power draw

The IP67-rated plastic housing operates from –25 °C to +70 °C and weighs 100 g. Power consumption is 30 mA at the supply voltage. A 2 ms response time and 250 Hz switching frequency support reliable detection in normal industrial use.

Highlights

  • Photoelectric proximity sensing up to 170 mm range
  • PNP switching output with selectable light/dark mode
  • 250 Hz switching frequency for fast response
  • IP67 enclosure rating for harsh environments
  • 10–30 V DC supply voltage with 2 m cable

Specifications

Brandsick
ModelSICK VTE18-4P2712

Questions about this item

What comes in the box with the VTE18-4P2712 and what must be purchased separately?

The sensor ships with a fixed 2 m PVC cable, 4-wire, 0.14 mm² cross-section, Ø 5 mm. No mounting bracket, reflector, separate connector or power supply is included; those must be sourced separately.

Which sensing-range version should I choose for the VTE18-4P2712?

This model has a single adjustable range of 3 mm to 170 mm (max. 200 mm), set via a 270° potentiometer. There are no alternative range versions for this part number.

How does the 250 Hz switching frequency perform on a real production line?

At 250 Hz the sensor completes a full detect-and-switch cycle every 4 ms (response time 2 ms), allowing reliable detection of objects spaced as close as the line speed permits within that cycle.
