Cylindrical metal sensor with angled head and 2 m cable

Sick

Sick VTE18-4N2312 photoelectric proximity sensor NPN

SKU CH-6C2N-BBDRH

Photoelectric proximity sensor detects objects from 3 mm to 170 mm using infrared LED, adjustable via potentiometer, with NPN output selectable for light or dark switching, 2 ms response.

  • Detects objects up to 200 mm with infrared LED
  • NPN light/dark switching selectable via control cable
  • IP67 brass housing withstands –25 °C to +70 °C
  • 2 ms response time suits fast automation cycles
  • 2 m PVC cable with 0.14 mm² conductors ready to install

Sensor type and output

The Sick VTE18-4N2312 is a cylindrical photoelectric proximity sensor with an angled light-emission design. It delivers an NPN switching output and selectable light or dark switching via the L/D control cable, making it suitable for automation tasks that require a simple discrete signal.

Mounting and wiring needs

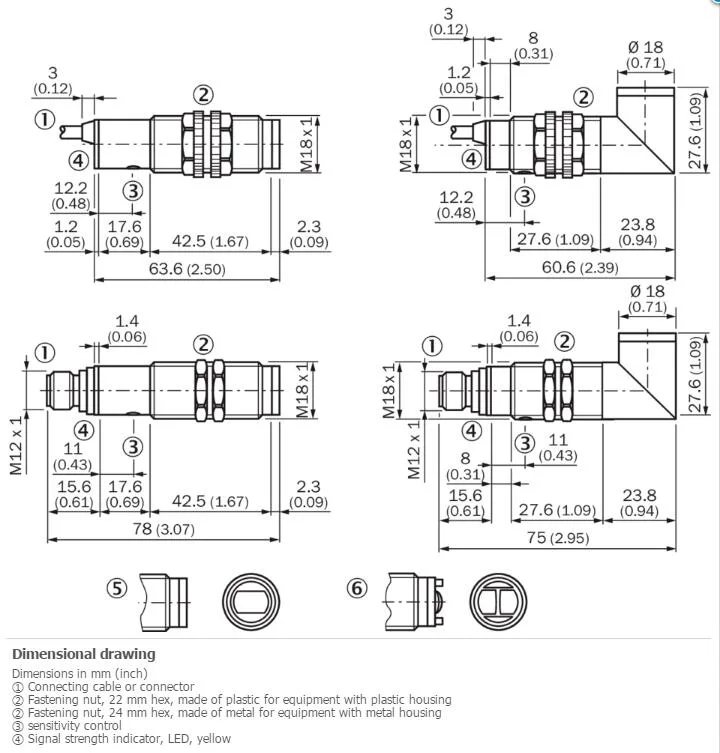

The brass nickel-plated metal housing measures 60.6 mm in overall dimension and carries an IP67 enclosure rating for dust and water resistance. A 2 m PVC cable with 0.14 mm² conductors and 5 mm outer diameter provides the electrical connection, while the potentiometer allows on-site sensing-range adjustment.

Power and response

Operating from a 10 V DC to 30 V DC supply with a maximum 10 % ripple, the sensor draws no more than 30 mA. Infrared LED emission with a 2.8° dispersion angle yields a sensing range of 3 mm to 170 mm and a 2 ms response time, while the unit withstands ambient temperatures from –25 °C to +70 °C.

Highlights

  • Detects objects up to 200 mm with infrared LED
  • NPN light/dark switching selectable via control cable
  • IP67 brass housing withstands –25 °C to +70 °C
  • 2 ms response time suits fast automation cycles
  • 2 m PVC cable with 0.14 mm² conductors ready to install

Specifications

BrandSICK
ModelSICK VTE18-4N2312

Questions about this item

At what distance does the 170 mm sensing range limit detection under sustained use?

The sensor detects objects from 3 mm up to 170 mm; beyond that range the target may not be reliably seen.

How much heat and noise does the sensor produce when powered continuously at 30 V DC?

Power draw is 30 mA with no moving parts, so heat is minimal and operation is silent.

Which supply voltage must the installation already provide for the sensor to operate?

A 10 V DC to 30 V DC source with ripple below 10 % is required.
