Cylindrical angled plastic photoelectric sensor with 2 m PVC cable

Sick

Sick VTE18-3P8912 photoelectric proximity sensor PNP

SKU CH-FJR8-09AXH

A cylindrical photoelectric proximity sensor with 10 mm to 700 mm sensing range, PNP dark-switching output, 2 ms response time, IP67 enclosure and 2 m PVC cable

  • PNP dark-switching output simplifies PLC wiring
  • Infrared LED detects objects from 10 mm to 700 mm
  • Potentiometer adjustment sets range without software
  • IP67 enclosure resists dust and water jets
  • 2 m PVC cable installs directly without extra connectors

Sick VTE18-3P8912 photoelectric proximity sensor PNP

This Sick VTE18-3P8912 is a cylindrical photoelectric proximity sensor with a PNP dark-switching output. It operates on 10 V DC to 30 V DC supply voltage and detects objects within a 10 mm to 700 mm sensing range using infrared LED light. The IP67-rated plastic housing suits industrial automation and machinery monitoring tasks. It is not for applications needing analog output, AC supply voltage, or sensing distances beyond 800 mm.

Bundled 2 m PVC cable with 0.14 mm² conductors

The sensor arrives with a fixed 2 m PVC cable of 3.1 mm diameter already attached, so no separate connector purchase is required. The 0.14 mm² conductor cross-section carries the 30 mA power consumption and PNP switching signal directly to the controller. This integrated cable eliminates loose-connector faults but prevents cable-length changes or connector-type swaps without cutting and re-terminating.

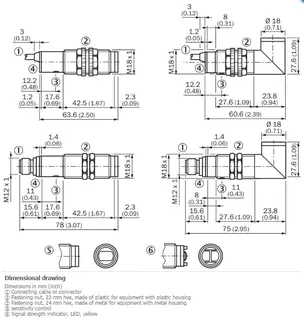

Potentiometer adjustment and M18 threaded mounting

Sensitivity is set via a built-in potentiometer accessible on the angled housing, allowing range tuning between 10 mm and 700 mm without software. The 60.6 mm cylindrical body mounts through an M18 thread, and the IP67 seal survives –25 °C to +70 °C ambient temperatures. Common issues include overtightening the lock nuts and cracking the plastic housing, or routing the PVC cable below its minimum bend radius causing conductor fatigue.

Highlights

  • PNP dark-switching output simplifies PLC wiring
  • Infrared LED detects objects from 10 mm to 700 mm
  • Potentiometer adjustment sets range without software
  • IP67 enclosure resists dust and water jets
  • 2 m PVC cable installs directly without extra connectors

Specifications

BrandSICK
ModelSICK VTE18-3P8912

Questions about this item

What maintenance does the 2 m PVC cable with 0.14 mm² conductors need after long runs?

Inspect the cable jacket and connectors periodically for cuts, abrasion or oil damage; the PVC sheath resists typical industrial fluids but replace the cable if conductors are exposed.

Which limit appears first during continuous operation — the 30 mA current draw or the 70 °C ambient ceiling?

The 70 °C ambient ceiling is reached before the 30 mA draw becomes a thermal concern; keep surrounding temperature below 70 °C and ensure airflow around the 60.6 mm housing.

How much heat and noise does the IP67 sensor generate when powered at 30 V DC all day?

The unit draws only 30 mA at 30 V DC, producing negligible heat and no audible noise; the IP67 plastic housing stays cool in a 70 °C ambient environment.
