Sick VTE18-3E4812 Photoelectric proximity sensor NPN
Detects objects at 5 mm to 350 mm using infrared LED, NPN output, 10–30 V DC, IP67 housing, 2 m PVC cable
- Photoelectric proximity detection up to 350 mm range
- NPN switching output for reliable signal integration
- Infrared LED with 2.8° dispersion for focused sensing
- IP67 enclosure rating resists dust and water ingress
- Operates from –25 °C to +70 °C for industrial environments
Sensing range up to 400 mm

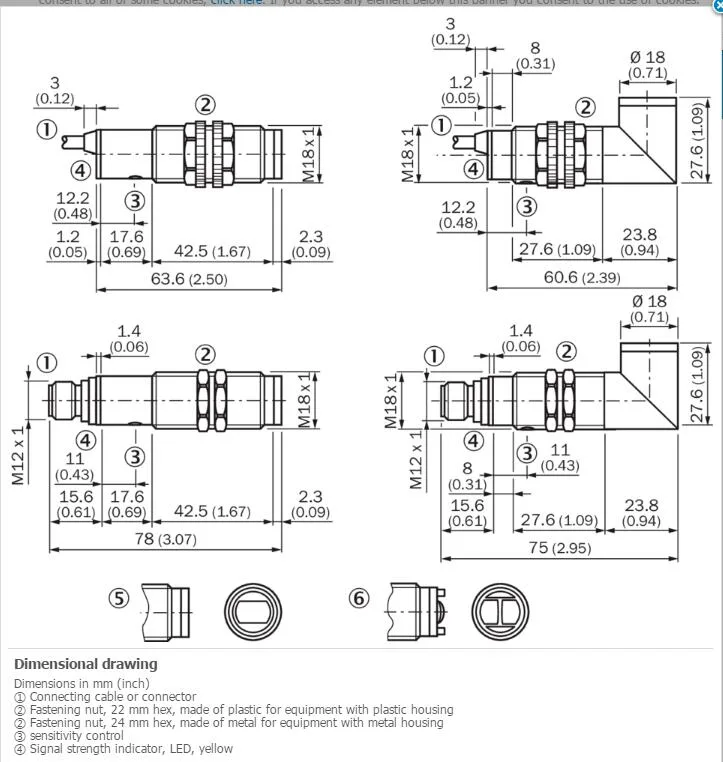

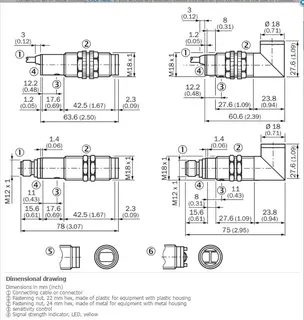

This Sick VTE18-3E4812 photoelectric proximity sensor detects objects from 5 mm to 350 mm with a maximum range of 400 mm. It uses an infrared LED with a 2.8° dispersion angle and a potentiometer for adjustment. The cylindrical angled housing measures 60.6 mm and carries an IP67 enclosure rating for dust and water protection.
Suited for 10 V to 30 V DC systems
The sensor operates on a 10 V DC to 30 V DC supply with a 30 mA power draw and provides an NPN light-switching output. A 2 ms response time supports fast detection cycles. Builders needing a PNP output or a different switching logic should look at other models. The 2 m PVC cable with 0.14 mm² conductors is fixed, so installations requiring a connectorised lead will need a different unit.
NPN light-switching output decides fit
The single specification that determines whether this is the right part is the NPN light-switching output. Your control input must accept an NPN signal that goes active when the beam is received. If your application requires a dark-switching or PNP configuration, this sensor will not match the circuit.
Highlights
- Photoelectric proximity detection up to 350 mm range
- NPN switching output for reliable signal integration
- Infrared LED with 2.8° dispersion for focused sensing
- IP67 enclosure rating resists dust and water ingress
- Operates from –25 °C to +70 °C for industrial environments
Specifications
| Brand | SICK |
|---|---|
| Model | SICK VTE18-3E4812 |
Questions about this item
How do I mount the cylindrical angled housing and where do I set the potentiometer for the 5 mm to 350 mm sensing range?
Secure the 60.6 mm cylindrical angled housing with the appropriate bracket, connect the 2 m PVC cable to a 10 V DC to 30 V DC supply, then turn the potentiometer until the infrared LED detects the target at the desired distance within the 5 mm to 350 mm range.
What maintenance will the IP67 rated plastic housing and PMMA optics need over time?
The IP67 enclosure protects the plastic housing and PMMA optics from dust and water ingress; periodically wipe the optics clean and inspect the PVC cable sheath for abrasion, replacing the cable if the 0.14 mm² conductors show damage.
At what ambient temperature does the 2 ms response time start to degrade during continuous operation?
The sensor maintains its 2 ms response time across the full –25 °C to +70 °C operating range; sustained use near the +70 °C limit is the first condition that can affect timing performance.
