Sick VTE18-3E2812 Photoelectric Proximity Sensor NPN
Photoelectric proximity sensor detects objects from 3 mm to 170 mm using infrared LED with NPN light-switching output and 2 ms response time
- Detects objects up to 200 mm with infrared LED
- Adjustable sensing distance via potentiometer for precise setup
- NPN light-switching output integrates with standard PLC inputs
- IP67-rated plastic housing withstands dust and water jets
- Operates reliably from –25 °C to +70 °C ambient temperature
Sick VTE18-3E2812 Photoelectric Sensor
The Sick VTE18-3E2812 is a cylindrical photoelectric proximity sensor designed for industrial automation and detection tasks. It operates on a 10 V DC to 30 V DC supply and provides an NPN switching output suitable for PLC inputs and control circuits. The unit uses an infrared LED with a 2.8° dispersion angle for reliable object detection. It targets engineers and technicians who need a compact presence sensor for conveyor lines or machine guarding.
Cylindrical Angled Housing With Potentiometer

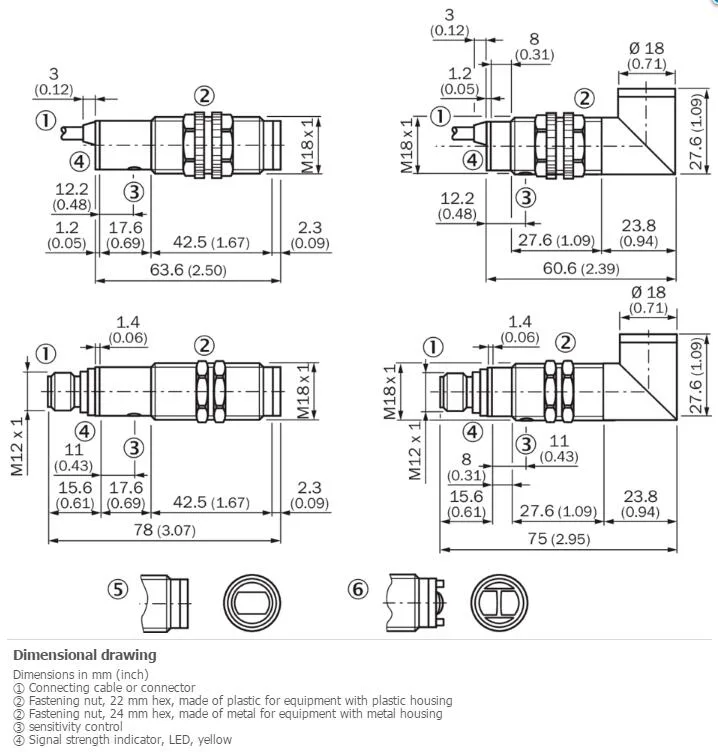

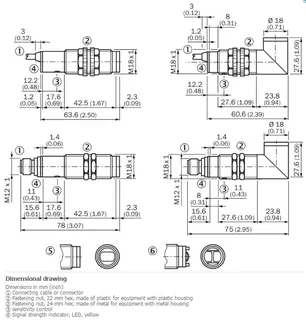

The sensor measures 60.6 mm in housing dimension and features an angled light emission design for flexible mounting in tight spaces. A built-in potentiometer allows manual adjustment of the sensing range between 3 mm and 170 mm, extending to 200 mm maximum. The 2 m PVC cable with 0.14 mm² conductors and 3.1 mm outer diameter simplifies wiring without separate connectors. Plastic housing and PMMA optics keep weight low while achieving IP67 enclosure rating for dust and water protection.
Low Power Consumption And Wide Temperature Range
Power consumption is rated at 30 mA with a response time of 2 ms, enabling fast switching in high-speed applications. The device operates reliably from –25 °C to +70 °C in both operating and storage conditions, covering cold storage and heated industrial environments. UL file NMFT2.E175606 confirms compliance for North American installations. The light-switching mode activates the output when the beam is received, providing predictable logic for safety and counting functions.
Highlights
- Detects objects up to 200 mm with infrared LED
- Adjustable sensing distance via potentiometer for precise setup
- NPN light-switching output integrates with standard PLC inputs
- IP67-rated plastic housing withstands dust and water jets
- Operates reliably from –25 °C to +70 °C ambient temperature
Specifications
| Brand | SICK |
|---|---|
| Model | SICK VTE18-3E2812 |
Questions about this item
What sensing range does the VTE18-3E2812 provide in practice?
The sensor detects objects from 3 mm up to 170 mm with a maximum reach of 200 mm using an infrared LED and a 2.8° dispersion angle.
What physical space and mounting does the cylindrical angled housing require?
The unit measures 60.6 mm in width, height and depth combined, has a plastic body with PMMA optics, and carries an IP67 enclosure rating for dust and water protection.
How is the sensor wired and which step is often missed during installation?
Connect the 2 m PVC cable (Ø 3.1 mm, 0.14 mm² conductors) to a 10–30 V DC supply with ripple below 10 %; the potentiometer must be adjusted after power-up to set the switching point.
