Cylindrical M18 plastic sensor with 2 m PVC cable, IP67 rated

Sick

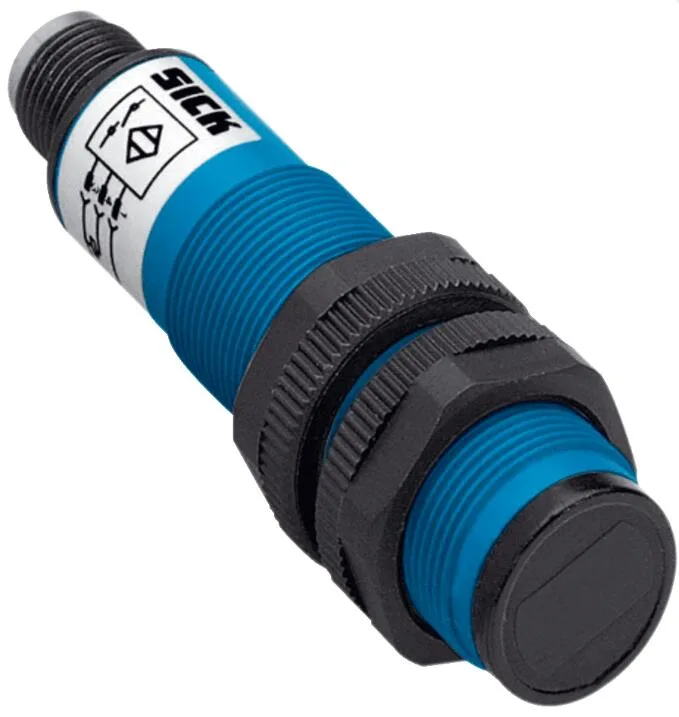

Sick VL18-2T2132 Photoelectric Retro-Reflective Sensor M18

SKU CH-J9MS-QZZZB

Photoelectric retro-reflective sensor with M18 housing detects objects up to 5 metres using infrared LED and TRIAC dark-switching output

  • Detects objects up to 5 m with retro-reflective photoelectric sensing
  • Operates on 20 V to 253 V AC supply at 50 Hz or 60 Hz
  • TRIAC dark-switching output handles 300 mA load current
  • IP67 enclosure withstands –25 °C to +60 °C environments
  • 2 m PVC cable with 0.34 mm² conductors for direct wiring

Sick VL18-2T2132 retro-reflective sensor

The Sick VL18-2T2132 is a photoelectric retro-reflective sensor in an M18 cylindrical housing. It detects objects using an infrared LED with an axial optical axis. The unit suits industrial automation where a single-device emitter and receiver simplifies mounting. It is not for applications needing through-beam range or diffuse-mode detection without a reflector.

Check supply voltage and output compatibility

Verify your system provides 20 V AC to 253 V AC at 50 Hz or 60 Hz before installation. The sensor uses a TRIAC dark-switching output rated at 300 mA maximum. Ensure the connected load matches this switching mode and current limit. The 2 m PVC cable with 0.34 mm² conductors requires a suitable termination point.

Mounts in M18 thread with IP67 sealing

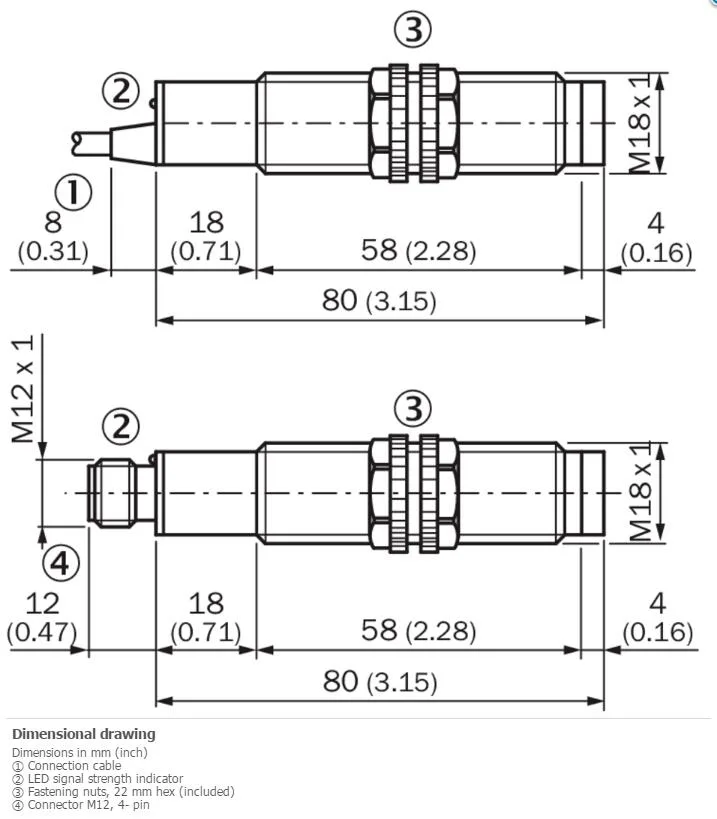

The 88 mm long plastic housing threads directly into an M18 x 1 cutout. IP67 enclosure rating and a –25 °C to +60 °C operating range suit harsh environments. A 20 ms response time and 25 Hz switching frequency suit medium-speed counting or presence tasks. No potentiometer adjustment means the sensing window is fixed at 0.01 m to 4 m.

Highlights

  • Detects objects up to 5 m with retro-reflective photoelectric sensing
  • Operates on 20 V to 253 V AC supply at 50 Hz or 60 Hz
  • TRIAC dark-switching output handles 300 mA load current
  • IP67 enclosure withstands –25 °C to +60 °C environments
  • 2 m PVC cable with 0.34 mm² conductors for direct wiring

Specifications

Brandsick
ModelSICK VL18-2T2132
