Small rectangular safety relay module with green screw terminal blocks on front face

Sick

Sick UE10-2FG3D0 Plug-in Screw-type Terminals NPN PNP electrician tool

SKU CH-9EWE-PGASH

Plug-in screw-type terminals with 2 enable and 1 monitoring contact for 24 V DC safety circuits

  • Plug-in screw terminals simplify wiring and maintenance
  • Dual NPN/PNP output supports both sinking and sourcing circuits
  • Two safety-rated N/O contacts provide reliable enable switching
  • 24 V DC input with 10 ms response ensures fast safety reaction
  • Rated insulation 300 V AC and 4 kV impulse withstand for robust protection

Safety relay module for industrial control panels

The Sick UE10-2FG3D0 is a plug-in safety relay with screw-type terminals designed for machine guarding and emergency-stop circuits. It accepts a 24 V DC supply between 16.8 V and 27.6 V and draws 50 mA. Two positively driven N/O contacts and one N/C monitoring contact provide safe enable and external device monitoring functions.

Dual-channel output rated to 6 A per enable path

Each enable contact switches from 10 mA up to 6 A at voltages between 10 V and 250 V AC/DC, delivering 1,500 VA or 200 W. The monitoring contact handles 1 mA to 300 mA up to 60 V. Response time is 10 ms with a 30 ms reset window, suitable for Category II overvoltage environments.

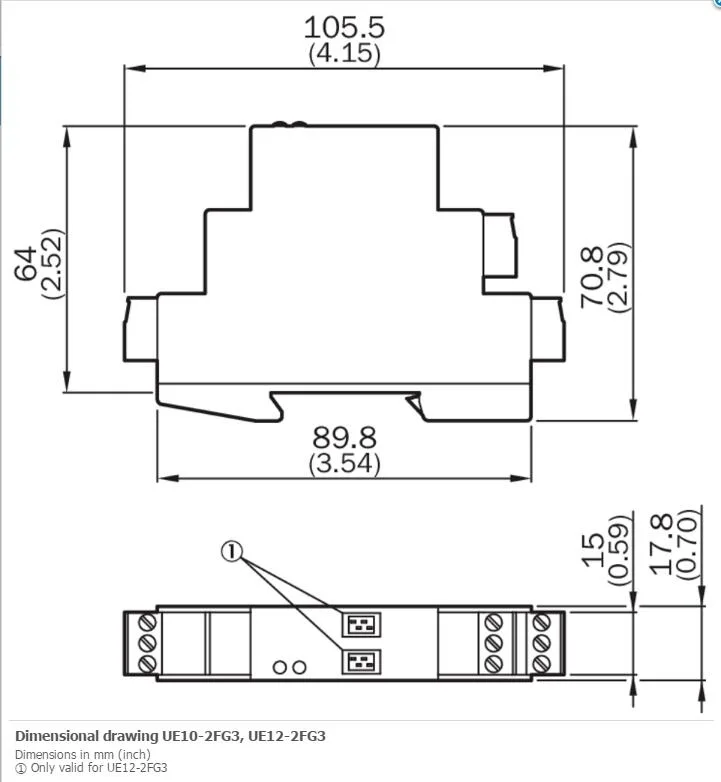

DIN-rail mountable unit with PELV/SELV compliance

The module fits standard rail systems and connects via plug-in screw terminals for quick wiring. Rated insulation is 300 V AC with 4 kV impulse withstand and 1.2 kV test voltage per EN 60439-1. It serves builders needing certified safety I/O but does not suit applications requiring higher current poles or integrated fieldbus communication.

Highlights

  • Plug-in screw terminals simplify wiring and maintenance
  • Dual NPN/PNP output supports both sinking and sourcing circuits
  • Two safety-rated N/O contacts provide reliable enable switching
  • 24 V DC input with 10 ms response ensures fast safety reaction
  • Rated insulation 300 V AC and 4 kV impulse withstand for robust protection

Specifications

BrandSICK
ModelSICK UE10-2FG3D0

Questions about this item

Will the 24 V DC input work with my existing 16.8 V DC to 27.6 V DC supply?

Yes, the input voltage range is 16.8 V DC to 27.6 V DC at 50 mA, so your supply fits within the specified limits.

How can I verify the UE10-2FG3D0 is operating correctly after wiring?

Apply 24 V DC to B1 and B2; the two enable current (N/O) contacts should close within 10 ms and the contactor monitoring (N/C) contact should open, both with positively driven silver alloy, gold-flashed contacts.

Does the package include the plug-in screw-type terminal blocks or must I buy them separately?

The plug-in screw-type terminals are built into the UE10-2FG3D0, so no separate terminal blocks are required for connection.
