SICK UC4-13341 Ultrasonic Sensor 13-250mm IP67
Ultrasonic sensor measuring 13 mm to 250 mm with 0.1 mm resolution, 24 ms response, IP67 enclosure and M8 connector
- Precise detection down to 0.1 mm resolution for accurate object sensing
- Reliable measurements with ±0.15 % repeatability and ±1 % accuracy
- Fast 24 ms response time enables 30 Hz switching frequency
- Rugged IP67 enclosure protects against dust and water ingress
- Flexible teach-in functions support multiple switching modes for varied applications
Ultrasonic sensor for short-range detection

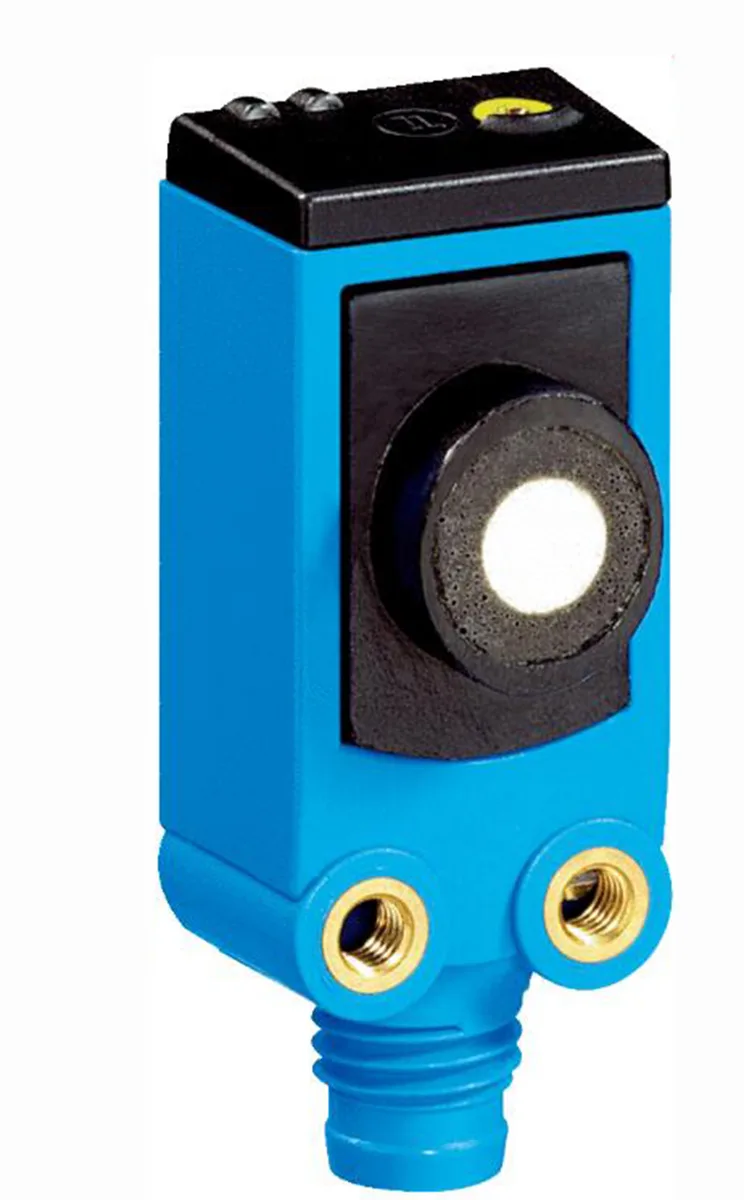

The SICK UC4-13341 is a new ultrasonic sensor designed for industrial automation and electrician tooling. It detects natural objects at distances from 13 mm up to a limiting range of 250 mm. The rectangular ABS housing carries an IP67 enclosure rating for dust and water protection.
DC supply voltage 15 V to 30 V
Operation requires a DC supply between 15 V and 30 V with a power consumption of 0.75 W. The sensor connects via a male M8 3-pin connector and initialises in under 300 ms. A 380 kHz ultrasonic frequency drives a typical response time of 24 ms and a 30 Hz switching frequency.
Resolution 0.1 mm with ±0.15 % repeatability
The sensor delivers a resolution of 0.1 mm and repeatability of ±0.15 %, with an accuracy of ±1 %. Temperature compensation is included. Switching modes such as distance-to-object, window and object-between-sensor-background are configurable by teach-in, while dual LEDs provide status indication.
Highlights
- Precise detection down to 0.1 mm resolution for accurate object sensing
- Reliable measurements with ±0.15 % repeatability and ±1 % accuracy
- Fast 24 ms response time enables 30 Hz switching frequency
- Rugged IP67 enclosure protects against dust and water ingress
- Flexible teach-in functions support multiple switching modes for varied applications
Specifications
| Brand | SICK |
|---|---|
| Model | SICK UC4-13341 |
Questions about this item
What does the 13 mm to 250 mm range mean when the sensor is installed on a machine?
The sensor detects objects from 13 mm up to 150 mm reliably and can reach a limiting range of 250 mm depending on target reflectivity.
What does the M8 3-pin connector limit in practice?
The M8 3-pin connector carries a 15 V to 30 V DC supply and a single switching output with a 30 Hz maximum switching frequency.
What clearance and mounting does the rectangular ABS housing need?

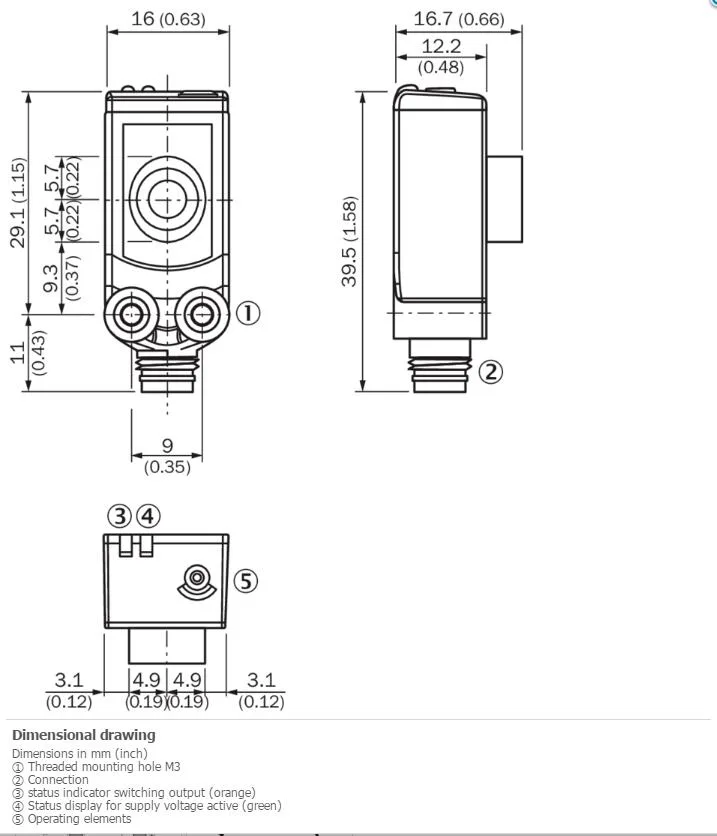

The 10 g rectangular housing has a straight sending axis and requires a clear detection area; it mounts via its body and seals to IP67.
