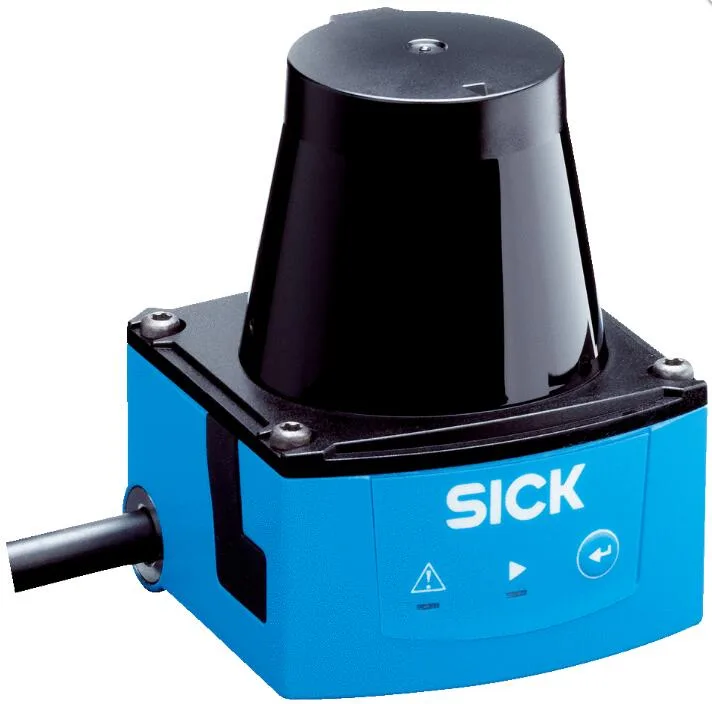

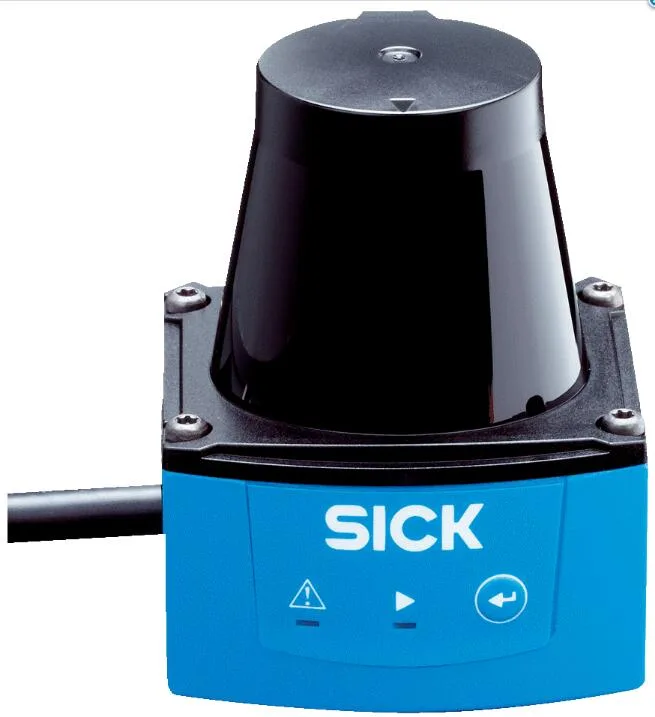

Compact rectangular LiDAR sensor with dark housing and front optical window

Sick

Sick TIM310-1030000 LiDAR Sensor 270° 15 Hz 4 m range

SKU CH-MZ6P-YGAGR

A 270° LiDAR sensor scanning at 15 Hz with a 4 m range and 1° resolution for indoor object detection

  • 270° horizontal aperture covers wide indoor areas
  • 15 Hz scanning frequency updates surroundings rapidly
  • 4 m working range detects objects at distance
  • ±40 mm systematic error ensures precise measurements
  • 16 field triples allow flexible zone configuration

Indoor LiDAR Sensor 270° 15 Hz

The Sick TIM310-1030000 is a new LiDAR sensor built for indoor measurement tasks. It uses an HDDM measurement principle with an 850 nm infrared laser rated as class 1 under IEC 60825-1:2014. The aperture angle spans 270° horizontally and scans at 15 Hz with a 1° angular resolution. It suits automation engineers who need reliable field evaluation in controlled environments.

Sustained scanning behaviour

Continuous operation runs at the fixed 15 Hz scanning frequency with a typical response time of 134 ms. The working range extends from 0.05 m to 4 m, while the scanning range at 10% remission reaches 2 m. Systematic error stays within ± 40 mm and statistical error within 30 mm. The device evaluates one simultaneous case across three fields, making it suited for steady monitoring rather than rapid reaction.

Interface and configuration limits

Sixteen field triples provide 48 fields in total, though only one triple of three fields can be configured directly on the scanner. No additional communication interfaces or protocols are specified in the data. Buyers who need higher remission range, faster scan rates, or direct multi-field configuration should look elsewhere.

Highlights

  • 270° horizontal aperture covers wide indoor areas
  • 15 Hz scanning frequency updates surroundings rapidly
  • 4 m working range detects objects at distance
  • ±40 mm systematic error ensures precise measurements
  • 16 field triples allow flexible zone configuration

Specifications

BrandSICK
ModelSICK TIM310-1030000

Questions about this item

How loud or hot does the TIM310-1030000 get when it runs continuously at 15 Hz?

The sensor uses a Class 1 infrared laser at 850 nm with a typical response time of 134 ms and contains no moving parts that generate audible noise or significant heat during continuous operation.

What power supply and mounting hardware must I already have to install this LiDAR sensor?

You need a compatible DC power source matching the sensor's voltage requirements and a rigid mounting bracket aligned to the 270° horizontal aperture for proper scanning coverage.

Will the ±40 mm systematic error and 1° resolution work reliably with older PLCs or safety controllers I already use?

The sensor provides 48 configurable fields across 16 field triples with standard industrial interfaces, allowing integration with legacy controllers that support the same field evaluation logic and timing.
