Sick NT6-03022 Sensor 80x30.4x64mm IP67 10-30V
Rectangular sensor with 9 mm sensing distance, 10–30 V DC supply, IP67 zinc housing and 2 m cable
- IP67 enclosure rating protects against dust and water ingress
- 10 kHz switching frequency enables fast detection cycles
- 200 mA maximum output current supports direct load control
- 10–30 V DC supply voltage fits common industrial power rails

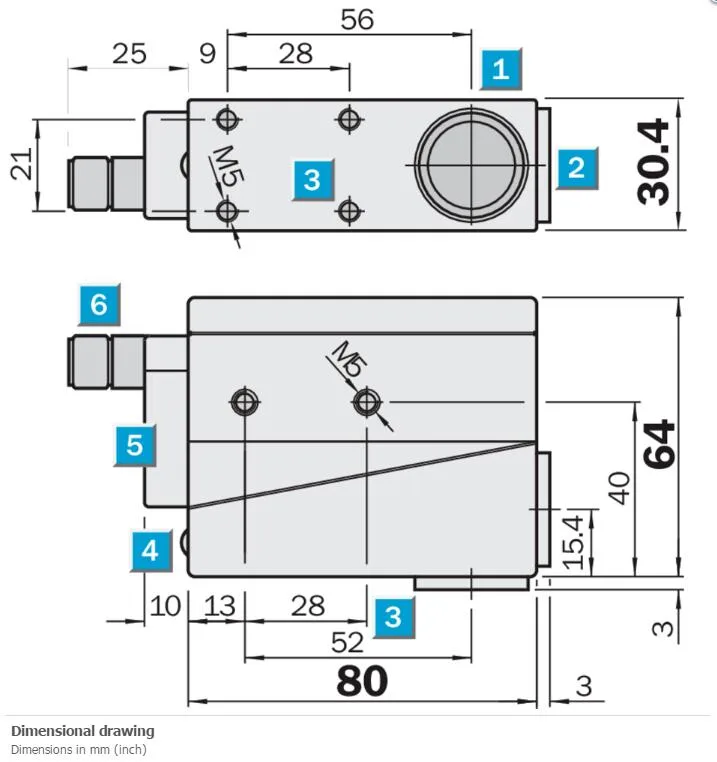

- 80 × 30.4 × 64 mm rectangular housing suits tight mounting spaces

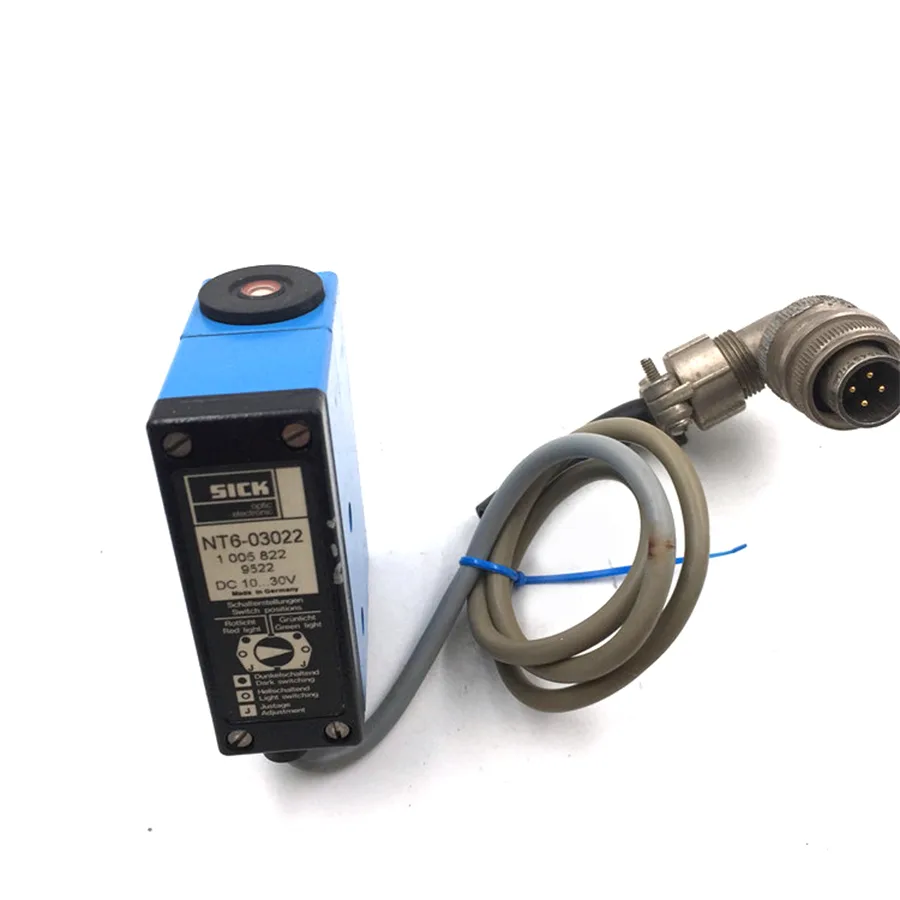

Sick NT6-03022 rectangular sensor
The Sick NT6-03022 is a rectangular photoelectric sensor designed for industrial detection tasks. It operates on a 10 V DC to 30 V DC supply and features an IP67 zinc diecast housing measuring 80 mm x 30.4 mm x 64 mm. A 2 m cable provides the connection. This unit suits automation engineers needing a compact, rugged presence detector.
9 mm sensing distance with potentiometer adjustment
The sensor detects objects at a 9 mm range with a ±2 mm tolerance using a red and green LED source at 560 nm wavelength. Light emits from the long and short housing sides, creating a 1.5 mm x 5 mm vertical spot. A potentiometer allows fine adjustment. Switching frequency reaches 10 kHz with a response time greater than 50 µs. The analog output spans 0.15 V to 6 V with a 200 mA maximum output current.
10-30 V DC supply with IP67 protection
The sensor requires a 10 V DC to 30 V DC power source with 5 Vpp ripple tolerance and draws 80 mA. Circuit protection covers UV connections and reverse polarity, while the output is short-circuit protected. The IP67 enclosure rating ensures resistance to dust and temporary immersion. The zinc diecast housing withstands harsh industrial environments without additional shielding.
Highlights
- IP67 enclosure rating protects against dust and water ingress
- 10 kHz switching frequency enables fast detection cycles
- 200 mA maximum output current supports direct load control
- 10–30 V DC supply voltage fits common industrial power rails
- 80 × 30.4 × 64 mm rectangular housing suits tight mounting spaces
Specifications
| Brand | SICK |
|---|---|
| Model | SICK NT6-03022 |
Questions about this item
Will the 80 mm by 30.4 mm by 64 mm housing fit alongside older sensors on the same mounting rail?
The rectangular zinc-diecast body measures 80 mm wide, 30.4 mm high and 64 mm deep, so it occupies the same footprint as many legacy rectangular sensors and can share standard mounting brackets.
How can I verify the LED is emitting correctly after wiring the 2 m cable?
With 10 V to 30 V DC applied, the red and green LEDs at 560 nm should illuminate; the analog output will read 0.15 V to 6 V and the switching output toggles at up to 10 kHz, confirming operation.
Does the box include the 2 m cable and any mounting hardware, or must I buy them separately?
The sensor ships with the 2 m cable permanently attached; mounting brackets and separate connectors are not included and must be sourced if required.
