Sick MZT8-03VPS-KRO T-slot cylinder sensor PNP
A T-slot cylinder sensor with PNP output, 10–30 V DC supply, 1,000 Hz switching frequency, IP68 enclosure and 0.5 m M8 cable
- Reliable detection across seven cylinder types including T-slot and SMC rails
- Fast 1,000 Hz switching frequency suits high-speed automation cycles
- IP68 enclosure rating withstands harsh industrial environments
- Compact 24 mm housing length fits tight machine spaces
- Wide –30 °C to +80 °C operating range handles extreme temperatures
T-slot cylinder sensor with PNP output
The Sick MZT8-03VPS-KRO is a magnetic field sensor designed for T-slot pneumatic cylinders. It detects piston position in automation systems using a PNP switching output with normally open function. The sensor suits engineers and maintenance teams who need reliable end-of-stroke feedback on compatible cylinder types.
Mounts directly on T-slot profiles

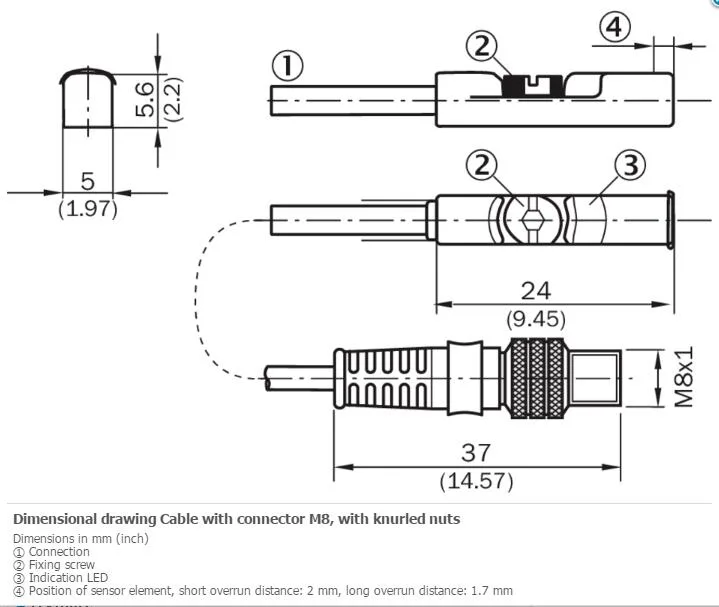

The 24 mm housing fits standard T-slot grooves and works with profile, tie-rod, round-body, dovetail and SMC CDQ2 or ECDQ2 rails using appropriate adapters. A 0.5 m PUR cable with an M8 3-pin connector and knurled nuts provides a secure DC 3-wire connection. The axial cable outlet keeps routing tidy in confined machine spaces.
Consistent switching up to 1,000 Hz across –30 °C
The sensor operates on 10 V DC to 30 V DC with 10 mA power consumption and a 2.2 V voltage drop. It delivers 200 mA continuous current with short-circuit, reverse-polarity and power-up pulse protection. Reproducibility is 0.1 mT and typical hysteresis exceeds 0.5 mT. IP68 rating and 30 g shock resistance support sustained operation in harsh industrial environments.
Highlights
- Reliable detection across seven cylinder types including T-slot and SMC rails
- Fast 1,000 Hz switching frequency suits high-speed automation cycles
- IP68 enclosure rating withstands harsh industrial environments
- Compact 24 mm housing length fits tight machine spaces
- Wide –30 °C to +80 °C operating range handles extreme temperatures
Specifications
| Brand | Sick |
|---|---|
| Model | SICK MZT8-03VPS-KRO |
Questions about this item
What is the IP68 enclosure rating limit for this T-slot cylinder sensor?
The sensor meets IP68 enclosure rating for dust and water ingress protection during sustained operation.
How much power does the PNP sensor draw when running continuously on a 24 V DC supply?
Power consumption is 10 mA with a voltage drop of 2.2 V and continuous current up to 200 mA.
Which connector and cable length must the installer already have to wire this M8 3-pin sensor?
The sensor includes a 0.5 m PUR cable with an M8 3-pin connector and knurled nuts.
