Red plastic sensor with M12 connector cable, 24 mm housing

Sick

Sick MZT1-03VPS-KQ0 PNP sensor electrician tool

SKU CH-1YJ0-WY9J5 MPN MZT1-03VPS-KQ0

PNP magnetic sensor for T-slot cylinders with 24 mm housing, IP68 rating, 10–30 V DC supply and 1,000 Hz switching frequency

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • PNP output simplifies wiring for 10 V DC to 30 V DC systems
  • IP68 rating protects against dust and water ingress in harsh environments
  • 1,000 Hz switching frequency enables rapid cylinder position detection

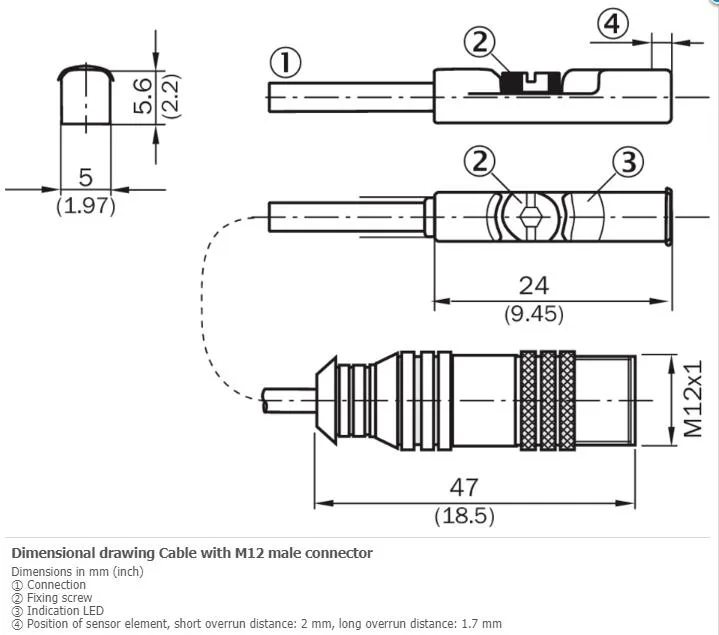

  • M12 connector with 0.3 m PUR cable allows quick installation on T-slot cylinders
  • Operating range from –30 °C to +80 °C suits extreme industrial conditions

T-slot cylinder sensor

The SICK MZT1-03VPS-KQ0 is a PNP magnetic sensor designed for T-slot pneumatic cylinders. It mounts directly into the cylinder slot and detects piston position through the housing wall. The sensor operates on 10 V DC to 30 V DC supply voltage and provides a normally open switching output. Its IP68 enclosure rating suits harsh industrial environments.

Automation engineers and maintenance teams

This sensor suits engineers integrating position feedback into pneumatic systems using T-slot, profile, tie-rod, round-body or dovetail cylinders with adapters. The 1,000 Hz switching frequency supports fast cycle rates. Buyers needing NPN logic or a different output function should look at other models. The fixed 0.3 m cable with M12 connector limits placement flexibility.

PNP switching output

The sensor delivers a PNP normally open signal with a 200 mA continuous current rating and 2.2 V voltage drop. Response sensitivity is 2.6 mT typical with 0.1 mT reproducibility. Operating temperature spans –30 °C to +80 °C. Housing material is PA12 plastic with a PUR cable. EMC compliance follows EN 60947-5-2.

Highlights

  • PNP output simplifies wiring for 10 V DC to 30 V DC systems
  • IP68 rating protects against dust and water ingress in harsh environments
  • 1,000 Hz switching frequency enables rapid cylinder position detection
  • M12 connector with 0.3 m PUR cable allows quick installation on T-slot cylinders
  • Operating range from –30 °C to +80 °C suits extreme industrial conditions

Specifications

BrandSICK
ModelMZT1-03VPS-KQ0
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How can I confirm the sensor is operating correctly after wiring it to a 10 V DC ... 30 V DC supply?

The yellow LED on the housing lights when the magnetic field exceeds the 2.6 mT response sensitivity and the PNP output switches within the 1,000 Hz switching frequency.

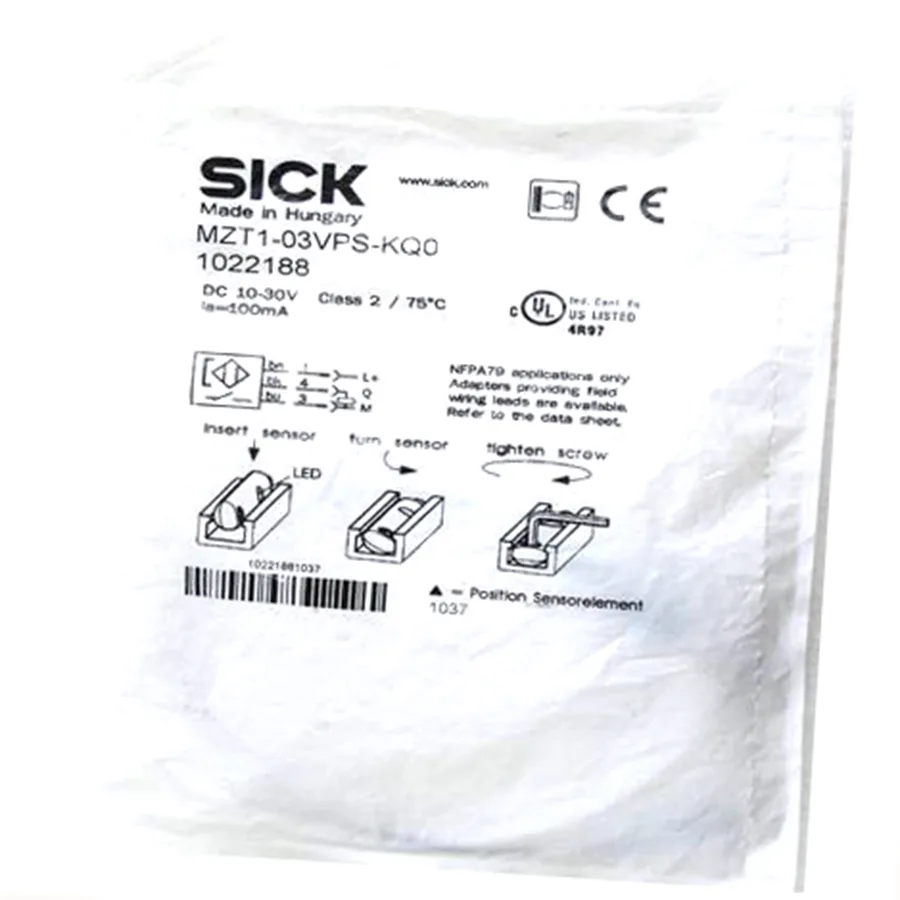

What comes in the box and what extra items are needed for installation?

The box contains one sensor with a 0.3 m PUR cable and an M12 3-pin connector; you must supply a matching M12 cable or distribution box and a 10 V DC ... 30 V DC power source.

Which switching output type should I select for a PLC that requires a sourcing signal?

Choose the PNP version listed as MZT1-03VPS-KQ0 because its output function is NO and it delivers a positive-going signal compatible with sourcing PLC inputs.
