Sick
Sick KTM-WN11182P contrast sensor NPN 12-24 V DC IP67
Contrast sensor detects marks at 12.5 mm with RGB LED, 15 kHz switching and IP67 housing
- RGB LED detects colour contrast at 12.5 mm
- 15 kHz switching speed enables fast line tracking
- Teach-in button sets light/dark switching in seconds
- IP67 housing resists dust and water ingress

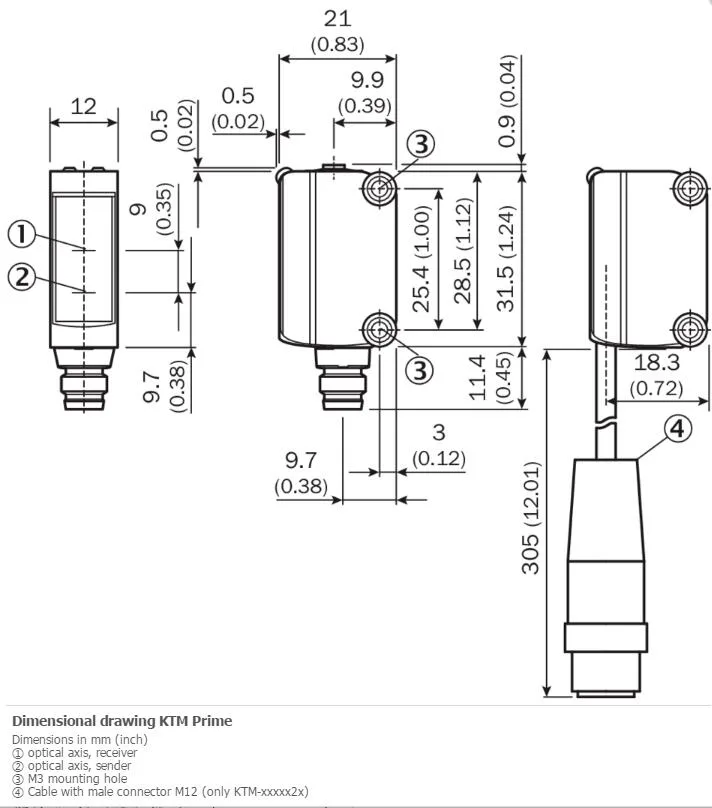

- Compact 12 mm x 31.5 mm x 21 mm ABS body fits tight spaces
Industrial contrast sensor

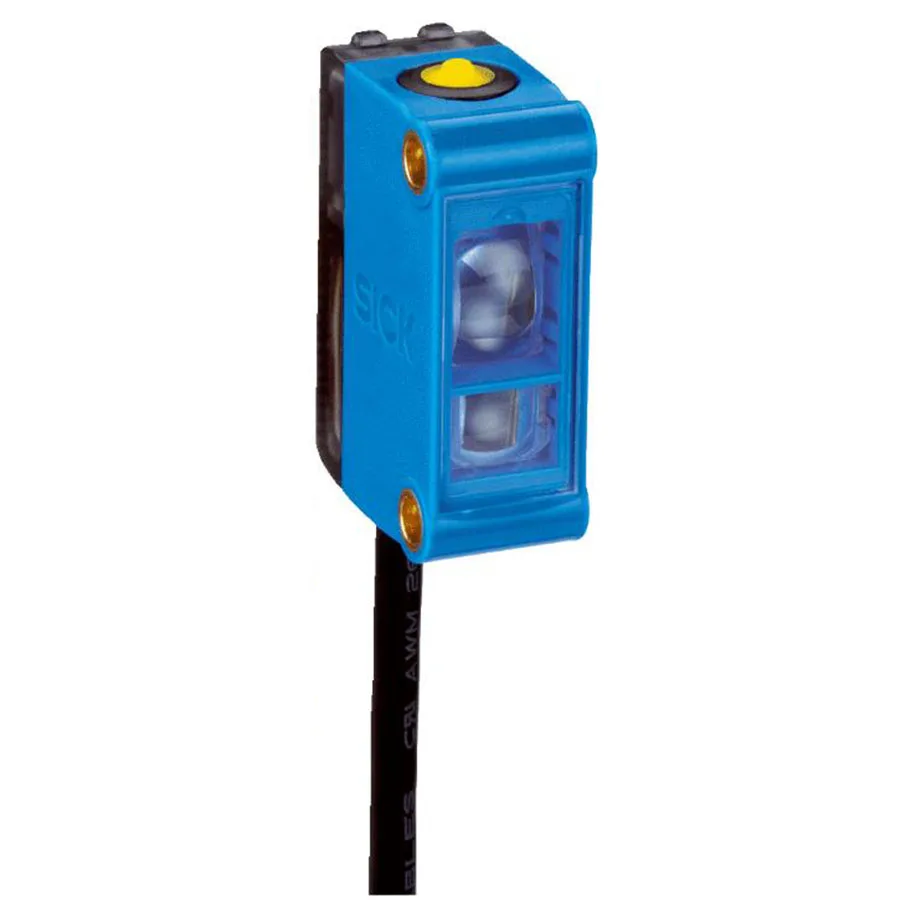

The Sick KTM-WN11182P is a rectangular photoelectric sensor designed for detecting contrast marks on high-speed production lines. It operates on a 12 V DC to 24 V DC supply and draws less than 50 mA. The IP67-rated ABS housing measures 12 mm by 31.5 mm by 21 mm and weighs 70 g, making it suitable for confined mounting spaces in packaging or printing machinery.
RGB LED with teach-in
An integrated RGB LED emits at 470 nm, 525 nm and 625 nm, creating a 1.5 mm by 6.5 mm vertical light spot at a 12.5 mm sensing distance with ± 3 mm tolerance. A teach-in button supports 2-point static or dynamic teaching plus proximity-to-mark mode, while a dynamic teach input (ET) accepts NPN logic below 2 V. Settings are retained in non-volatile memory with a 28 ms retention time.
NPN output and cabling
The sensor provides an NPN light/dark switching output rated at 50 mA maximum with short-circuit protection and reverse polarity protection on supply lines. Switching frequency reaches 15 kHz with a 32 µs response time and 15 µs jitter. Connection is via a 0.2 m cable terminated in a 4-pin M12 male connector; no wireless interface or fieldbus protocol is included.
Highlights
- RGB LED detects colour contrast at 12.5 mm
- 15 kHz switching speed enables fast line tracking
- Teach-in button sets light/dark switching in seconds
- IP67 housing resists dust and water ingress
- Compact 12 mm x 31.5 mm x 21 mm ABS body fits tight spaces
Specifications
| Brand | SICK |
|---|---|
| Model | SICK KTM-WN11182P |
Questions about this item
How often will the RGB LED light source need replacement during continuous operation?
The RGB LED light source is integrated into the sensor housing and is not designed for user replacement; the unit is sealed to IP67 for maintenance-free service life.
At the 15 kHz switching frequency, what thermal limit appears first during sustained high-speed sensing?
The sensor draws under 50 mA from a 12–24 V DC supply with built-in short-circuit and reverse-polarity protection, so self-heating stays low even at maximum switching speed.
Does the IP67-rated ABS housing stay cool and quiet when powered all day?
With power consumption below 50 mA and no moving parts, the 70 g ABS housing generates minimal heat and operates silently in continuous duty.
