Sick IMF18-08BNSVC0S M18 Inductive Sensor NPN NO 8mm Flush IP68 IP69K Stainless Steel
M18 inductive proximity sensor detects metal at 8 mm flush range, NPN normally-open output, IP68 and IP69K rated stainless-steel housing
- 8 mm flush sensing range for reliable detection
- IP68 and IP69K ratings withstand high-pressure washdowns
- Stainless steel V4A housing resists corrosion in harsh environments
- 1,500 Hz switching frequency supports fast automation cycles
- 10–30 V DC supply with short-circuit protection ensures stable operation
M18 inductive sensor for industrial automation
The Sick IMF18-08BNSVC0S is a cylindrical M18 x 1 thread sensor with an 8 mm flush sensing range. It operates on 10 V DC to 30 V DC supply voltage with NPN normally open output. The stainless steel V4A housing suits harsh industrial environments requiring reliable metal detection.
IP68 IP69K enclosure handles washdown and immersion
The sensor meets IP68 and IP69K enclosure ratings for high-pressure cleaning and temporary immersion. Operating temperature spans –40 °C to +80 °C with 30 g shock and 10 Hz to 55 Hz vibration resistance. Current consumption is 15 mA with 200 mA continuous output current and built-in short-circuit protection.
M12 4-pin connector simplifies installation

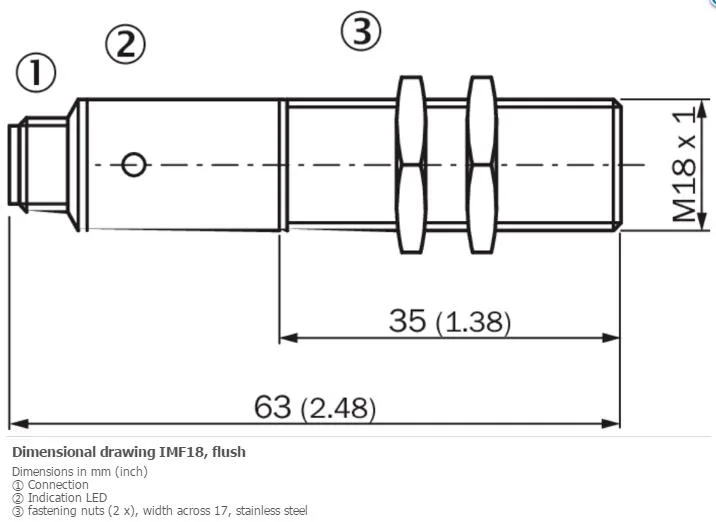

A male M12 4-pin connector provides standard DC 3-wire electrical wiring for quick integration. The 63 mm housing length with 35 mm thread length allows secure mounting at 50 Nm maximum tightening torque. Switching frequency reaches 1,500 Hz with approximately 50 ms power-up delay for responsive detection cycles.
Highlights
- 8 mm flush sensing range for reliable detection
- IP68 and IP69K ratings withstand high-pressure washdowns
- Stainless steel V4A housing resists corrosion in harsh environments
- 1,500 Hz switching frequency supports fast automation cycles
- 10–30 V DC supply with short-circuit protection ensures stable operation
Specifications
| Brand | Sick |
|---|---|
| Model | SICK IMF18-08BNSVC0S |
Questions about this item
How do I install the M18 flush sensor and what tightening torque should I not exceed?
Screw the M18 x 1 thread into a prepared hole until the 35 mm thread length seats flush, then torque to a maximum of 50 Nm using a suitable wrench.
What maintenance or replacement will the stainless steel V4A housing and PPS sensing face need over time?
The IP68 and IP69K ratings allow high-pressure washdowns; inspect the PPS sensing face periodically for abrasion or chemical damage and replace the sensor if the 8 mm sensing range drifts beyond the 6.48 mm safe range.
At what continuous current does the short-circuit protection activate during sustained operation?
The output is rated for a continuous current of 200 mA; the built-in short-circuit protection trips if this limit is exceeded, preventing damage during prolonged use.
